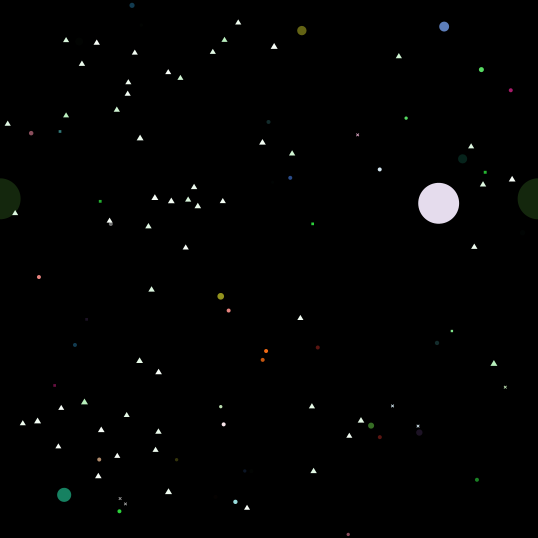

Energy flow preview image

1 collaborator

Default-person Caius Gibeily (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.4.0 • Viewed 15 times • Downloaded 1 time • Run 0 times
Download the 'Energy flow' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

(a general understanding of what the model is trying to show or explain)

HOW IT WORKS

(what rules the agents use to create the overall behavior of the model)

HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

CREDITS AND REFERENCES

(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [lconsumers lconsumer]
breed [dconsumers dconsumer]
breed [plants plant]
lconsumers-own [
  energy
  pursuit?
  age
  max-lifespan
]

dconsumers-own [
  d-energy
  decay-time
]

plants-own [
  growth-rate
  plant-energy
]

patches-own [dead-energy]

;;;;;;;;;;;;;;;;;;;;;
;;; SETUP
;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all

  set-default-shape lconsumers "circle"
  set-default-shape dconsumers "x"
  set-default-shape plants "triangle"

  create-lconsumers num-consumers [
    set-random-color-nonblack
    set size 3
    setxy random-xcor random-ycor
    set max-lifespan 30000 + random (30000 - 10)
    set energy size
  ]

  create-plants 50 [
    set color 60
    set size 1
    setxy random-xcor random-ycor
    set growth-rate random-float 1
    set plant-energy 0.5
  ]

  reset-ticks
end

to set-random-color-nonblack
  let c random 140
  while [c = black] [ set c random 140 ]
  set color c
end
;;;;;;;;;;;;;;;;;;;;;
;;; MAIN LOOP
;;;;;;;;;;;;;;;;;;;;;

to go
  ask lconsumers [
    ageing
    pursue
    eat
    check-overlaps
    if age > max-lifespan [ killconsumer ]

    ]

  ask plants [
    grow
    mature
  ]

  ask dconsumers [
    decay
  ]

  replenish-plants
  replenish-consumers

  ;; plot total energy
  set-current-plot "Total Energy"
  set-current-plot-pen "energy"
  plot sum [energy] of lconsumers

  tick
end

to check-overlaps
  ;; only for lconsumers
  if breed = lconsumers [
    let opponent one-of other lconsumers with [
      distance myself < ((size + [size] of myself) / 2)
    ]
    if opponent != nobody [
      fight opponent
    ]
  ]
end
;;;;;;;;;;;;;;;;;;;;;
;;; MOVEMENT
;;;;;;;;;;;;;;;;;;;;;

to bounce
  if xcor >= max-pxcor [
    set heading 180 - heading
    set xcor max-pxcor - 3
  ]
  if xcor <= min-pxcor [
    set heading 180 - heading
    set xcor min-pxcor + 3
  ]
  if ycor >= max-pycor [
    set heading 360 - heading
    set ycor max-pycor - 3
  ]
  if ycor <= min-pycor [
    set heading 360 - heading
    set ycor min-pycor + 3
  ]
end

to turn-towards [target max-turn]
  if target != self [   ;; prevent self-targeting
    let angle subtract-headings (towards target) heading
    if abs angle < max-turn [
      set heading heading + angle
    ]
    if abs angle >= max-turn [
      ifelse angle > 0 [ rt max-turn ] [ lt max-turn ]
    ]
  ]
end

to smooth-wiggle
  rt random-normal 0 10
  fd 0.5 + random-float 0.5
end

;;;;;;;;;;;;;;;;;;;;;
;;; PLANTS
;;;;;;;;;;;;;;;;;;;;;

to grow
  if size <= 5 [
    set size size + growth-rate
    set plant-energy size / 10
  ]
end

to mature
  if 60 + size * 2 <= 69.9 [
    set color 60 + size * 2
  ]
end

to replenish-plants
  if count plants < 50 [
    create-plants production-rate [
      set color 60
      set size 1
      setxy random-xcor random-ycor
      set growth-rate random-float 1
      set plant-energy 0.5
    ]
  ]
end

;;;;;;;;;;;;;;;;;;;;;
;;; CONSUMERS
;;;;;;;;;;;;;;;;;;;;;

to replenish-consumers
  if count lconsumers < num-consumers [
    create-lconsumers num-consumers - count lconsumers [
      set color random 140
      set size 3
      setxy random-xcor random-ycor
      set max-lifespan 10000 + random (10000 - 10)
      set energy size / 2
    ]
  ]
end

to ageing
  set age age + 1
end

to decay
  set decay-time decay-time + 1
  if decay-time > 3000 + random (3000 - 1000) [ die ]
end

to pursue
  ifelse any? other turtles in-radius radius [

    let most-energetic-dead max-one-of dconsumers in-radius radius [d-energy]
    let most-energetic-alive max-one-of other lconsumers in-radius radius [energy]
    let most-energetic-plant max-one-of plants in-radius radius [plant-energy]

    ifelse (most-energetic-dead != nobody) [
      turn-towards most-energetic-dead 5
      fd 0.5 + random-float 0.5
    ]
    [ ifelse (most-energetic-plant != nobody) [
        turn-towards most-energetic-plant 5
        fd 0.5 + random-float 0.5
      ]
      [ ifelse (most-energetic-alive != nobody) [
          turn-towards most-energetic-alive 5
          fd 0.5 + random-float 0.5
        ]
        [ smooth-wiggle ]
      ]
    ]
  ]
  [ smooth-wiggle ]
end

;;;;;;;;;;;;;;;;;;;;;
;;; EATING & FIGHTING
;;;;;;;;;;;;;;;;;;;;;

to eat
  let myradius size / 2
  if myradius <= 0
  [set myradius 0.1]
  let neighbour min-one-of other turtles in-radius myradius [distance myself]

  if neighbour != nobody and distance neighbour <= (size / 2) [
    let b [breed] of neighbour
    if b = lconsumers [ fight neighbour ]
    if b = dconsumers [ nibble-dead neighbour ]
    if b = plants     [ nibble-plant neighbour ]
  ]
end

to nibble-plant [food]
  let bite-size 0.5
  if [plant-energy] of food > 0 [
    set energy energy + bite-size * energy-ratio
    ask food [
      set plant-energy plant-energy - bite-size
      set size plant-energy * 10   ;; size reflects remaining energy
      if plant-energy <= 0 [ die ]
    ]
      ifelse energy <= 60
  [set size energy]
    [set size 60 + (energy - 60) * 0.1]
  ]
end

to nibble-dead [corpse]
  ;; transfer *all* the corpse's energy to eater
  let gain [d-energy] of corpse
  set energy energy + (gain * energy-ratio)
  ifelse energy <= 60
  [set size energy]
  [set size 60 + (energy - 60) * 0.1]


  ;; remove the corpse
  ask corpse [ die ]
end

to fight [opponent]
  let other-size [size] of opponent
  let death-prob (other-size / (size + other-size))
  ifelse random-float 1 < death-prob [
    killconsumer
  ] [
    ask opponent [ killconsumer ]
  ]
end

to killconsumer
  ask patches in-radius 30 [
    set dead-energy [energy] of myself
  ]

  let remaining-energy [dead-energy] of patch-here
  let nspawn (floor remaining-energy / 3)
  hatch-dconsumers nspawn [
    move-to one-of patches in-radius 15
    set d-energy (remaining-energy / nspawn ) * energy-ratio
    set size 3
  ]

  ask patches in-radius 30 [ set dead-energy 0 ]
  die
end
