WHAT IS IT?

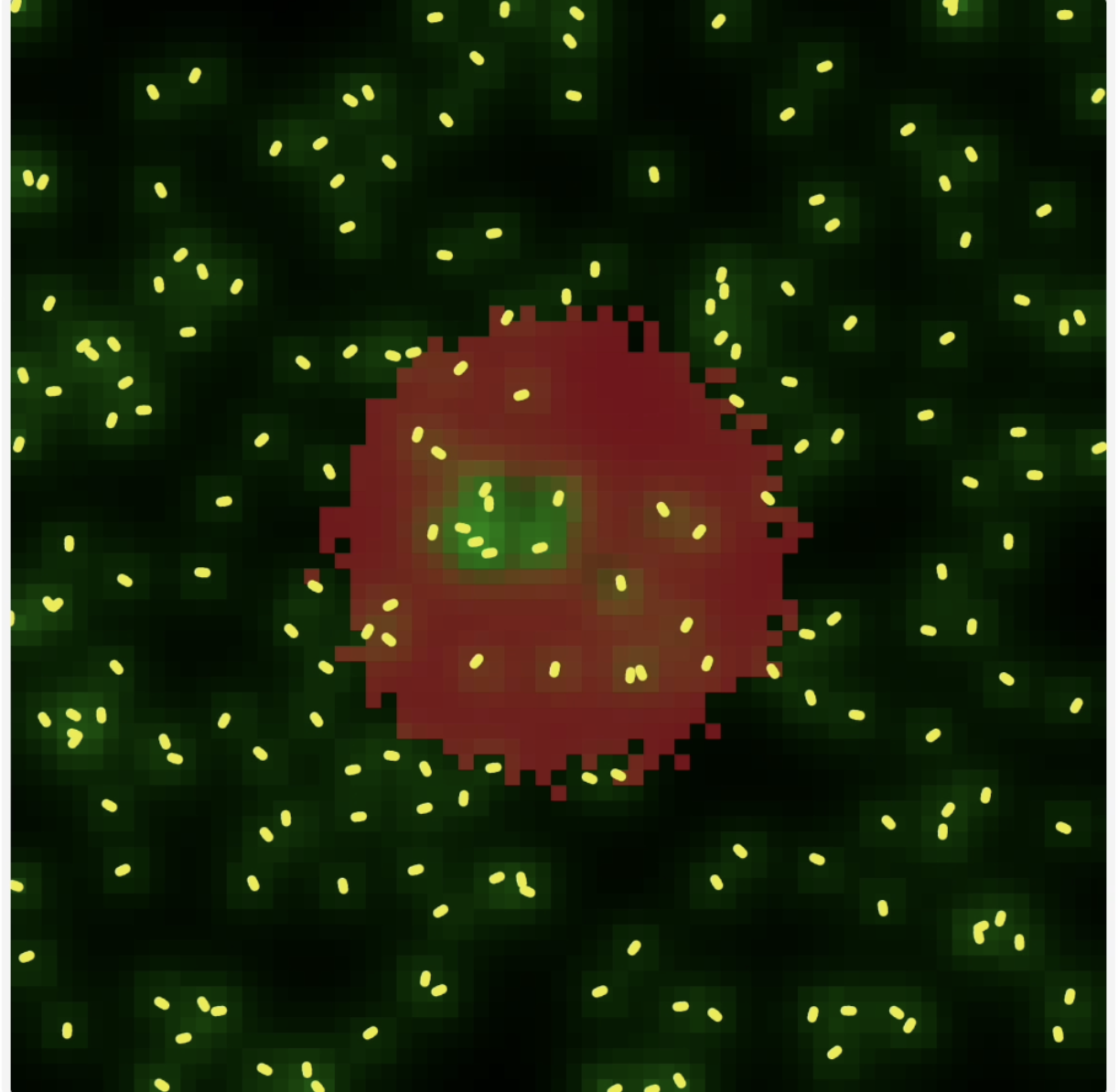

This model simulates a bacterial community defending a plant root (or soil patch) against a localized Phytophthora infection. Each bacterium implements an intracellular AND gate that requires Elicitin (a pathogen-derived cue) and ROS (reactive oxygen species, amplified by β-glucan fragments) to switch into an ON state and boost antimicrobial peptide (AMP) secretion. Although each cell follows simple rules, their interaction with transport, moisture (dehydration), and pathogen dynamics yields rich, spatially focused defense.

HOW IT WORKS

Signals & logic: patches track fields for elicitin, ROS, and glucan fragments. Turtles (bacteria) read local elicitin and ROS and compute Hill responses; the intracellular AND combines them. With leak and gain, mRNA (m) and protein (y) follow first-order dynamics. A bacterium turns ON when y ≥ y-threshold (with a small probabilistic bias toward the infection center). Secretion (two-phase): Baseline containment: low AMP background exists when no pathogen is present via periodic randomized activity. Invasion boost: if pathogen is present and a cell is ON, it secretes q + qboost, distance-weighted to focus secretion near the infection. Transport & environment: dehydration (0–1) jointly controls diffusion-rate and evaporation-rate (computed from min/max bounds) and attenuates transcriptional gain (proxy for stress). Wet = broader, persistent AMP halos; dry = tighter, quickly cleared halos. Pathogen dynamics: the Phytophthora “blob” is a noisy disk with user-set radius/biomass. It decays naturally and is killed sigmoidally by AMP (MIC-like scale; capped fractional kill per tick). Elicitin is produced by pathogen; glucan is released where AMP meets pathogen; ROS accumulates from AMP contact, pathogen stress, and glucan amplification, then decays. Protection metric: the model tracks the protected area (patches with AMP >= Ceff) and records time-to-protection when a target area is first achieved. Kill switch (optional): a global toxin can be injected; turtles on patches with toxin >= lethal-dose die immediately.

HOW TO USE IT

SETUP initializes bacteria, signal fields, and a noisy Phytophthora blob centered in the world. GO runs the simulation. Key controls: POPULATION: number of bacteria created at setup. PHYTO-SIZE: scales blob radius and initial biomass. DEHYDRATION (0–1): sets environmental stress and implicitly sets diffusion-rate and evaporation-rate each tick. SECRETION?: toggle secretion logic. PLOT?: toggle plotting. KILL-SWITCH button: injects toxin-dose everywhere; turtles die if local toxin >= lethal-dose

THINGS TO NOTICE

Focused response: AMP halos concentrate near the infection center due to distance-weighted boosting and probabilistic ON bias; pathogen-free regions remain mostly quiet. Moisture shaping: lower dehydration (moisture) broadens and sustains halos; higher dehydration tightens and clears them—yet the AND gate maintains specificity across moderate stress. Switch behavior: activation requires both cues; single-input stimulation should not trigger strong expression. After cues drop, bacteria relax back below threshold.

EXTENDING THE MODEL

Logic variants: replace AND (H1*H2) with NAND or extend to 3-input logic; explore how false positives/negatives change. Population ecology: add bacterial and pathogen replication, resource limits, or taxis. Heterogeneity: give cells diverse thresholds (y-threshold), K values, or secretion rates. Environment: decouple diffusion/evaporation sliders from dehydration; add soil structure,etc. Sensing:modify Hill exponents (n1, n2) or sensitivities (K1, K2); explore robustness plateaus and failure modes. Defense repertoire: vary Ceff, q, qboost, or the distance fall-off to tune focusing.

NETLOGO FEATURES

Uses diffuse for AMP transport and simple per-tick evaporation. Employs patch-local state variables for signals (elicitin, ROS, glucan) and pathogen biomass. Demonstrates probabilistic decisions and ODE-like updates in agent procedures with time-step.

HOW TO CITE

If you mention this model or the NetLogo software in a publication, we ask that you include the citations below.

For the model itself:

  • Pourprix, A. (2025). Agent-based model for AMPs secretion against true Phythopthora infection. DryLab iGEM KU Leuven.

Please cite the NetLogo software as:

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;
; Phytophthora/AMP ABM (AND = Elicitin ∧ ROS)
; Two-phase defense: baseline containment + pathogen-specific amplification
;

patches-own [
  chemical              ; amount of AMP present
  phyto                 ; phyto mass blob
  elicitin              ; pathogen-derived PAMP produced with phyto
  ros                   ; reactive oxygen species (from AMP/phyto/glucans)
  glucan                ; β-1,3/1,6-glucan fragments released upon AMP attack
  toxin                 ; kill switch toxin

]

turtles-own [
  m                     ; mRNA level of the output gene
  y                     ; protein level of the output gene - defines on/off
  on?                   ; if on then secreting amp iif y >= y - threshold
  active?               ; activity sensor when no phyto present
]

globals[
  ; circuit parameters
  time-step
  a0 amax                ; transcription leak & max transcription gain
  beta dm dp             ; translation, mRNA decay, protein decay
  K1 K2 n1 n2            ; Hill parameters: K1/n1 elicitin, K2/n2 for ROS
  y-threshold            ; ON threshold on Y

  ;secretion in two steps
  q                      ; baseline secretion of AMP, alway on if secretion ON
  q_boost                ; extra secretion when AND gate is ON during attack

  ; dehydration (from 0 to 1) which simultaneously reduces diffusion,
  ; increases evaporation, and reduces transcriptional gain (proxy for stress)
  diffusion-rate
  evaporation-rate
  diff-min diff-max
  evap-min evap-max

  ; pathogen (phyto)
  C_eff                    ; AMP level considered effective
  phyto-initial
  phyto-initial-max        ; max value when size is = 1 biomass value in blob
  phyto-kill-rate          ; AMP driven kill rate
  phyto-decay-rate         ; natural decay of pathogen
  phyto-present?           ; true if any phyto remains

  target-protected-area    ; number of patches wanted >= C_eff
  time-to-protection       ; first tick when target is met or -1 if not yet

  phyto-radius-max       ; radius of the blob
  phyto-radius
  blob-roughness           ; 0=perfect disk, >0 adds noisy edge
  rough-min rough-max

  amp-max                  ; scale halo intensity
  amp-max-attack           ; scale halo intensity in phyto presence

  ; inputs
  elicitin-prod              ; production by phyto
  elicitin-decay
  ros-prod-amp            ; ROS made in response to AMP
  ros-prod-phyto          ; ROS from pathogen stress/presence
  ros-prod-glucan         ; ROS amplified by glucan fragments
  ros-decay
  glucan-release-rate     ; fragments released when AMP attacks phyto
  glucan-decay



  chemical-initial
  chemical-add

  reshuffle-period      ; ticks between non active/active random
  next-reshuffle-tick

  ;plotting
  amp-secreted-per-tick
  mean-m mean-y

  ; toxin for kill switch
  toxin-dose         ; uniform toxin level injected on all patches
  lethal-dose        ; threshold above which turtles die instantly

]

to-report hill[ s K n ]
  let denom ((K ^ n) + (s ^ n))
  if denom = 0 [ report 0 ]
  report ((s ^ n) / denom)
end

to seed-phyto-blob
  let cx (min-pxcor + max-pxcor) / 2
  let cy (min-pycor + max-pycor) / 2
  ;; noisy disk include patch if distance < noisy radius
  ask patches [
    set phyto 0
    let d distancexy cx cy
    ;; noise multiplies the radius by a factor in [1 - blob-roughness, 1 + blob-roughness]
    let jitter (1 + blob-roughness * (random-float 2 - 1))
    if d <= phyto-radius * jitter [
      set phyto phyto-initial
    ]
  ]
end

to setup
  clear-all
  set-default-shape turtles "rod2"

  set time-step 1
  set reshuffle-period 30
  set next-reshuffle-tick reshuffle-period

  set a0 0.8
  set amax 1.2
  set beta 0.5
  set dm 0.10
  set dp 0.02
  set K1 0.5
  set K2 0.8
  set n1 2.0
  set n2 2.0
  set y-threshold 2
  set q 0.2
  set q_boost 0.8
  set C_eff 0.3
  set phyto-initial-max 1.0
  set phyto-radius-max 15
  set phyto-radius   (phyto-size * phyto-radius-max)
  set phyto-initial  (phyto-size * phyto-initial-max)
  set phyto-kill-rate 0.4
  set phyto-decay-rate 0
  set target-protected-area 200
  set chemical-initial 0.0
  set chemical-add 0.0

  ; dehydration set in slider derives diffusion and evaporation
  set diff-min 10      ; lowest diffusion when very dry
  set diff-max 95      ; highest diffusion when very wet
  set evap-min 5       ; lowest evaporation when very wet
  set evap-max 80      ; highest evaporation when very dry

  ; from current dehydration slider
  set diffusion-rate   (diff-max - (diff-max - diff-min) * dehydration)
  set evaporation-rate (evap-min + (evap-max - evap-min) * dehydration)

  set amp-max 0.5
  set amp-max-attack 1.5

  set elicitin-prod    0.02
  set elicitin-decay 0.0005
  set ros-prod-amp    0.05
  set ros-prod-phyto   0.02
  set ros-prod-glucan 0.06
  set ros-decay 0.10
  set glucan-release-rate  0.04
  set glucan-decay 0.01


  set toxin-dose      1.0
  set lethal-dose     0.5


  ask patches [
    set chemical chemical-initial
    set phyto 0
    set elicitin 0
    set ros 0
    set glucan 0
     set toxin 0
    set pcolor black
  ]

  set time-to-protection -1

  set rough-min 0.00    ; more compact when wet
  set rough-max 1    ; drying means rougher
  set blob-roughness (rough-min + (rough-max - rough-min) * dehydration)

  seed-phyto-blob

  ; bacteria is randomly scattered
  create-turtles population [
    setxy random-xcor random-ycor
    set size 2
    set m 0
    set y random-float 1
    set on? false
    set active? false
    ; initial color while pathogen exists = OFF > orange
    set color orange
  ]


  set phyto-present? any? patches with [ phyto > 0.0001 ]
  ask patches [
    ifelse phyto > 0 and phyto-initial > 0
      [ let b min list 1 (phyto / phyto-initial)
        set pcolor rgb round (120 * b) round (30 * b) round (25 * b) ]
    [ set pcolor black ]
  ]


  ; each turtle has a 50% chance of being active at start when no phyto present
  if not phyto-present? [
    ask turtles [ set active? (random-float 1 < 0.5) ]
  ]

  if plot? [
    clear-all-plots
  ]

  reset-ticks
end

;;;;;;;;;;;;;;;;;;;;;
;;; Go procedures ;;;
;;;;;;;;;;;;;;;;;;;;;

to go  ; forever button

  set phyto-present? any? patches with [ phyto > 0.0001 ]

  set amp-secreted-per-tick 0

  if not phyto-present? [
    if ticks >= next-reshuffle-tick [
      ask turtles [ set active? (random-float 1 < 0.5) ]
      set next-reshuffle-tick ticks + reshuffle-period
    ]
  ]

  ask turtles [ cell-step ]

  ; update each tick so can see changes without resetting
  set diffusion-rate   (diff-max - (diff-max - diff-min) * dehydration)
  set evaporation-rate (evap-min + (evap-max - evap-min) * dehydration)

  ; global background AMP injection
  if chemical-add > 0 [
    ask patches [ set chemical chemical + chemical-add * time-step ]
  ]

  ; dehydration reduces diffusion, increases evaporation
  ; use the dehydration-derived rates directly
  diffuse chemical (diffusion-rate / 100)

  ask patches [
    set chemical (chemical * (100 - evaporation-rate) / 100)
  ]


  ;   ; AMP-driven kill + natural decay
  ;  ask patches [
  ;    let kill phyto-kill-rate * chemical
  ;    set phyto max list 0 ( phyto - (phyto-decay-rate * phyto + kill) * time-step )
  ;  ]
  ;  ; this method not strong enough too linear, need stringer kill effect for visible results on blob


  ask patches [
    let Hkill ((chemical ^ 3) / ((0.8 ^ 3) + (chemical ^ 3) + 1e-9))  ;; MIC≈0.8, n=3
    let frac-kill 0.25 * Hkill        ;; max 25% of phyto per tick near/above MIC
    let dphyto (phyto-decay-rate * phyto + frac-kill * phyto)
    set phyto max list 0 (phyto - dphyto * time-step)
  ]

  ; input dynamics on patches
  ask patches [
    ;; elicitin from pathogen present?
    set elicitin max list 0 (elicitin
      + elicitin-prod * phyto * time-step
      - elicitin-decay * elicitin * time-step)

    ; glucan fragments released when AMP attacks phyto
    set glucan max list 0 (glucan
      + glucan-release-rate * chemical * phyto * time-step
      - glucan-decay * glucan * time-step)

    ; ROS from AMP, pathogen stress, and glucan-augmented signaling
    let amp_ros_term (ifelse-value (phyto > 1e-6) [ ros-prod-amp * chemical ] [ 0 ])
    set ros max list 0 (ros
      + (amp_ros_term + ros-prod-phyto * phyto + ros-prod-glucan * glucan) * time-step
      - ros-decay * ros * time-step)
  ]

  ; any phyto remains?
  set phyto-present? any? patches with [ phyto > 0.0001 ]


  ; plots
  let turtle-count count turtles
  let frac_on (ifelse-value (turtle-count = 0) [0]
    [ (count turtles with [ on? ]) / turtle-count ])
  let frac_active (ifelse-value (turtle-count = 0) [0]
    [ (count turtles with [ active? ]) / turtle-count ])

  let total_amp   sum [ chemical ] of patches
  let total_phyto sum [ phyto ] of patches
  let total_elic  sum [ elicitin ] of patches
  let total_ros   sum [ ros ] of patches
  let total_glu   sum [ glucan ] of patches
  let protected_area count patches with [ chemical >= C_eff ]

  set mean-m (ifelse-value (turtle-count = 0) [0] [ mean [ m ] of turtles ])
  set mean-y (ifelse-value (turtle-count = 0) [0] [ mean [ y ] of turtles ])

  ; capture first time protection target is reached
  if (time-to-protection = -1 and protected_area >= target-protected-area) [
    set time-to-protection ticks
  ]

; update plots
  if plot? [
; 1. Secretion
  set-current-plot "AMP Secretion"
  set-current-plot-pen "secreted"
  plot amp-secreted-per-tick

  ; Population states
  set-current-plot "Population states (on/off)"
  set-current-plot-pen "frac-on"      plot frac_on
  set-current-plot-pen "frac-active"  plot (ifelse-value phyto-present? [0] [frac_active])

  ; Concentrations
  set-current-plot "Field concentrations"
  set-current-plot-pen "AMP"      plot total_amp
  set-current-plot-pen "Phyto"    plot total_phyto
  set-current-plot-pen "Elicitin" plot total_elic
  set-current-plot-pen "ROS"      plot total_ros
  set-current-plot-pen "Glucan"   plot total_glu

  ]

  ;; recolor patches: show Phytophthora when present; otherwise show AMP old code does not work
  ;  ask patches [
  ;    ifelse (phyto > 0)
  ;    [ set pcolor scale-color blue phyto 0 phyto-initial ]
  ;    [ set pcolor scale-color green chemical 0.1 5 ]
  ;  ]
;
;  ask patches [
;    ;;new colouring that works
;    let g round (255 * chemical / amp-max)          ;; AMP intensity (green)
;    let b round (255 * (ifelse-value (phyto-initial > 0) [phyto / phyto-initial] [0]))    ;; Phyto intensity (blue)
;    set g max list 0 (min list 255 g)
;    set b max list 0 (min list 255 b)
;
;    let R 255 - (min list 255 (g + b))   ;; both AMP and Phyto dim red
;    let G2 255 - b                        ;; Phyto dims green
;    let B2 255 - g                        ;; AMP dims blue
;
;    set pcolor rgb R G2 B2
  ;  ]

  ask patches [
    let ampscale (ifelse-value phyto-present?
      [ amp-max-attack ]
      [ amp-max ])
    let ampN  min list 1 ((ifelse-value (ampScale > 0) [ chemical / ampScale ] [ 0 ]) ^ 0.6)
    let phyN  min list 1 (ifelse-value (phyto-initial > 0) [ phyto / phyto-initial ]     [ 0 ])
    let g round (255 * ampN)          ;; AMP contribution (green channel)
    let pR round (120 * phyN)         ;; phyto maroon R
    let pG round ( 30 * phyN)         ;; phyto maroon G
    let pB round ( 25 * phyN)         ;; phyto maroon B
    let R pR
    let G2 pG + g
    let B pB

    set pcolor rgb (max list 0 (min list 255 R))
    (max list 0 (min list 255 G))
    (max list 0 (min list 255 B))
  ]
  tick
end

to cell-step  ; turtle procedure
  ; immediate kill if local toxin >= lethal dose
  if [toxin] of patch-here >= lethal-dose [
    die
    stop
  ]

  ; if no phyto, go into radom ON/OFF = random active?
  if not phyto-present? [
    set on? active?

    if secretion? [
      ask patch-here [
        let q_idle (0.05 * q)                 ; 5% leak when OFF
        let add (ifelse-value [on?] of myself
          [ q * time-step ]               ; ON
          [ q_idle * time-step ])         ; OFF
        set chemical chemical + add
        set amp-secreted-per-tick amp-secreted-per-tick + add
      ]
    ]

    rt (random-float 6 - 3)
    if not can-move? 0.01 [ set heading towardsxy 0 0 ]
    fd 0.01
    ;; simple idle coloring
    set color (ifelse-value on? [cyan] [orange])
    stop
  ]

  ; sense inputs on current patch
  let s_elicitin [elicitin] of patch-here
  let s_ros      [ros]      of patch-here

  ; AND gate & dehydration-attenuated transcription gain
  let H1 hill s_elicitin K1 n1
  let H2 hill s_ros      K2 n2
  let gE (0.6 + (1.0 - 0.6) * (1 - dehydration))  ; moisture effect on expression gain: drier -> smaller gE, dehydration = 0 then gE=1.0

  ; ODE tau-leap with tiny uniform noise = adding noise, stochastic gene expression
  let dm_dt ((a0 * gE) + (amax * gE *  (H1 * H2))) - ((dm + 0.01) * m)
  ; F(H1,H2) = H1*H2 -> AND, if we want NAND -> change to  F(H1,H2) = 1 - (H1*H2)
  let dY_dt ((beta * m)) - ((dp + 0.01) * y)

  set m max (list 0 (m + dm_dt * time-step + (random-float 0.2 - 0.1)))
  set y max (list 0 (y + dY_dt * time-step + (random-float 0.2 - 0.1)))

 ; set on? (y >= y-threshold)   ;; ON/OFF decision OLD

  ; new
  ; probabilistic ON: quicker near the blob, slower farther away
  ifelse( y < y-threshold) [
    set on? false]
  [
    ;; p = exp(-d/6) with 0.1 floor; near center p≈1, far away p→0.1
    let d distancexy ((min-pxcor + max-pxcor) / 2) ((min-pycor + max-pycor) / 2)
    let p max list 0.1 (exp (- d / 6))
    if random-float 1 < p [ set on? true ]
  ]


;  ;; two-phase secretion: baseline containment always; boost only if AND is ON and invasion persists OLD
;  if secretion? [
;    ask patch-here [
;      let add (q * time-step)
;      if [on?] of myself and [phyto-present?] of myself [
;        set add add  + ( q_boost * time-step)
;      ]
;      set chemical chemical + add
;      set amp-secreted-per-tick amp-secreted-per-tick + add
;    ]
;  ]

  ;new
  if secretion? [
    if phyto-present? [
      ; distance-weighted secretion only during invasion
      let d distancexy ((min-pxcor + max-pxcor) / 2) ((min-pycor + max-pycor) / 2)
      let scale max list 0.15 (exp (- d / 6))   ;; stronger falloff; 0.05 floor
      ask patch-here [
        ; OFF = no baseline during invasion; ON = baseline + boost, both scaled
        let add (ifelse-value [on?] of myself
          [ (q * scale + q_boost * scale) * time-step ]
          [ 0 ])
        set chemical chemical + add
        set amp-secreted-per-tick amp-secreted-per-tick + add
      ]
    ]
  ]


  ; gentle wobble and inwards push
  rt (random-float 6 - 3) ;; uniform wobble
  if not can-move? 0.01 [ set heading towardsxy 0 0 ]
  fd 0.01

  ifelse on? [ set color orange ] [ set color cyan ]
  ; COLOURS:
  ; phyto present: ON: yellow, OFF: red
  ; phyto cleared: mission complete: cyan
  ifelse phyto-present? [
    ifelse on?
    [ set color yellow]   ; ON & pathogen present
    [ set color orange ]      ; OFF & pathogen present
  ] [
    set color cyan          ; pathogen cleared  mission complete
  ]
end

to kill-switch
  ; inject lethal toxin
  ask patches [ set toxin toxin-dose ]
end

There is only one version of this model, created 1 day ago by Agathe Pourprix.

Attached files

File Type Description Last updated
Agent-based model: AND logic gate for AMP secretion.png preview Preview for 'Agent-based model: AND logic gate for AMP secretion' 1 day ago, by Agathe Pourprix Download

This model does not have any ancestors.

This model does not have any descendants.
