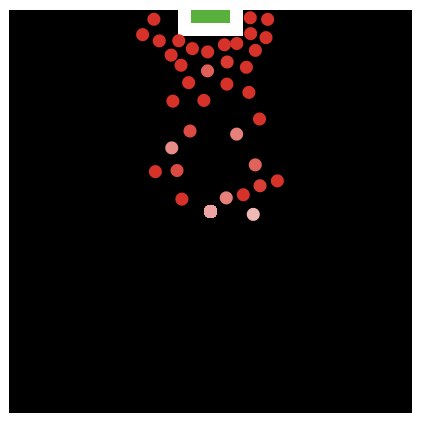

Waiting Bar Customers preview image

1 collaborator

Default-person wesley sun (Author)

Tags

(This model has yet to be categorized with any tags)
Parent of 1 model: Child of Waiting Bar Customers
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.0.4 • Viewed 989 times • Downloaded 98 times • Run 0 times
Download the 'Waiting Bar Customers' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This is a model that simulates a crowded bar where the turtles are the patrons of the bar. The key concept of this model is that the turtles have different amounts of pushiness, some are inherently pushier than others. Turtles can also become pushier if they've waited a while to get their drink, or they can become pushier the more drinks they have.

The point of the model is to see how this distribution of pushiness affects the average wait times of the turtles trying to get drinks. It looks at that average wait as a whole in addition to looking at the average wait times of turtles with a specific range of pushiness values.

HOW IT WORKS

The model's core is based on D. Helbing and P. Molnar's social forces model. Each turtle has a force that tends towards the bartender (goal/green patches), a force that repels from the walls (white patches), and a force that repels from other turtles. The force from other turtles is reduced if they are not in the field of view.

Once every few ticks a turtle becomes thirsty and will start wandering to the bar counter. Likewise, every few ticks the bartender (one of the green patches) will choose a turtle near the counter to serve a drink to. The bartender can either do this randomly or in order of who was waiting the longest.

After a turtle gets a drink, it returns to where it was created and waits until it becomes thirsty again.

HOW TO USE IT

Unless you have read Helbing and Molnar's paper on the social forces model and want to try playing with the variables under "Force Constants", I suggest that you just play with the variables on the left column first.

Just set the variables to what you want them to be, hit setup, then go.

Explanation of variables:

  • patrons, number of turtles to create
  • lower-pushiness, the smallest base-pushiness value a turtle can have
  • upper-pushiness, the biggest base-pushiness value a turtle can have
  • mean-time-between-arrivals, the average number of ticks between turtles getting thirsty
  • field-of-view, the field of view of the turtles
  • c, if something is not in the field of view, the percentage that its corresponding force is reduced to
  • max-speed, the highest step size of the turtles
  • get-impatient?, whether turtles get impatient
  • impatience-rate, how fast turtles get impatiend
  • get-belligerent?, whether turtles get pushier with the number of drinks they've had
  • belligerence-rate, how much each drink contributes to the pushiness of a turtle
  • mean-service-time, the average time it takes for the bartender to serve a turtle
  • service-plan, whether the bartender randomly chooses a turtle or chooses the one thats been waiting the longest to serve
  • v0, corresponds to the V^0 constant in the equation in the report on the model's page
  • sigma, corresponds to the sigma constant in the equation in the report on the model's page
  • u0, corresponds to the U^0 constant in the equation in the report on the model's page
  • r, corresponds to the R constant in the equation in the report on the model's page
  • tau, corresponds to the tau constant in the equation in the report on the model's page

THINGS TO NOTICE

  • Keep a look out for how the turtles move towards the bartender and how they crowd around the counter
  • Watch out for turtles that are deep red and see if they push their way to the counter more easily than other turtles

THINGS TO TRY

  • Try playing with the mean-time-between-arrivals and mean-service-time. What would happen if one is greater than the other? If they are equal?
  • See what playing with the field-of-view would do
  • When you're more comfortable with the model, play around with the variables under "Force Constraints"

EXTENDING THE MODEL

It would be interesting to see how agents who tip well will do when they try to get the bartender's attention in the future. I've also thought of implementing a behavior where turtles "wave" cash to get the bartender's attention. After interviewing some bartenders though, it turns out they don't necessarily get any preferential treatment.

NETLOGO FEATURES

This model keeps track of the different waiting times for agents at each decile by maintaining a list of accumulated values where each item corresponds with a decile. It also has a plot that doesn't plot as a function of time so you should check that out.

CREDITS AND REFERENCES

Modeling Commons URL This model is based on the social forces model

Comments and Questions

Escape Panic Netlogo Model

I wish to know if there is a model of "Simulating Dynamical Features of Escape Panic" (http://arxiv.org/pdf/cond-mat/0009448.pdf) available in NetLogo.

Posted almost 11 years ago

Click to Run Model

turtles-own
[
  thirsty?          ;; am i thirsty?
  start-of-thirst   ;; when did i start getting thirsty?
  drinks-had        ;; the number of drinks i've had
  base-pushiness    ;; the pushiness i am born with
  pushiness         ;; how pushy i am at the moment
  vx                ;; x velocity
  vy                ;; y velocity
  desired-direction ;; my desired direction
  driving-forcex    ;; my main motivating force
  driving-forcey
  obstacle-forcex   ;; force exerted by obstacles
  obstacle-forcey
  territorial-forcex;; force exerted by neighbors
  territorial-forcey
]

globals
[
  total-times       ;; a list containing 10 accumulators for total time spent waiting by agents with the nth decile pushiness value
  total-counts      ;; a list containing 10 accumulators for total times agents with the nth decile of pushiness was served
]

;; Set up the view

to setup
  ca
  set-default-shape turtles "circle"
  ;; initialize the globals
  set total-times (list 0 0 0 0 0 0 0 0 0 0)
  set total-counts (list 0 0 0 0 0 0 0 0 0 0)
  ;; create patrons
  create-turtles patrons
  [
    setxy 0 0
    set thirsty? false
    ;; give the turtles an initial nudge towards the goal
    let init-direction -90 + random 180
    set vx sin init-direction
    set vy cos init-direction
    set drinks-had 0
    set base-pushiness (random-float 1) * (upper-pushiness - lower-pushiness) + lower-pushiness
    set pushiness base-pushiness
    color-turtle
  ]
  ;; set boundary patches as walls
  ask patches with [pxcor = min-pxcor or pxcor = max-pxcor or pycor = min-pycor or pycor = max-pycor]
  [ set pcolor white ]

  ;; create the bar counter
  ask patches with [pycor = (max-pycor - 2) and abs pxcor < 3]
  [ set pcolor white ]
  ask patches with [pycor = (max-pycor - 1) and abs pxcor = 2]
  [ set pcolor white ]

  ;; create the goals
  ask patches with [pycor = (max-pycor - 1) and abs pxcor < 2]
  [ set pcolor green ]
  reset-ticks
end

;; run the simulation

to go
  ;; run the social forces model on thirsty turtles
  ;; calculate the forces first...
  ask turtles with [ thirsty? = true ]
  [
    calc-desired-direction
    calc-driving-force
    calc-obstacle-force
    if any? other turtles
      [ calc-territorial-forces ]
  ]
  ;; then move the turtles and have them grow impatient if need be
  ask turtles with [ thirsty? = true ]
  [
    move-turtle
    if get-impatient?
      [ grow-impatient ]
    ;; color the turtle to show how pushy it is
    color-turtle
  ]

  ;; control the arrival of new thirsty turtles
  if any? turtles with [thirsty? = false]
  [ wait-around ]
  ;; control the service rate of bartenders. follow an exponential distribution for service times
  let p 1 / mean-service-time
  if random-float 1 < p
  [
    ask one-of patches with [pcolor = green]
    [ service-patron ]
  ]
  tick
end

;;;; Function for waiting around and other functions ;;;;

;; returns a value from 0-9 which is the decile of pushiness that an agent has

to-report pushiness-index [pushiness-value]
  let p-index floor (((pushiness-value - lower-pushiness) / (upper-pushiness - lower-pushiness)) * 10)
  ifelse p-index = 10 ;; if it's 10, just treat it as 9
  [ report 9 ]
  [ report p-index ]
end

;; "serve" a turtle a drink

to service-patron
  if any? turtles in-radius 2.5
  [
    ;; default to "random" service-plan
    let next-served one-of turtles in-radius 2.5
    if service-plan = "waited-longest"
    [ set next-served max-one-of turtles in-radius 2.5 [  ticks - start-of-thirst ] ]
    ask next-served
    [
      ;; reset the turtle
      setxy 0 0
      set thirsty? false
      let init-direction -90 + random 180
      set vx sin init-direction
      set vy cos init-direction
      set drinks-had drinks-had + 1
      set pushiness base-pushiness
      let p-index pushiness-index pushiness
      ;; increment the corresponding elements in the global arrays to keep track of wait times and service counts
      set total-counts replace-item p-index total-counts ((item p-index total-counts) + 1)
      set total-times replace-item p-index total-times ((item p-index total-times) + (ticks - start-of-thirst))
      if get-belligerent?
      [ set pushiness min (list upper-pushiness (base-pushiness + belligerence-rate * drinks-had)) ]
      color-turtle
    ]
  ]
end
;; get more pushy over time

to grow-impatient
  set pushiness pushiness + impatience-rate
  ;; make sure i'm not too pushy
  set pushiness min list pushiness upper-pushiness
end
;; color a turtle according to its pushiness

to color-turtle
  set color 19 - ((pushiness - lower-pushiness) / (upper-pushiness - lower-pushiness)) * 4
end
;; control when newly thirsty turtles arrive. follow an exponential distribution of inter-arrival times

to wait-around
  let p 1 / mean-time-between-arrivals
  if random-float 1 < p
  [
    ask one-of turtles with [thirsty? = false]
    [
      set thirsty? true
      set start-of-thirst ticks
    ]
  ]
end
;; helper function to find the magnitude of a vector

to-report magnitude [x y]
  report sqrt ((x ^ 2) + (y ^ 2))
end
;; returns 1 if the angle between the desired vector and the force vector is within a threshold, else return c

to-report field-of-view-modifier [desiredx desiredy forcex forcey]
  ifelse (desiredx * (- forcex) + desiredy * (- forcey)) >= (magnitude forcex forcey) * cos (field-of-view / 2)
  [ report 1 ]
  [ report c]
end

;;;; Functions for calculating the social forces ;;;;
;; move the turtle according to the rules of the social forces model

to move-turtle
  let ax driving-forcex + obstacle-forcex + territorial-forcex
  let ay driving-forcey + obstacle-forcey + territorial-forcey

  set vx vx + ax
  set vy vy + ay

  ;; scale down the velocity if it is too high
  let vmag magnitude vx vy
  let multiplier 1
  if vmag > max-speed
  [set multiplier max-speed / vmag]

  set vx vx * multiplier
  set vy vy * multiplier

  set xcor xcor + vx
  set ycor ycor + vy
end
;; find the territorial force according to the social forces model

to calc-territorial-forces
  set territorial-forcex 0
  set territorial-forcey 0
  ask other turtles with [distance myself > 0]
  [
    let to-agent (towards myself) - 180
    let rabx [xcor] of myself - xcor
    let raby [ycor] of myself - ycor
    let speed magnitude vx vy
    let to-root ((magnitude rabx raby) + (magnitude (rabx - (speed * sin desired-direction)) (raby - (speed * cos desired-direction)))) ^ 2 - speed ^ 2
    if to-root < 0
    [set to-root 0]
    let b 0.5 * sqrt to-root

    let agent-force (- v0) * exp (- b / sigma)

    ask myself
    [
      let agent-forcex agent-force * (sin to-agent)
      let agent-forcey agent-force * (cos to-agent)
      ;; modify the effect this force has based on whether or not it is in the field of view
      let vision field-of-view-modifier driving-forcex driving-forcey agent-forcex agent-forcey
      set territorial-forcex territorial-forcex + agent-forcex * vision
      set territorial-forcey territorial-forcey + agent-forcey * vision
    ]
  ]
end
;; find the obstacle force of the turtle according to the social forces model

to calc-obstacle-force
  set obstacle-forcex 0
  set obstacle-forcey 0
  ask patches with [pcolor = white]
  [
    let to-obstacle (towards myself) - 180
    let obstacle-force (- u0) * exp (- (distance myself) / r)
    ask myself
    [
     set obstacle-forcex obstacle-forcex + obstacle-force * (sin to-obstacle)
     set obstacle-forcey obstacle-forcey + obstacle-force * (cos to-obstacle)
    ]
  ]
end
;; find the driving force of the turtle

to calc-driving-force
  set driving-forcex (1 / tau) * (max-speed * (sin desired-direction) - vx) * pushiness
  set driving-forcey (1 / tau) * (max-speed * (cos desired-direction) - vy) * pushiness
end

;; find the heading towards the nearest goal

to calc-desired-direction
  let goal min-one-of (patches with [pcolor = green]) [ distance myself ]
  set desired-direction towards goal
end

There are 6 versions of this model.

Uploaded by When Description Download
wesley sun about 12 years ago added a few comments to the code Download this version
wesley sun about 12 years ago Updated the info tab Download this version
wesley sun about 12 years ago Final version Download this version
wesley sun about 12 years ago implemented most of social forces code Download this version
wesley sun over 12 years ago borrowed some flocking code to simulate the bar patrons Download this version
wesley sun over 12 years ago Initial upload Download this version

Attached files

File Type Description Last updated
5-19-13_progress.docx word Progress Report over 12 years ago, by wesley sun Download
5-27_progress.docx word Progress Report over 12 years ago, by wesley sun Download
6-3_progress.docx word Progress Report about 12 years ago, by wesley sun Download
EECS 472 Slam Slides - Wesley Sun.pptx powerpoint poster slam slides about 12 years ago, by wesley sun Download
Pushy Jerks.pdf pdf Project Poster about 12 years ago, by wesley sun Download
Waiting Bar Customers.png preview model preview about 12 years ago, by wesley sun Download
WesleySun_FinalPaper.docx word final project paper about 12 years ago, by wesley sun Download
WesleySun_May13.docx word Progress Report over 12 years ago, by wesley sun Download

This model does not have any ancestors.

Children:

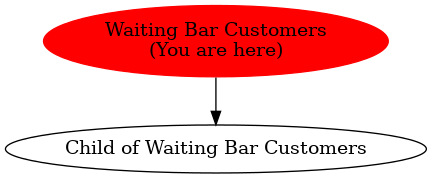

Graph of models related to 'Waiting Bar Customers'
