AnimDens NetLogo

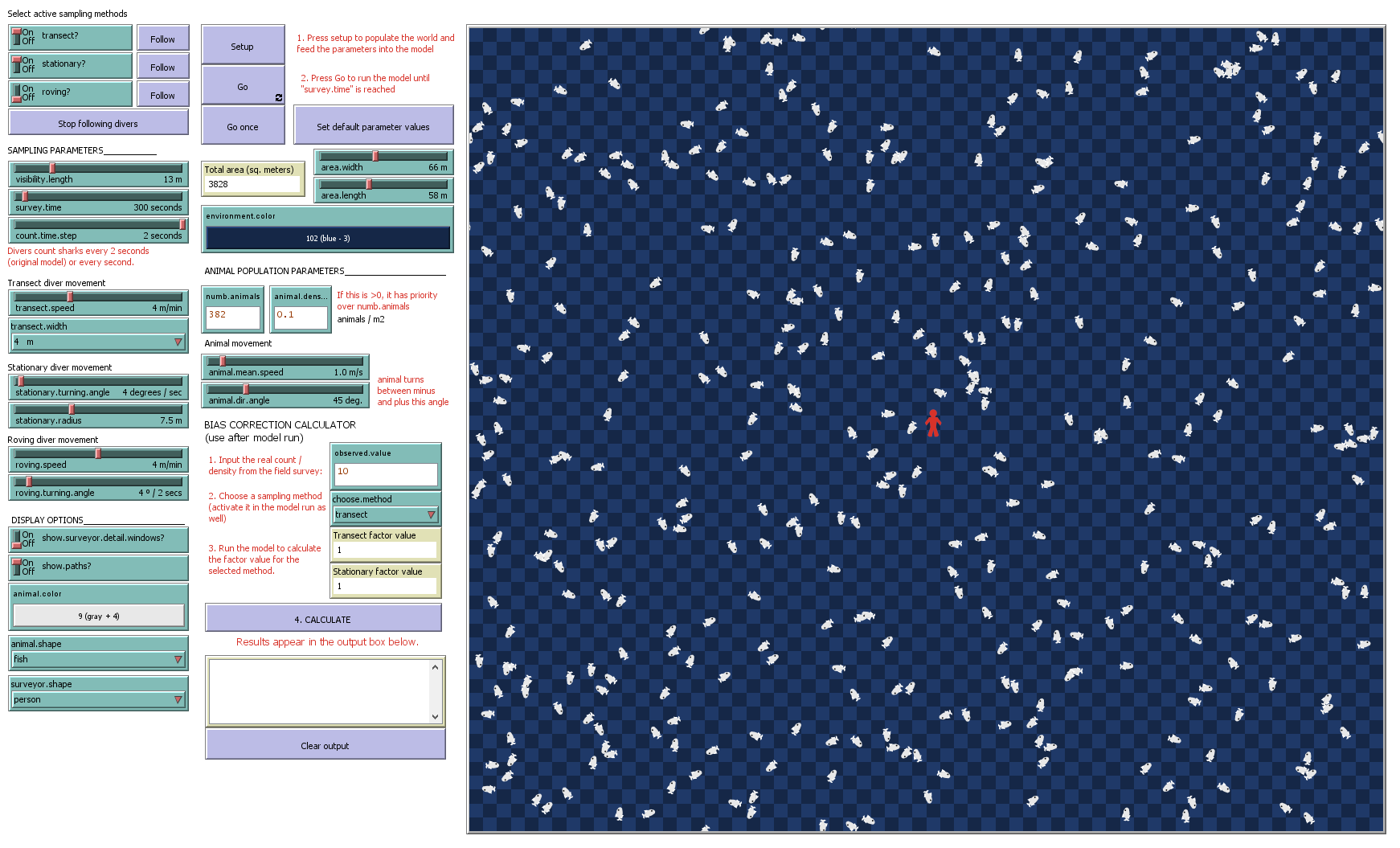

AnimDens NetLogo preview image

1 collaborator

Elphinstone_se_040 Miguel Pais (Author)

Tags

bias estimation

Tagged by Miguel Pais almost 4 years ago

biology

Tagged by Miguel Pais almost 4 years ago

ecology

Tagged by Miguel Pais almost 4 years ago

ecosystem

Tagged by Miguel Pais almost 4 years ago

fish

Tagged by Miguel Pais almost 4 years ago

sampling

Tagged by Miguel Pais almost 4 years ago

underwater visual census

Tagged by Miguel Pais almost 4 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0 • Viewed 503 times • Downloaded 28 times • Run 0 times
Download the 'AnimDens NetLogo' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;AnimDens Model

;Original model implemented in R by Christine Ward-Paige et al.

;Adapted and implemented in NetLogo by Miguel Pessanha Pais


;FOR MORE INFORMATION, LOOK IN THE INFO TAB



;Global variables not represented in the main screen


globals[
  actual.area
  trans.viewangle
  stat.viewangle
  rov.viewangle
  transect.mean.speed
  roving.mean.speed
  transect.area
  stationary.area
]

;Agent types


breed [animals animal]

breed [transsurveyors transsurveyor] ;belt transect surveyor


breed [statsurveyors statsurveyor] ;stationary point count surveyor


breed [rovsurveyors rovsurveyor] ;roving surveyor     ; roving surveyors can't calculate densities accurately, yet they can estimate speceis richness and frequency of occurence.


;Agent variables


animals-own [
  speed
  species
]

transsurveyors-own [
  counted.animals
  speed
  memory
  t.bias
]


statsurveyors-own [
  counted.animals
  memory
  s.bias
]

rovsurveyors-own [
  counted.animals
  speed
  memory
]

;Setup and go procedures


to setup
  ca
  stop-inspecting-dead-agents                           ; clears surveyor detail windows from previous simulation runs

  resize-world 0 (area.width - 1) 0 (area.length - 1)
  set-patch-size (100 / area.length) * 10
  ask patches with [pycor mod 2 = 0 and pxcor mod 2 = 0] [set pcolor environment.color]   ; create background grid

  ask patches with [pycor mod 2 = 1 and pxcor mod 2 = 1] [set pcolor environment.color]
  ask patches with [pcolor = black] [set pcolor environment.color + 1]
  set actual.area world-height * world-width
  set trans.viewangle 180
  set stat.viewangle 160
  set rov.viewangle 160
  set transect.mean.speed (transect.speed / 60)  ; these 4 lines just convert interface speeds (in m/min) to m/s

  set roving.mean.speed (roving.speed / 60)

  ; on the original model, the final part of the sampled area of the transect is assumed to be a rectangle (transect.width x visibility.length)


  set transect.area transect.width * (transect.mean.speed * survey.time) + transect.width * visibility.length
  set stationary.area pi * stationary.radius ^ 2

; if animal density is set to some number, then use that to calculate the number of animals to deploy. Otherwise, just use the numb.animals.


  ifelse animal.density != 0 [set numb.animals ceiling actual.area * animal.density] [set animal.density numb.animals / actual.area]

  create-animals numb.animals [
   setxy random-xcor random-ycor
   set color animal.color
   set shape animal.shape
   set size 1
   set species "Sp1"                                          ; There is only one species, but this is what surveyors register and count

   set speed animal.mean.speed
  ]

if transect? [                                         ;transect surveyor setup

  create-transsurveyors 1 [
 set heading 0
 set shape surveyor.shape
 set color blue
 set size 2
 setxy (world-width / 2) (world-height / 2)
 if show.paths? [pen-down]                                                           ;this shows the path of the surveyor

 set speed transect.mean.speed
 set counted.animals [] ; sets counted.animals as an empty list

]
]

if stationary? [                                      ;stationary setup

  create-statsurveyors 1 [
 set heading 0
 set shape surveyor.shape
 set color red
 set size 2
 setxy (world-width / 2) (world-height / 2)
 set counted.animals [] ; sets counted.animals as an empty list

]
]

if roving? [                                          ;roving setup

  create-rovsurveyors 1 [
 set heading 0
 set shape surveyor.shape
 set color green
 set size 2
 setxy (world-width / 2) (world-height / 2)
 if show.paths? [pen-down]                                                           ;this shows the path of the surveyor

 set speed roving.mean.speed
 set counted.animals [] ; sets counted.animals as an empty list

]
]
 ask transsurveyors [                                           ; empty the memory of all surveyors

      set memory []
      ]
 ask statsurveyors [
      set memory []
      ]
 ask rovsurveyors [
      set memory []
    ]
reset-ticks
if show.surveyor.detail.windows? [
  if any? transsurveyors [inspect one-of transsurveyors]         ;here I had to use "if any?" because inspect will return an error if it finds nobody

  if any? statsurveyors [inspect one-of statsurveyors]
  if any? rovsurveyors [inspect one-of rovsurveyors]
]
end  ;of setup procedure


to go
  tick                                      ; time starts at 1 seconds (not 0)

  if ticks > survey.time [
    do.outputs
    stop]                                   ; end the simulation run when survey.time is reached, but include the last tick (if survey.time is 300, stop running at 301)

  if stationary.radius > visibility.length [
   output-print "ERROR: stationary.radius is set to a value greater than visibility.length"              ; if the stationary radius is higher than visibility, stop and output an error description

   output-print "The surveyor will not commit to sampling an area that it will not be able to see"
   output-print "Stopping simulation"
   stop
  ]
  ask transsurveyors [                                ; move the surveyors

   do.tsurveyor.movement
  ]
  ask statsurveyors [
   do.stsurveyor.movement
  ]
  ask rovsurveyors [
    do.rsurveyor.movement
  ]
  ask animals [                                    ; move the animals

    do.animal.movement
  ]
  ifelse count.time.step = 1 [                    ; if count.time.step is 1, ask surveyors to count animals every second

    ask transsurveyors [
     t.count.animals
   ]
    ask statsurveyors [
     s.count.animals
   ]
    ask rovsurveyors [
     r.count.animals
   ]] [                                          ; if count.time.step is not 1 (meaning it is 2), only ask every 2 seconds

   if ticks mod 2 = 0 [
    ask transsurveyors [
     t.count.animals
   ]
    ask statsurveyors [
     s.count.animals
   ]
    ask rovsurveyors [
     r.count.animals
   ]
     ]
   ]
end   ; of go procedure




;Observer procedures


to do.outputs
  ask transsurveyors [
    let real.count length counted.animals
    let expected.count animal.density * transect.area
    set t.bias (real.count - expected.count) / expected.count
    output-type "Transect surveyor bias was " output-print precision t.bias 2           ; outputs bias with 2 decimal places

  ]

 ask statsurveyors [
    let real.count length counted.animals
    let expected.count animal.density * stationary.area
    set s.bias (real.count - expected.count) / expected.count
    output-type "Stationary surveyor bias was " output-print precision s.bias 2
 ]

 ask rovsurveyors [
    let real.count length counted.animals
    output-type "Roving surveyor swam " output-type survey.time * roving.mean.speed output-type "m and counted " output-type real.count output-print " animals"                     ; the roving surveyor only tells how many animals it counted

 ]
end

to calculate.bias
ifelse choose.method = "transect" [
ifelse any? transsurveyors [
output-print "The real value using the transect method is"
output-print precision (observed.value / transect.factor.value) 3]
[output-print "You need to re-run the model with this method enabled"
  stop
]
] [
ifelse any? statsurveyors [
output-print "The real value using the stationary method is"
output-print precision (observed.value / stationary.factor.value) 3
] [
output-print "You need to re-run the model with this method enabled"
stop
]]
end



;animal PROCEDURES



;animal movement


to do.animal.movement
  set heading heading + random-float-between (- animal.dir.angle) animal.dir.angle
  fd speed ; each step is a second, so the speed is basically the distance

end




;SURVEYOR PROCEDURES



;Transect surveyor procedures


to do.tsurveyor.movement
  fd speed ; each step is a second, so the speed is basically the distance

end

to t.count.animals
  let myxcor xcor
  let seen.animals animals in-cone visibility.length trans.viewangle
  let eligible.animals seen.animals with [(xcor > myxcor - (transect.width / 2)) and (xcor < myxcor + (transect.width / 2))]  ; this only works for transects heading north, of course

  let surveyor.memory memory
  let new.animals eligible.animals with [not member? who surveyor.memory] ; only animals that were not previously counted are counted

  if any? new.animals [
    let new.records ([species] of new.animals)
    set counted.animals sentence counted.animals new.records
    set memory sentence memory [who] of new.animals
  ]
end


;Stationary surveyor procedures


to do.stsurveyor.movement
  set heading heading + stationary.turning.angle           ; each second the surveyor rotates "stationary.turning.angle" degrees clockwise

end

to s.count.animals
  let eligible.animals animals in-cone stationary.radius stat.viewangle
  let surveyor.memory memory
  let new.animals eligible.animals with [not member? who surveyor.memory] ;only animals that were not previously counted are counted

  if any? new.animals [
    let new.records ([species] of new.animals)
    set counted.animals sentence counted.animals new.records
    set memory sentence memory [who] of new.animals
  ]
end

;Roving surveyor procedures


to do.rsurveyor.movement
  if ticks mod 2 = 0 [set heading heading + random-float-between (- roving.turning.angle) roving.turning.angle]         ;turn every 2 seconds

  fd speed ; each step is a second, so the speed is basically the distance

end

to r.count.animals
  let eligible.animals animals in-cone visibility.length stat.viewangle
  let surveyor.memory memory
  let new.animals eligible.animals with [not member? who surveyor.memory] ; only animals that were not previously counted are counted

  if any? new.animals [
    let new.records ([species] of new.animals)
    set counted.animals sentence counted.animals new.records
    ; ask new.animals [set color red wait 1 set color gray]   ;for troubleshooting

    set memory sentence memory [who] of new.animals
  ]
end

;reporters


to-report random-float-between [a b]
  report random-float (b - a + 1) + a
end

to-report t.bias-result        ; these reporters are outputs for BehaviourSpace experiments

  report [t.bias] of one-of transsurveyors  ; one-of makes it output a single number instead of a list with one value (a list would be [34] instead of 34)

end

to-report s.bias-result
  report [s.bias] of one-of statsurveyors
end

to-report stationary.factor.value
  report s.bias-result + 1
end

to-report transect.factor.value
  report t.bias-result + 1
end
