Single orbiting body v2

breed [planets planet]
breed [sats sat]
breed [vectors vector]

globals [
  grav-const
  distance-m
  planet-mass-kg
  satellite-mass-kg
  vx-m-s vy-m-s acc-m-s2
  vx vy acc-x acc-y
  m-per-patch
  kinetic-energy
  potential-energy
  check-orbit?
  vector-vectors-scale-factor
]

turtles-own [
  id

]

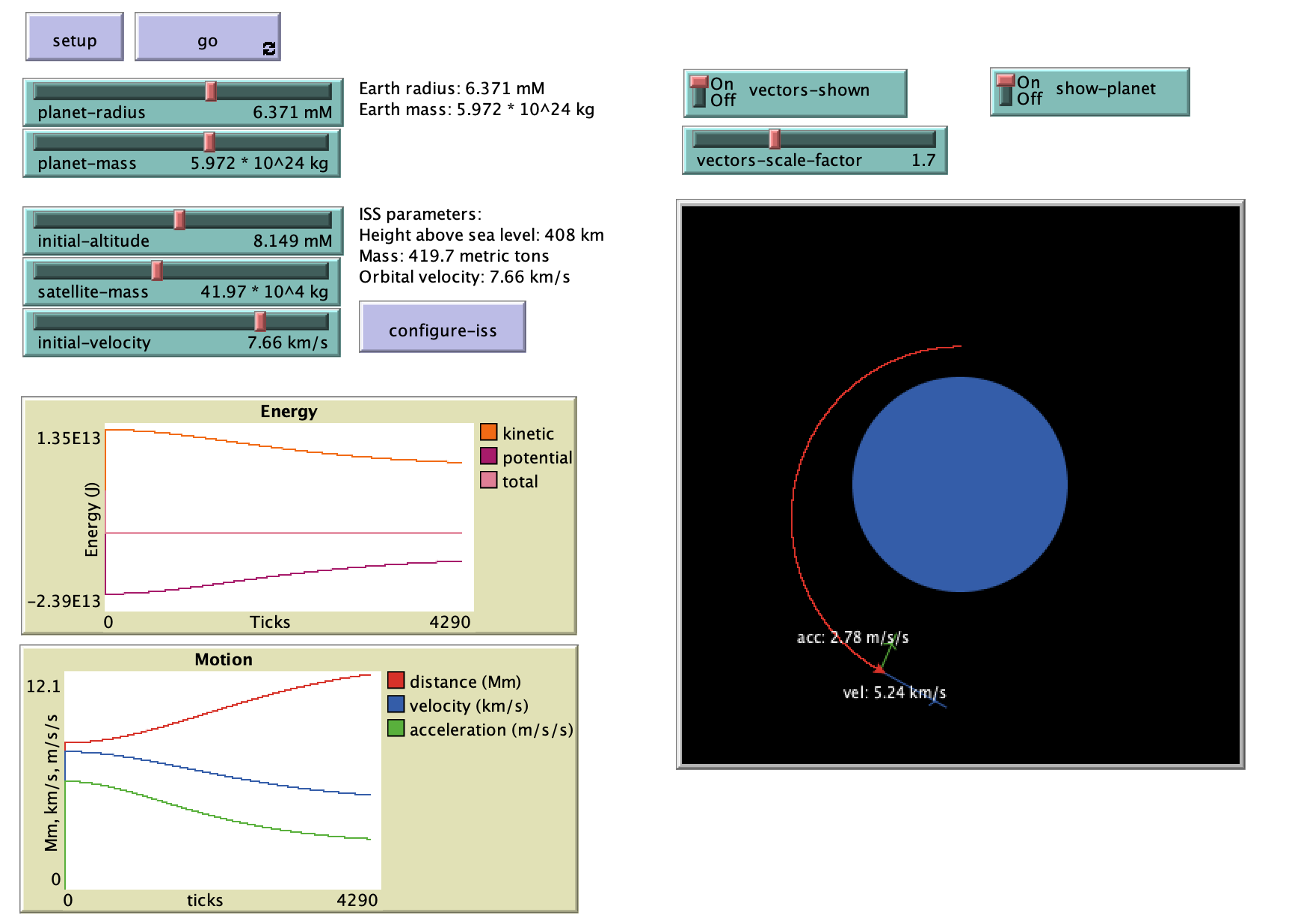

to configure-iss
  set planet-radius 6.371
  set planet-mass 5.972
  set satellite-mass 41.97
  set initial-velocity 7.66
  set initial-altitude 6.709

  setup
end

to setup

  clear-all

  set check-orbit? true

  reset-ticks
  set grav-const 6.67408 * 10 ^ (-11)
  set m-per-patch 1000000
  set planet-mass-kg planet-mass * 10 ^ 24
  set satellite-mass-kg satellite-mass * 10 ^ 4


  create-planets 1 [
    ;set label (word "planet, diameter " (size * 100) " km")

    set color blue
    set size planet-radius * 2
    set shape "circle"
  ]

  create-sats 1 [

    set color red
    set heading 270
    setxy 0 initial-altitude

    set acc-m-s2 grav-const * planet-mass-kg / (distance one-of planets * m-per-patch) ^ 2

    set pen-size 1
    set pen-mode "down"



  ]
  set  vx-m-s -1 * initial-velocity * 1000 set vy-m-s 0 ;

  ask one-of sats [
    hatch-vectors 1 [
      set id "acc"
      set color green
      hide-turtle
      set pen-mode "up"




    ]

    hatch-vectors 1 [
      set id "vel"
      set color blue
      hide-turtle
      set pen-mode "up"



    ]
  ]
end

to go
  if check-orbit? [
    clear-links
    ask one-of sats [



      set distance-m distance one-of planets * m-per-patch
      set acc-m-s2 grav-const * planet-mass-kg / (distance-m) ^ 2

      set acc-x -1 * acc-m-s2 * xcor / (distancexy 0 0) ; use similar triangles to get standard basis vecs from scalar
      set acc-y -1 * acc-m-s2 * ycor / (distancexy 0 0)

      set vx-m-s vx-m-s + acc-x
      set vy-m-s vy-m-s + acc-y

      set kinetic-energy 0.5 * satellite-mass-kg * (vx-m-s ^ 2 + vy-m-s ^ 2)
      set potential-energy -1 * grav-const * satellite-mass-kg * planet-mass-kg / (distance-m)

      let new-x xcor + vx-m-s / m-per-patch
      let new-y ycor + vy-m-s / m-per-patch

      facexy new-x new-y



      if vectors-shown [make-vectors]


      set xcor new-x
      set ycor new-y

      test-kill-orbit

    ]


  ]



  ifelse show-planet [
    ask planets [show-turtle]

  ] [
    ask planets [hide-turtle]
  ]

    tick
end

to make-vectors



  ask vectors with [id = "acc"] [
    set xcor max list (min (list (0.5 * vectors-scale-factor * (acc-x) + [xcor] of one-of sats) max-pxcor)) min-pxcor
    set ycor max list (min (list (0.5 * vectors-scale-factor * (acc-y) + [ycor] of one-of sats) max-pycor)) min-pycor

    create-links-from sats [
        set color green
        set label (word "acc: " precision acc-m-s2 2 " m/s/s")
    ]

  ]



  ask vectors with [id = "vel"] [

    set xcor max list (min (list (vectors-scale-factor * (vx-m-s / 2000) + [xcor] of one-of sats) max-pxcor)) min-pxcor
    set ycor max list (min (list (vectors-scale-factor * (vy-m-s / 2000) + [ycor] of one-of sats) max-pycor)) min-pycor

    create-links-from sats [
        set color blue
        set label (word "vel: " precision (sqrt(vx-m-s ^ 2 + vy-m-s ^ 2) / 1000) 2 " km/s")
    ]

  ]
end

to test-kill-orbit
  if distancexy 0 0 < planet-radius or abs xcor > max-pxcor or abs ycor > max-pycor [
    set shape "x"
    set check-orbit? false
    ask vectors with [id = "acc" or id = "vel"] [die]
    stop
  ]
end

; Copyright 2020 Will Bradley
