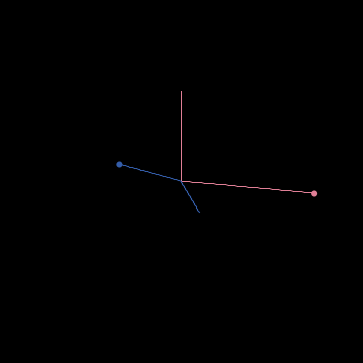

GasLab Single Collision preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 217 times • Downloaded 16 times • Run 1 time
Download the 'GasLab Single Collision' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This is one in a series of GasLab models that use the same basic rules for what happens when particles run into each other. Each one has different features in order to show different aspects of the behavior of gases.

This model is simplified to show the collision of only two particles, since this event is so hard to watch when there are many particles in the world: given the initial motions of two colliding particles, what can we learn about their final motions from the principles of conservation of momentum and energy?

HOW IT WORKS

The particles are modeled as hard balls with no internal energy except that which is due to their motion. Collisions between particles are elastic. Particles are colored according to speed --wel- blue for slow, green for medium, and red for high speeds.

Coloring of the particles is with respect to one speed (10). Particles with a speed less than 5 are blue, ones that are more than 15 are red, while all in those in-between are green.

Particles behave according to the following rules:

  1. A particle moves in a straight line without changing its speed, unless it collides with another particle or bounces off the wall. The particles are aimed to hit each other at the origin.
  2. Two particles "collide" if they find themselves on the same patch (the world is composed of a grid of small squares called patches).
  3. A random axis is chosen, as if they are two balls that hit each other and this axis is the line connecting their centers.
  4. They exchange momentum and energy along that axis, according to the conservation of momentum and energy. This calculation is done in the center of mass system.
  5. Each turtle is assigned its new velocity, energy, and heading.
  6. If a turtle finds itself on or very close to a wall of the container, it "bounces" -- that is, reflects its direction and keeps its same speed.

HOW TO USE IT

Initial settings:

  • COLLISION-ANGLE: Sets the angle that separates the pink and blue particles before the collision.
  • REFLECTION-ANGLE: Sets the angle of the axis connecting the particles' centers when they collide with respect to the vertical axis. To calculate the outcome of the collision, the speeds of the two particles are projected onto this new axis and the new speeds and headings are computed. Other GasLab models use random values for "REFLECTION-ANGLE", but this model allows you to experiment with them one by one. This angle is called THETA in the code of the model.
  • INIT-PINK-SPEED (or BLUE): Sets the initial speed of the pink (or blue) particle.
  • PINK-MASS (or BLUE): Sets the mass of the pink (or blue) particle.

Other settings:

  • SHOW-CENTER-OF-MASS?: If ON, the center of mass of the system will be shown in gray.

Buttons for running the model:

  • SETUP
  • RUN-MODE: Chooses between ONE COLLISION (just one run), ALL-COLLISION-ANGLES (loops through all the collision angles with 15-degrees steps) and ALL-REFLECTION-ANGLES(loops through all the reflection angles with 15-degrees steps).
  • GO

Monitors:

  • ENERGY OF PINK (or -BLUE): Shows the current energy of the pink (or blue) particle.
  • SPEED OF PINK (or -BLUE): Shows the current speed of the pink (or blue) particle.
  • AVERAGE SPEED: Shows the average of the speeds of the two particles.
  • TOTAL ENERGY: Shows the sum of the energies of the two particles.

Plots:

  • SPEEDS: speed of each of the particles over time.

THINGS TO TRY

Set the reflection-angle to zero. Draw a picture representing the two balls as they collide, with their two faces touching. Make the line connecting their centers be the same as theta. Draw vectors representing their motion.

While running the following situations note the paths of the two particles. Can you make sense of what they do? Is it what you expected?

Choose a COLLISION-ANGLE and a REFLECTION-ANGLE and choose ONE-COLLISION to see one particular collision.

Choose a COLLISION-ANGLE and choose ALL-REFLECTION-ANGLES to cycle through all of the angles of reflection.

Choose a REFLECTION-ANGLE and choose ALL-COLLISION-ANGLES to cycle through all of the angles of collision.

THINGS TO NOTICE

With COLLISION-ANGLE = 180 (directly across from each other) and REFLECTION-ANGLE = 90, it looks as if the two particles miss each other. What is happening?

With REFLECTION-ANGLE = 45 degrees, the particles go off at right angles. Why? Draw a picture of what is happening at the moment of collision.

With REFLECTION-ANGLE = 0 degrees, the two particles reverse direction. Why?

What is the motion of the center of mass? What would you expect it to be?

THINGS TO TRY

Have the masses of the two particles be different.

Have the initial speeds of the two particles be different.

Change the initial positions and headings of the two particles. As a simple case, set one on the y-axis and the other on the x-axis, (COLLISION-ANGLE = 90) each one heading toward the origin. The center of mass is no longer stationary. Note its path. Is it what you would expect?

If the center of mass is not stationary, the two particles often have different speeds after they collide, even when they have identical initial speeds and masses! Why does this happen? How can this satisfy the conservation of both energy and momentum?

The fact that the velocities are not always the same after every kind of collision is essential to getting a distribution of velocities among identical particles after many collisions, which is what we observe with particles in a gas.

Does this seem like a reasonable model for colliding particles? When is it reasonably valid, and when is it decidedly NOT valid?

When two particles collide, should theta be picked randomly -- each theta has an equal probability --- or in some other way? Would this change the eventual velocity distribution among many particles?

After you have gotten used to observing and understanding these simple collisions, go to the "Free Gas" or "Gas in a Box" model. Especially watch the particle whose path is traced in gray. Does it make sense? Can you picture each collision?

Record the velocities of each particle after each collision. After you have several sets of velocities, look at the entire velocity distribution. What do you notice? Is it the Maxwell-Boltzmann distribution?

CREDITS AND REFERENCES

This model was developed as part of the GasLab curriculum (http://ccl.northwestern.edu/curriculum/gaslab/) and has also been incorporated into the Connected Chemistry curriculum (http://ccl.northwestern.edu/curriculum/ConnectedChemistry/)

HOW TO CITE

If you mention this model in a publication, we ask that you include these citations for the model itself and for the NetLogo software:

COPYRIGHT AND LICENSE

Copyright 1997 Uri Wilensky.

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Commercial licenses are also available. To inquire about commercial licenses, please contact Uri Wilensky at uri@northwestern.edu.

This model was created as part of the project: CONNECTED MATHEMATICS: MAKING SENSE OF COMPLEX PHENOMENA THROUGH BUILDING OBJECT-BASED PARALLEL MODELS (OBPML). The project gratefully acknowledges the support of the National Science Foundation (Applications of Advanced Technologies Program) -- grant numbers RED #9552950 and REC #9632612.

This model was converted to NetLogo as part of the projects: PARTICIPATORY SIMULATIONS: NETWORK-BASED DESIGN FOR SYSTEMS LEARNING IN CLASSROOMS and/or INTEGRATED SIMULATION AND MODELING ENVIRONMENT. The project gratefully acknowledges the support of the National Science Foundation (REPP & ROLE programs) -- grant numbers REC #9814682 and REC-0126227. Converted from StarLogoT to NetLogo, 2002.

Comments and Questions

Click to Run Model

globals
[
  tick-delta                      ;; how much we advance the tick counter this time through
  max-tick-delta                  ;; the largest tick-delta is allowed to be
  plot-clock                      ;; keeps track of the x-axis for the plot
  avg-speed                       ;; average speed of the two particles
  total-energy                    ;; total energy of the two particles
  x-center y-center               ;; coordinates of center of mass
  done?                           ;; becomes true when one particles is about to 'leave' the world
  after-collision?                ;; for graphing purposes
]

breed [ particles particle ]
breed [ centers-of-mass center-of-mass ]

particles-own
[
  speed mass energy                ;; particle variables
  last-collision
]

to setup
  clear-all
  set-default-shape particles "circle"
  set-default-shape centers-of-mass "x"
  set done? false
  set max-tick-delta 0.1073
  set after-collision? false
  make-particles
  create-centers-of-mass 1
    [ set size 3 ]
  update-variables
  clear-drawing  ;; erase the line made by initially moving the center of mass
  reset-ticks
end

to update-variables
  let total-mass sum [mass] of particles
  set x-center (sum [ xcor * mass ] of particles) / total-mass
  set y-center (sum [ ycor * mass ] of particles) / total-mass
  set avg-speed  mean [speed] of particles
  set total-energy sum [energy] of particles
  ask centers-of-mass
  [
    ifelse show-center-of-mass?                         ;; marks a gray path along the particles' center of mass
      [ show-turtle
        pen-down ]
      [ hide-turtle
        pen-up ]
    setxy x-center y-center
  ]
end

to go
  ask particles [ move ]

  ask particles                                   ;;  each particle checks if it's on the same patch as the other
  [ check-for-collision ]
  update-variables
  calculate-tick-delta
  tick-advance tick-delta
  display
  update-plots
end

to go-mode

if run-mode = "one-collision"  [go-once stop]
if run-mode = "all-collision-angles" [all-collision-angles]
if run-mode = "all-reflection-angles" [all-reflection-angles]
end

to go-once                                          ;; a single collision
  setup
  while [ not done? ]
  [ go
    ask particles
    [ if not can-move? 1
      [ set done? true ]
    ]
  ]
end

to all-collision-angles                            ;; activated when the reflection angle is constant and the collision angle is varied
  go-once
  ifelse collision-angle >= 345
    [ set collision-angle 15 ]
    [ set collision-angle collision-angle + 15 ]
end

to all-reflection-angles                           ;; activated when the collision angle is constant and the reflection angle is varied
  go-once
  set reflection-angle reflection-angle + 15
  if reflection-angle = 360
  [ set reflection-angle 0 ]
end

to calculate-tick-delta
  ;; tick-delta is calculated in such way that even the fastest
  ;; particle will jump at most 1 patch length in a tick. As
  ;; particles jump (speed * tick-delta) at every tick, making
  ;; tick length the inverse of the speed of the fastest particle
  ;; (1/max speed) assures that. Having each particle advance at most
  ;; one patch-length is necessary for them not to "jump over" each
  ;; other without colliding.
  ifelse any? particles with [speed > 0]
    [ set tick-delta min list (1 / (ceiling max [speed] of particles)) max-tick-delta ]
    [ set tick-delta max-tick-delta ]
end

to move  ;; particle procedure
  jump (speed * tick-delta)
end

to check-for-collision  ;; particle procedure
  if count other particles-here = 1
  [
    ;; the following conditions are imposed on collision candidates:
    ;;   1. they must have a lower who number than my own, because collision
    ;;      code is asymmetrical: it must always happen from the point of view
    ;;      of just one particle.
    ;;   2. they must not be the same particle that we last collided with on
    ;;      this patch, so that we have a chance to leave the patch after we've
    ;;      collided with someone.
    let candidate one-of other particles-here with
      [who < [who] of myself and myself != last-collision]
    ;; we also only collide if one of us has non-zero speed. It's useless
    ;; (and incorrect, actually) for two particles with zero speed to collide.
    if (candidate != nobody) and (speed > 0 or [speed] of candidate > 0)
    [
      collide-with candidate
      set last-collision candidate
      ask candidate [ set last-collision myself ]
      set after-collision? true
    ]
  ]
end

;; implements a collision with another particle.
;;
;; THIS IS THE HEART OF THE PARTICLE SIMULATION, AND YOU ARE STRONGLY ADVISED
;; NOT TO CHANGE IT UNLESS YOU REALLY UNDERSTAND WHAT YOU'RE DOING!
;;
;; The two particles colliding are self and other-particle, and while the
;; collision is performed from the point of view of self, both particles are
;; modified to reflect its effects. This is somewhat complicated, so I'll
;; give a general outline here:
;;   1. Do initial setup, and determine the heading between the reflected particles
;;      (call it theta).
;;   2. Convert the representation of the velocity of each particle from
;;      speed/heading to a theta-based vector whose first component is the
;;      particle's speed along theta, and whose second component is the speed
;;      perpendicular to theta.
;;   3. Modify the velocity vectors to reflect the effects of the collision.
;;      This involves:
;;        a. computing the velocity of the center of mass of the whole system
;;           along direction theta
;;        b. updating the along-theta components of the two velocity vectors.
;;   4. Convert from the theta-based vector representation of velocity back to
;;      the usual speed/heading representation for each particle.
;;   5. Perform final cleanup and update derived quantities.

to collide-with [ other-particle ] ;; particle procedure
  ;;; PHASE 1: initial setup

  ;; for convenience, grab some quantities from other-particle
  let mass2 [mass] of other-particle
  let speed2 [speed] of other-particle
  let heading2 [heading] of other-particle

  ;; since particles are modeled as zero-size points, theta isn't meaningfully
  ;; defined. we can assign it randomly without affecting the model's outcome.
  let theta reflection-angle

  ;;; PHASE 2: convert velocities to theta-based vector representation

  ;; now convert my velocity from speed/heading representation to components
  ;; along theta and perpendicular to theta
  let v1t (speed * cos (theta - heading))
  let v1l (speed * sin (theta - heading))

  ;; do the same for other-particle
  let v2t (speed2 * cos (theta - heading2))
  let v2l (speed2 * sin (theta - heading2))



  ;;; PHASE 3: manipulate vectors to implement collision

  ;; compute the velocity of the system's center of mass along theta
  let vcm (((mass * v1t) + (mass2 * v2t)) / (mass + mass2) )

  ;; now compute the new velocity for each particle along direction theta.
  ;; velocity perpendicular to theta is unaffected by a collision along theta,
  ;; so the next two lines actually implement the collision itself, in the
  ;; sense that the effects of the collision are exactly the following changes
  ;; in particle velocity.
  set v1t (2 * vcm - v1t)
  set v2t (2 * vcm - v2t)



  ;;; PHASE 4: convert back to normal speed/heading

  ;; now convert my velocity vector into my new speed and heading
  set speed sqrt ((v1t ^ 2) + (v1l ^ 2))
  set energy (0.5 * mass * speed ^ 2)
  ;; if the magnitude of the velocity vector is 0, atan is undefined. but
  ;; speed will be 0, so heading is irrelevant anyway. therefore, in that
  ;; case we'll just leave it unmodified.
  if v1l != 0 or v1t != 0
    [ set heading (theta - (atan v1l v1t)) ]

  ;; and do the same for other-particle
  ask other-particle [
    set speed sqrt ((v2t ^ 2) + (v2l ^ 2))
    set energy (0.5 * mass * (speed ^ 2))
    if v2l != 0 or v2t != 0
      [ set heading (theta - (atan v2l v2t)) ]
  ]
end

to recolor  ;; particle procedure
  ifelse speed < (0.5 * 10)
  [
    set color blue + 2
  ]
  [
    ifelse speed > (1.5 * 10)
      [ set color red ]
      [ set color green ]
  ]
end

;; creates initial particles

to make-particles
  create-particles 1 [
    set color pink
    set speed init-pink-speed
    set mass pink-mass
    set heading 180
    bk 2 * speed
  ]
  create-particles 1 [
    set color blue
    set speed init-blue-speed
    set mass blue-mass
    set heading 180 + collision-angle
    bk 2 * speed
  ]
  ask particles
  [
    setup-particle
  ]
  calculate-tick-delta
end

to setup-particle  ;; particle procedure
  pen-down
  set size 2
  set energy (0.5 * mass * speed ^ 2 )
  set last-collision nobody
end


; Copyright 1997 Uri Wilensky.
; See Info tab for full copyright and license.

There are 15 versions of this model.

Uploaded by When Description Download
Uri Wilensky over 9 years ago Updated to NetLogo 5.0.4 Download this version
Uri Wilensky almost 10 years ago Updated version tag Download this version
Uri Wilensky almost 10 years ago Updated to version from NetLogo 5.0.3 distribution Download this version
Uri Wilensky over 10 years ago Updated to NetLogo 5.0 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Model from NetLogo distribution Download this version
Uri Wilensky over 12 years ago Model from NetLogo distribution Download this version
Uri Wilensky over 12 years ago GasLab Single Collision Download this version

Attached files

File Type Description Last updated
GasLab Single Collision.png preview Preview for 'GasLab Single Collision' over 9 years ago, by Uri Wilensky Download

This model does not have any ancestors.

This model does not have any descendants.
