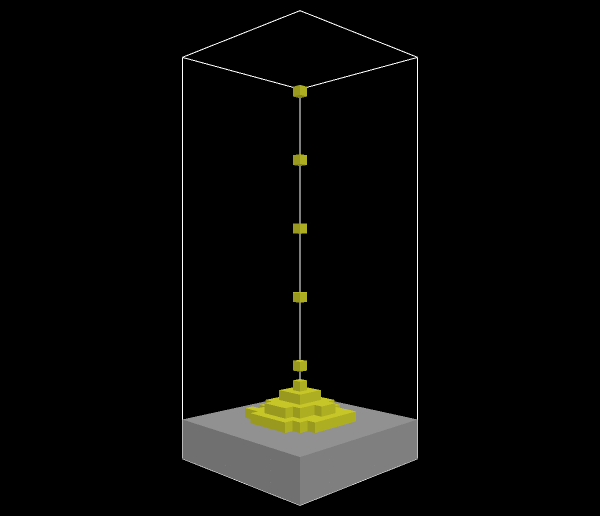

Sand 3D preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 3D 4.1pre7 • Viewed 278 times • Downloaded 21 times • Run 0 times
Download the 'Sand 3D' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This is a model of how sand particles interact with each other. The sand particles move according to the following rules:

1.) If the cell directly below is empty, move there.

2.) If the cell directly below is not empty, randomly move to one of the empty neighbors of the cell below.

HOW TO USE IT

GO: Starts and stops the simulation.

SETUP: Sets up the model.

SPACING: Determines how long the spout waits before releasing the next particle of sand.

THINGS TO NOTICE

Observe how sand rolls down a "mountain" of sand particles. Consider how this phenomenon is supported by the rules.

THINGS TO TRY

Observe how the spout will form a uniform pyramid of sand. Try DUMP SAND at a low density once you have a relatively large pyramid shape. How does this effect the shape of the pyramid? Does the pyramid ever return to its original shape?

Set the SPACING to 1. (You'll have to edit the slider, since the normal minimum is 2.) What happens? Is this just a limitation of the model rules, or does it have some plausible physical interpretation?

EXTENDING THE MODEL

Does this model accurately reflect how sand behaves? If not what rules could you devise to more accurately model sand's behavior? How could they be incorporated into the model?

What effect does weight have on sand particles? Should particles with lots of particles above them behave differently? If so, how would this change the rules?

Try simulating erosion with this model. How could you simulate wind? What effect would this have on the shape of the piles? How could you simulate rain? What effect would this have on the shape of the piles?

HOW TO CITE

If you mention this model in an academic publication, we ask that you include these citations for the model itself and for the NetLogo software:

- Wilensky, U. (1996). NetLogo Sand 3D model. http://ccl.northwestern.edu/netlogo/models/Sand3D. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

- Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

In other publications, please use:

- Copyright 1996 Uri Wilensky. All rights reserved. See http://ccl.northwestern.edu/netlogo/models/Sand3D for terms of use.

COPYRIGHT NOTICE

Copyright 1996 Uri Wilensky. All rights reserved.

Permission to use, modify or redistribute this model is hereby granted, provided that both of the following requirements are followed:

a) this copyright notice is included.

b) this model will not be redistributed for profit without permission from Uri Wilensky. Contact Uri Wilensky for appropriate licenses for redistribution for profit.

This is a 3D version of the 2D model Sand.

This model was created as part of the projects: PARTICIPATORY SIMULATIONS: NETWORK-BASED DESIGN FOR SYSTEMS LEARNING IN CLASSROOMS and/or INTEGRATED SIMULATION AND MODELING ENVIRONMENT. The project gratefully acknowledges the support of the National Science Foundation (REPP & ROLE programs) -- grant numbers REC #9814682 and REC-0126227.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)
