Tutorial 3

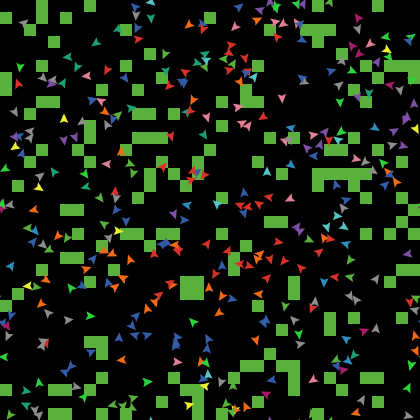

Tutorial 3 preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 131 times • Downloaded 20 times • Run 0 times
Download the 'Tutorial 3' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

turtles-own [energy] ;; for keeping track of when the turtle is ready
                     ;; to reproduce and when it will die

to setup
  clear-all
  setup-patches
  setup-turtles
  reset-ticks
end

to setup-patches
  ask patches [ set pcolor green ]
end

to setup-turtles
  create-turtles number    ;; uses the value of the number slider to create turtles
  ask turtles [ setxy random-xcor random-ycor ]
end

to go
  if ticks >= 500 [ stop ] ;; stop after 500 ticks
  move-turtles
  eat-grass
  check-death
  reproduce
  regrow-grass
  tick                     ;; increment the tick counter and update the plot
end

to move-turtles
  ask turtles [
    right random 360
    forward 1
    set energy energy - 1  ;; when the turtle moves it looses one unit of energy
  ]
end

to eat-grass
  ask turtles [
    if pcolor = green [
      set pcolor black
           ;; the value of energy-from-grass slider is added to energy
      set energy (energy + energy-from-grass)
    ]
  ifelse show-energy?
    [ set label energy ] ;; the label is set to be the value of the energy
    [ set label "" ]     ;; the label is set to an empty text value
  ]
end

to reproduce
  ask turtles [
    if energy > birth-energy [
    set energy energy - birth-energy  ;; take away birth-energy to give birth
    hatch 1 [ set energy birth-energy ] ;; give this birth-energy to the offspring
    ]
  ]
end

to check-death
  ask turtles [
    if energy <= 0 [ die ] ;; removes the turtle if it has no energy left
  ]
end

to regrow-grass
  ask patches [ ;; 3 out of 100 times, the patch color is set to green
    if random 100 < 3 [ set pcolor green ]
  ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.

There are 10 versions of this model.

Uploaded by When Description Download
Uri Wilensky over 9 years ago Updated to NetLogo 5.0.4 Download this version
Uri Wilensky almost 10 years ago Updated version tag Download this version
Uri Wilensky over 10 years ago Updated to NetLogo 5.0 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Model from NetLogo distribution Download this version
Uri Wilensky over 12 years ago Tutorial 3 Download this version
Uri Wilensky over 12 years ago Tutorial 3 Download this version

Attached files

File Type Description Last updated
Tutorial 3.png preview Preview for 'Tutorial 3' over 9 years ago, by Uri Wilensky Download

This model does not have any ancestors.

This model does not have any descendants.
