Network Example

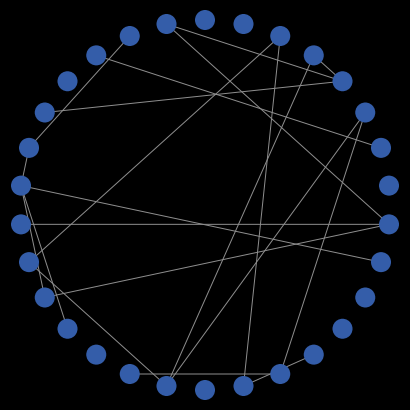

Network Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 473 times • Downloaded 28 times • Run 5 times
Download the 'Network Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

to setup
  clear-all
  set-default-shape turtles "circle"
  crt number-of-nodes [
    set color blue
    set size 2
  ]
  layout-circle turtles (world-width / 2 - 2)
  reset-ticks
end

;; This procedure demos the creation and deletion of edges.
;; Here we create and delete edges at random, except that
;; we try to keep the total number of links constant.

to go
  if not any? turtles [ stop ]
  ask one-of turtles
    [ create-link-with one-of other turtles ]  ;; if link already exists, nothing happens
  while [count links > number-of-links]
    [ ask one-of links [ die ] ]
  tick
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.

There are 10 versions of this model.

Uploaded by When Description Download
Uri Wilensky over 9 years ago Updated to NetLogo 5.0.4 Download this version
Uri Wilensky almost 10 years ago Updated version tag Download this version
Uri Wilensky over 10 years ago Updated to NetLogo 5.0 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Updated from NetLogo 4.1 Download this version
Uri Wilensky over 12 years ago Model from NetLogo distribution Download this version
Uri Wilensky over 12 years ago Network Example Download this version
Uri Wilensky over 12 years ago Network Example Download this version

Attached files

File Type Description Last updated
Network Example.png preview Preview for 'Network Example' over 9 years ago, by Uri Wilensky Download

This model does not have any ancestors.

This model does not have any descendants.
