Shape Animation Example

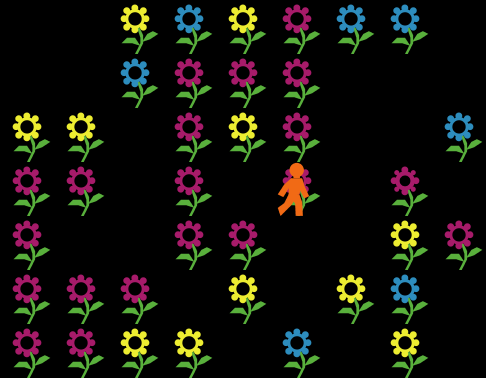

Shape Animation Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 231 times • Downloaded 22 times • Run 1 time
Download the 'Shape Animation Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [ flowers flower ]
breed [ people person ]   ;; putting people last ensures people appear
                          ;; in front of flowers in the view

people-own [frame]        ;; ranges from 1 to 9
flowers-own [age]         ;; ranges from 1 to 16

;;
;; SETUP PROCEDURES
;;

to setup                          ;; executed when we press the SETUP button
  clear-all                       ;; clear all patches and turtles
  create-people 1 [
    set heading 90                ;; i.e. to the right
    set frame 1
    set shape "person-1"
  ]
  reset-ticks
end

;;
;; GO PROCEDURES
;;

to go
  animate
  tick
end

to animate
  move-person
  ask flowers [ age-flower ]
  if random 100 < 20
    [ make-flower ]
end

to move-person
  ask people [
    set shape (word "person-" frame)
    forward 1 / 20                ;; The shapes editor has a grid divided into 20 squares, which when
                                  ;; drawing made for useful points to reference the leg and shoe, to
                                  ;; make it look like the foot would be moving one square backward
                                  ;; when in contact with the ground (relative to the person), but
                                  ;; with a relative velocity of 0, when moving forward 1/20th of
                                  ;; a patch each frame
    set frame frame + 1
    if frame > 9
      [ set frame 1 ]             ;; go back to beginning of cycle of animation frames
  ]
end

to age-flower  ;; flower procedure
   set age (age + 1)              ;; age is used to keep track of how old the flower is
                                  ;; each older plant is a little bit taller with a little bit
                                  ;; larger leaves and flower.
   if (age >= 16) [ set age 16 ]  ;; we only have 16 frames of animation, so stop age at 16
   set shape (word "flower-" age)
end

to make-flower
  ;; if every patch has a flower on it, then kill all of them off
  ;; and start over
  if all? patches [any? flowers-here]
    [ ask flowers [ die ] ]
  ;; now that we're sure we have room, actually make a new flower
  ask one-of patches with [not any? flowers-here] [
    sprout 1 [
      set breed flowers
      set shape "flower-1"
      set age 0
      set color one-of [magenta sky yellow]
    ]
  ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
