Random Grid Walk Example

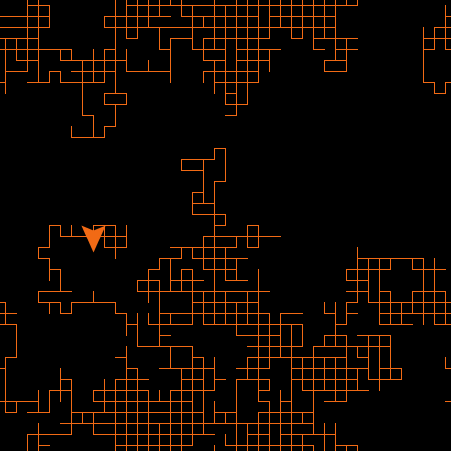

Random Grid Walk Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 293 times • Downloaded 25 times • Run 1 time
Download the 'Random Grid Walk Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

to setup
  clear-all
  crt 1                                 ;; create one turtle
  [
    set color orange
    set size 3                          ;; make it easier to see
    face one-of neighbors4              ;; face N, E, S, or W
    pen-down                            ;; have it draw its path
  ]
  reset-ticks
end

to walk1
  ask turtles [
    face one-of neighbors4              ;; face N, E, S, or W
    forward 1                           ;; advance one step
  ]
  tick
end

to walk2
  ask turtles [
    rt one-of [-90 0 90]                ;; go left, straight, or right
    forward 1                           ;; advance one step
  ]
  tick
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
