Diffuse Off Edges Example

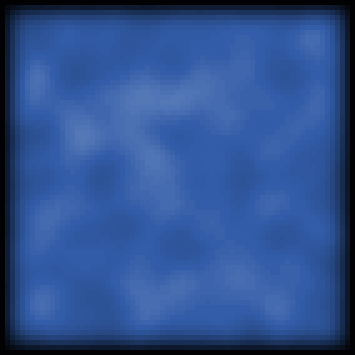

Diffuse Off Edges Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 236 times • Downloaded 17 times • Run 0 times
Download the 'Diffuse Off Edges Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

patches-own
[
  value          ;; this is the quantity we will be diffusing
]

globals
[
  edge-patches   ;; border patches where value should remain 0
  main-patches   ;; patches not on the border
]

to setup
  clear-all
  ;; we assume that vertical and horizontal wrapping are both
  ;; off, so edge and corner patches have fewer than 8 neighbors
  set edge-patches patches with [count neighbors != 8]
  set main-patches patches with [count neighbors = 8]
  ;; create some random numbers to diffuse
  ask main-patches [ set value random-float 100 ]
  recolor
  reset-ticks
end

to recolor
  ask patches
    [ set pcolor scale-color blue value 0 100 ]
end

to go
  ;; first, do a normal diffuse
  diffuse value 1
  ;; now remove any of the value which has reached the edges
  ;; of the world
  ask edge-patches [ set value 0 ]
  recolor
  tick
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
