Vision Cone Example

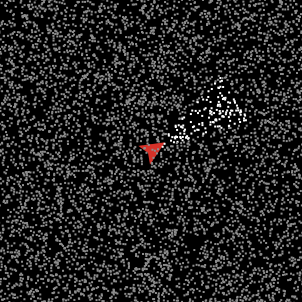

Vision Cone Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 445 times • Downloaded 28 times • Run 0 times
Download the 'Vision Cone Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [ wanderers wanderer ]  ;; big red turtle that moves around
breed [ standers stander ]    ;; little gray turtles that just stand there

to setup
  clear-all
  ;; make a background of lots of randomly scattered
  ;; stationary gray turtles
  create-standers 6000
  [
    setxy random-xcor random-ycor
    set color gray
  ]
  ;; make one big red turtle that is going to move around
  create-wanderers 1
  [
    set color red
    set size 15
  ]
  reset-ticks
  ;; make the vision cone initially visible
  go
end

to go
  ask standers [ set color gray ]
  ask wanderers
  [
    rt random 20
    lt random 20
    fd 1
    ;; could use IN-CONE-NOWRAP here instead of IN-CONE
    ask standers in-cone vision-radius vision-angle
    [
      set color white
    ]
  ]
  tick
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
