# Matrix Example ### 1 collaborator Uri Wilensky (Author)

### Tags

ccl

Tagged by Modeling Commons System over 10 years ago

code example

Tagged by Reuven M. Lerner over 9 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 1297 times • Downloaded 67 times • Run 0 times Download this modelEmbed this model

## Comments and Questions

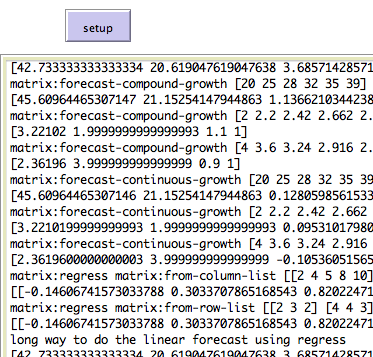

Click to Run Model

```extensions [ matrix ]

to setup
clear-all

let m1 matrix:from-column-list [[1 4 7][2 5 8][3 6 9]] ; 3x3 matrix
let m2 matrix:from-row-list [[0 0 0][1 1 1][2 2 2][3 3 3]] ; 4x3 matrix
let m3 matrix:make-identity 2 ; 2x2 identity matrix
let m4 matrix:make-constant 5 1 100 ; 5x1 matrix, containing 100 in each entry

output-print "m1"
output-print m1
output-print "m2"
output-print m2
output-print "m3"
output-print m3
output-print "m4"
output-print m4

output-print matrix:get m1 1 2   ; =>  (row 1, column 2), result is 6

let mRef m2              ; mRef is another reference to the same matrix as m2
let mCopy matrix:copy m2 ; => mCopy = new copy, not a reference to m2!

matrix:set m2 0 1 9      ; Note mCopy remains unchanged, but m2 and mRef change

output-print "m2 after matrix:set m2 0 1 9"
output-print m2 ; => matrix: [[0 9 0][1 1 1][2 2 2][3 3 3]]
output-print "mRef after matrix:set m2 0 1 9"
output-print mRef ; same as above
output-print "mCopy after matrix:set m2 0 1 9"
output-print mCopy ; different -- no 9 in the first row.

output-print "the dimensions of m4"
output-print matrix:dimensions m4 ; => [5,1]
output-print "m1 to a row list"
output-print matrix:to-row-list m1 ; => [[1 2 3] [4 5 6] [7 8 9]]
output-print "m4 to a column list"
output-print matrix:to-column-list m4 ; => []

let m5 matrix:plus-scalar m3 1
output-print "m5 = m3 + scalar 1"
output-print m5 ; => matrix:  [[2 1][1 2]]

output-print "m3 + m5"
output-print matrix:plus m3 m5 ; => [[3 1][1 3]]

output-print "m5 x scalar 10"
output-print matrix:times-scalar m5 10 ; => [[20 10][10 20]]
output-print "matrix:times [[1 2][3 4]] [[0 1][-1 0]]"
output-print matrix:times (matrix:from-row-list [[1 2][3 4]])
(matrix:from-row-list [[0 1][-1 0]])  ; => {{matrix:  [ [ -2 1 ][ -4 3 ] ]}}

output-print "matrix:times-element-wise [[1 2][3 4]] [[0 1][-1 0]]"
output-print matrix:times-element-wise (matrix:from-row-list [[1 2][3 4]])
(matrix:from-row-list [[0 1][-1 0]])  ; => {{matrix:    [[0 2][-3 0] ]}}

output-print "matrix:inverse [[2 2][2 0]]"
output-print matrix:inverse (matrix:from-row-list [[2 2][2 0]])  ; => {{matrix:  [ [ 0 0.5 ][ 0.5 -0.5 ] ]}}
carefully [
output-print matrix:inverse matrix:from-row-list [[0 0] [0 0]]
][
output-print "Can't invert matrix: [[0 0] [0 0]]!"
]

output-print "matrix:transpose m2"
output-print matrix:transpose m2 ; => matrix: [[0 1 2 3][9 1 2 3][0 1 2 3]]
output-print "matrix:submatrix m1 0 1 2 3"
output-print matrix:submatrix m1 0 1 2 3 ; matrix, rowStart, colStart, rowEnd, colEnd
; rows from 0 (inclusive) to 2 (exclusive),
; columns from 1 (inclusive) to 3 (exclusive)
; => matrix: [[2 3][5 6]]
output-print "matrix:get-row m1 2"
output-print matrix:get-row m1 1         ; puts the second row of m1 (starting from 0) in a simple
; NetLogo list.  => [4 5 6]
output-print "matrix:get-column m1 2"
output-print matrix:get-column m1 1      ; puts the second column of m1 (starting from 0) in a simple
; NetLogo list.  => [2 5 8]

output-print "create a new matrix m6 from row list [[0 0 0][1 1 1][2 2 2][3 3 3]]"
let m6 matrix:from-row-list [[0 0 0][1 1 1][2 2 2][3 3 3]] ; 4x3 matrix
output-print m6
output-print "matrix:set-row m6 1 [20 21 22]"
matrix:set-row m6 1 [20 21 22]  ; => [[0 0 0][20 21 22][2 2 2][3 3 3]]
output-print m6
output-print "matrix:set-column m6 2 [10 11 12 13]"
matrix:set-column m6 2 [10 11 12 13]  ; => [[0 0 10][20 21 11][2 2 12][3 3 13]]
output-print m6
output-print "matrix:swap-rows m6 1 2"
matrix:swap-rows m6 1 2  ; => [[0 0 10][2 2 12][20 21 11][3 3 13]]
output-print m6
output-print "matrix:swap-columns m6 2 0"
matrix:swap-columns m6 2 0  ; => [[10 0 0][12 2 2][11 21 20][13 3 3]]
output-print m6

output-print "matrix:real-eigenvalues m5"
; recall m5 = [[2 1][1 2]]
output-print matrix:real-eigenvalues m5 ; => [1.0000000000000002 3] NOTE: accuracy not perfect.
output-print "matrix:imaginary-eigenvalues m5"
output-print matrix:imaginary-eigenvalues m5 ; => [ 0 0 ]
output-print "matrix:eigenvectors m5"
output-print matrix:eigenvectors m5 ; => matrix:  [[0.707... 0.707...][-0.707... 0.707...]] (.707... = sqrt(2)/2 )

let A matrix:from-row-list [[1 2][3 4]]
let B matrix:from-row-list [[-2 1][-4 3]]
output-print "matrix:solve [[1 2][3 4]] [[-2 1][-4 3]]"
output-print matrix:solve A B ; => [[0 1][-1 0]]
;  Solve is sort of like matrix division.
;  That is, it tries to find matrix X such that  A * X = B.
;  It gives a "least-squares" solution, if no perfect solution exists.

output-print "matrix:set-and-report m1 2 2 0"
output-print matrix:set-and-report m1 2 2 0  ;; m1 is unchanged, a new matrix is reported.
output-print "m1 is unchanged"
output-print m1
set m1 matrix:set-and-report m1 2 2 0        ;; can also change m1 itself, using the reporter.

output-print "matrix:forecast-linear-growth [20 25 28 32 35 39]  => ?? linear growth rate"
output-print matrix:forecast-linear-growth [20 25 28 32 35 39]  ; a linear extrapolation of the next item in the list.

output-print "matrix:forecast-compound-growth [20 25 28 32 35 39] => ~13.7% compound growth rate"
output-print matrix:forecast-compound-growth [20 25 28 32 35 39]
output-print "matrix:forecast-compound-growth [2 2.2 2.42 2.662 2.9282] => 10.0% compound growth rate"
output-print matrix:forecast-compound-growth [2 2.2 2.42 2.662 2.9282]
output-print "matrix:forecast-compound-growth [4 3.6 3.24 2.916 2.6244] => minus 10.0% compound growth rate"
output-print matrix:forecast-compound-growth [4 3.6 3.24 2.916 2.6244]

output-print "matrix:forecast-continuous-growth [20 25 28 32 35 39] => ~12.8% continuous growth rate"
output-print matrix:forecast-continuous-growth [20 25 28 32 35 39]
output-print "matrix:forecast-continuous-growth [2 2.2 2.42 2.662 2.9282] => ~9.5% continuous growth rate"
output-print matrix:forecast-continuous-growth [2 2.2 2.42 2.662 2.9282] ; a compound growth extrapolation of the next item in the list.
output-print "matrix:forecast-continuous-growth [4 3.6 3.24 2.916 2.6244] => ~ minus 10.5% continuous growth rate"
output-print matrix:forecast-continuous-growth [4 3.6 3.24 2.916 2.6244]

output-print "matrix:regress matrix:from-column-list [[2 4 5 8 10] [3 4 3 7 8] [2 3 5 8 9]]"
output-print matrix:regress matrix:from-column-list [[2 4 5 8 10] [3 4 3 7 8] [2 3 5 8 9]]
output-print "matrix:regress matrix:from-row-list [[2 3 2] [4 4 3] [5 3 5] [8 7 8] [10 8 9]]"
output-print matrix:regress matrix:from-row-list [[2 3 2] [4 4 3] [5 3 5] [8 7 8] [10 8 9]]

; The forecasts may also be done using regress.  Here they are. Note that the next value
; to be forecast is for the value after the 6 observations supplied. But since lists begin with position
; zero, that will be for position 6.
; this is what happens inside matrix:forecast-linear-growth.
output-print "long way to do the linear forecast using regress"
let data-list [20 25 28 32 35 39]
let indep-var (n-values length data-list [?]) ; 0,1,2...,5
let lin-output matrix:regress matrix:from-column-list (list data-list indep-var)
let lincnst item 0 (item 0 lin-output)
let linslpe item 1 (item 0 lin-output)
let linR2   item 0 (item 1 lin-output)
output-print (list (lincnst + linslpe * 6) (lincnst) (linslpe) (linR2))

; this is what happens inside matrix:forecast-compound-growth.
output-print "long way to do the compound-growth forecast using regress"
let com-log-data-list  (map [ln ?] [20 25 28 32 35 39])
let com-indep-var2 (n-values length com-log-data-list [?]) ; 0,1,2...,5
let com-output matrix:regress matrix:from-column-list (list com-log-data-list com-indep-var2)
let comcnst exp item 0 (item 0 com-output)
let comrate exp item 1 (item 0 com-output)
let comR2       item 0 (item 1 com-output)
output-print (list (comcnst * comrate ^ 6) (comcnst) (comrate) (comR2))

; this is what happens inside matrix:forecast-continuous-growth.
output-print "long way to do the continuous-growth forecast using regress"
let con-log-data-list  (map [ln ?] [20 25 28 32 35 39])
let con-indep-var2 (n-values length con-log-data-list [?]) ; 0,1,2...,5
let con-output matrix:regress matrix:from-column-list (list con-log-data-list con-indep-var2)
let concnst exp item 0 (item 0 con-output)
let conrate     item 1 (item 0 con-output)
let conR2       item 0 (item 1 con-output)
output-print (list (concnst * exp (conrate * 6)) (concnst) (conrate) (conR2))

;;NOTE: The matrix extension could be extended with more functionality,
;;      since the Jama library it is based on can do much more
;;        (e.g. LU, Cholesky, SV decompositions)
end

; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
```
