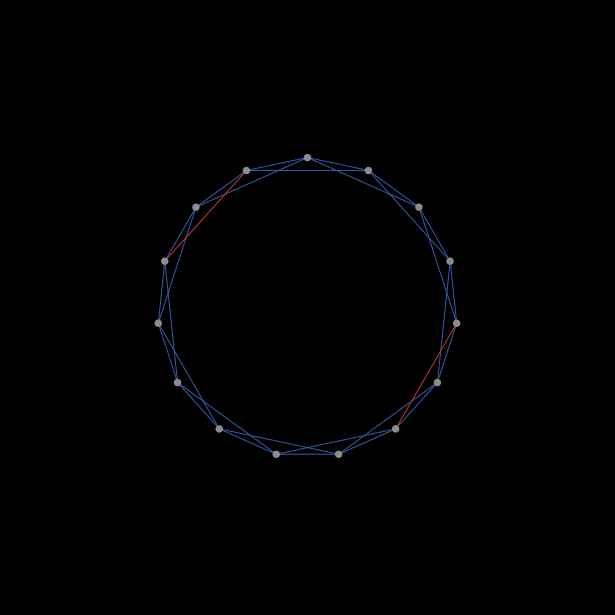

Yet another implementation of Watts and Strogatz Small World Algorithm preview image

1 collaborator

Default-person julien siebert (Author)

Tags

code example

Tagged by julien siebert over 11 years ago

small world

Tagged by julien siebert over 11 years ago

watts strogatz

Tagged by julien siebert over 11 years ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.4 • Viewed 1667 times • Downloaded 78 times • Run 0 times
Download the 'Yet another implementation of Watts and Strogatz Small World Algorithm' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

It is an implementation of the Watts and Strogatz Small World Algorithm. Mainly for example and discussion purposes.

HOW IT WORKS

First the nodes are created. Then a regular lattice of K nearest neighbours. Finally with a probability beta each link is rewired to a 'not-yet-neighbour' node with id > the current node.

See Watts and Strogatz Algorithm http://en.wikipedia.org/wiki/WattsandStrogatz_model

HOW TO USE IT

Set the number of nodes. Set the parameters K and Beta. Choose the radius of the layout.

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

EXTENDING THE MODEL

You can use this code sample

NETLOGO FEATURES

RELATED MODELS

CREDITS AND REFERENCES

http://en.wikipedia.org/wiki/WattsandStrogatz_model

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

to setup
  clear-all
  ;; creates all the nodes
  set-default-shape turtles "circle"
  create-turtles  nb-nodes  [set size 0.5 set color gray]
  ;; arrange them in a circle in order by who number
  layout-circle (sort turtles) radius
  ;; create the link between the nodes with the Watts and Strogatz algorithm
  link-nodes
  ;; set the simulation time to 0 (plot things)
  reset-ticks
;;  go
end

;;to go
;;  tick
;;end


;; create the links among nodes (Watts and Strogatz algorithm), add weight and color

to link-nodes
  ;; create a regular lattice
  ask turtles [
    let n 1
    while [ n <= K ]
    [
      ifelse who < (count turtles - K)
      [
        ifelse (random-float 1) < beta
        [
          random-link
        ]
        [
          normal-link n
        ]
      ]
      [
        normal-link n
      ]
      set n (n + 1)
    ]
  ]
end

to normal-link [n]
  create-link-with turtle ((who + n) mod count turtles)
  [
    set color blue
  ]
end

;; create a link with another 'not-yet linked' node whose id > caller id

to random-link
  let myid who
  let other-node one-of other turtles with [(who > myid) and (not link-neighbor? turtle myid)]
  if other-node != nobody
  [
    create-link-with other-node
    [
      set color red
    ]
  ]
end
