ClimateWise 1.2

1 collaborator

WHAT IS IT?

This model is inspired by Tom Seeley's work on the decision-making system of honeybees. It explores the impact of decision-making systems and science and anti-science dissemination on climate change.

HOW IT WORKS

Humans have founded a colony on a new planet. Earth has overheated. The cause is disputed, but now they have a chance to start afresh. On this planet the oxygen produced by forests and the carbon dioxide produced by factories diffuse slowly through the atmosphere producing pockets of the gases. There are three kinds of human agents - climate scientists, anti-scientists and citizens. Climate scientists collect temperature data. The user can choose between two decision-making systems. In the case of climate scientist quorum, the system is modelled after honeybees. When a quorum of scientists agree that climate change is happening, policy makers agree to either plant more forests and demolish factories or the other way around depending on the direction of temperature change. In the case of public majority, there has to be a majority consensus before action is taken.

HOW TO USE IT

Click the SETUP button to set up the world. Click the GO button to start the simulation. Choose the decision-making system. The action-interval sets the interval before the next action can take place. The smaller this number the more vigorous is the response to climate change. The quorum-threshold sets the number of scientists that must agree that climate change is taking place (in whichever direction) before action is taken. The temperature-threshold, in degrees, sets how much of temperature difference must take place before climate change is perceived by the climate scientists. The scientist-collection-interval sets the interval between which temperature data collection takes place. These two variables effectively determine how good a job the climate scientists are doing. Note that if climate-scientist quorum is chosen as the decision-making system then the public majority variables do not apply.

The majority-threshold sets the proportion of citizens that must agree that climate change is taking place before action is taken. Mean public wisdom sets the mean of a normal distribution for wisdom for citizens. Individuals with a wisdom value of 0.67 or more always defer to climate scientists. Individuals with wisdom value of -0.67 or less always defer to anti-scientists (the outcome is obvious, but is left in for completeness). Individuals with an in-beween value are equally persuaded by scientists and anti-scientists. Science-dissemination sets how mobile scientists are and hence, in effect, how well they are popularising the state of the climate. Anti-scientists take the contrary position to scientists. When anti-science dissemination is set high anti-scientists are effective in popularising their contrary position. If public wisdom is set high then the anti-science dissemination value does not apply. The default value for dissemination is set higher for anti-science than science to reflect the situation in the real world. In the context of global warming, Lord Christopher Monckton has one hundred times the presence on YouTube as John Houghton in the context of global warming. Monckton has been deacribed world’s leading global warming sceptic. However, his credentials are in journalism and classics and he has not even published one peer-reviewed scientific paper, let alone in climate science. Houghton is professor of atmospheric physics at Oxford University and co-chair of the Intergovernmental Panel on Climate Change's (IPCC) scientific assessment working group. The IPCC is a body of thousands of scientists comprehensively assessing the risk of climate change.

Scientist and citizen-perceivers plots the percentage of scientists and citizen that accept that global warming is taking place respectively. Initial-T is the initial and ideal temperature. Mean-T is the mean actual temperature of patches.

THINGS TO NOTICE

Much needs to be in place in order to deal effectively with climate change, otherwise climate could oscillate wildly. Whatever the decision-making system, the data gathering has to be good and action-interval needs to be appropriate. If the public majority system is chosen, then a lot more needs to be in place. Even if public wisdom is high, science dissemination needs to be high. If public wisdom is intermediate, then science dissemination needs to be much higher still, especially if there are anti-scientists around and especially if anti-science dissemination is high.

EXTENDING THE MODEL

There is no tipping point in this model. One way to implement this would be to have forests die off if the temperature is too high.

NETLOGO FEATURES

The diffuse primitive is used to diffuse oxygen and carbon dioxide. The random-normal function is used to create a public with a normal distribution of wisdom.

BIBLIOGRAPHY

Seeley, T. D. (2010) Honeybee Democracy. Princeton University Press, Princeton.

Seeley, T. (2010) The Five Habits of Highly Effective Honeybees. Princeton University Press, Princeton

Author information

Mike L Anderson Email: mike@mikelanderson.com

COPYRIGHT AND LICENSE

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

patches-own [
  co2             ;; amount of co2 on this patch
  o2              ;; amount of o2 on this patch
  temp            ;; temp on this patch
  ]

turtles-own [my-temp age x-origin y-origin home-range temp-diff wisdom]

globals [initial-temp max-temp min-temp max-factory min-factory max-forest min-forest action-timer ]

breed [ climate-scientist ]
breed [anti-scientist]
breed [ citizen ]
breed [ forest ]
breed [ factory ]
breed [policy-makers]

;;;;;;;;;;;;;;;;;;;;;;;;
;;; Setup procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape policy-makers "building institution"
  create-policy-makers 1   [ set size 1  set color gray  ]
  set-default-shape climate-scientist "citizen student"
  create-climate-scientist no-of-climate-scientists   [ set size 2  set color black  ]
  set-default-shape anti-scientist "person lumberjack"
  create-anti-scientist no-of-anti-scientists  [ set size 3  set color black  ]
  set-default-shape citizen "citizen"
  create-citizen no-of-citizens   [ set size 2  set color black];
  set-default-shape factory "house colonial"
  create-factory initial-no-of-factories   [ set size 2  set color red  ]
   set-default-shape forest "forest"
  create-forest initial-no-of-forests   [ set size 2 set color green  ]

  ask policy-makers [setxy max-pxcor max-pycor]
  ask factory [setxy random-xcor random-ycor]
  ask forest [setxy random-xcor random-ycor]
  ask climate-scientist [set x-origin random-xcor set y-origin  random-ycor setxy x-origin y-origin ]
  ask anti-scientist [set x-origin random-xcor set y-origin  random-ycor setxy x-origin y-origin ]
  ask citizen [set x-origin random-xcor set y-origin  random-ycor setxy x-origin y-origin set wisdom random-normal mean-public-wisdom 0.25]
  set max-factory initial-no-of-factories
  set min-factory initial-no-of-factories
  set max-forest initial-no-of-forests
  set min-forest initial-no-of-forests
  setup-patches
  reset-ticks
 set initial-temp 25
 set min-temp initial-temp
 set min-temp 25 set max-temp 25
end

to setup-patches
  ask patches
  [ recolor-patch ]
end

to recolor-patch  ;; patch procedure
if temp  >= 25 [ set pcolor scale-color red (co2 - o2) 10 0.1 ]
if temp < 25 [ set pcolor scale-color blue (o2 - co2) 10 0.1 ]
end

;;;;;;;;;;;;;;;;;;;;;
;;; Go procedures ;;;
;;;;;;;;;;;;;;;;;;;;;

to go  ;; forever button
  if not any? citizen [ stop ]
  if not any? climate-scientist [ stop ]
  if not any? forest [ stop ]
  if ticks = stop-experiment [stop]

   ask factory
  [ set co2 co2 + 1
    set o2 o2 - 1
    if o2 < 0 [set o2 0]
    set age age + 1
    if age > 500 + random 100 [hatch 1 [setxy random-xcor random-ycor set age 0 set size 2 set color red] ; move factories around
     die]
   ]
     diffuse co2 1

  ask forest
  [set o2 o2 + 1
   set co2 co2 - 1
   if co2 < 0 [set co2 0]
    set age age + 1
    if age > 500 + random 100 [hatch 1 [setxy random-xcor random-ycor set age 0 set size 2 set color green]
      die]
  ]
  diffuse o2 1

if action-timer < 1 [ask policy-makers
  [
  if decision-making-system = "climate-scientist quorum" and count climate-scientist with [color = red]   >= quorum-threshold  and ticks > 1
  ; plant forests and demolish factories occasionally
 [hatch-forest 1 [ setxy random-xcor random-ycor set age  0 set size 2 set color green set action-timer action-interval]  if count factory > 1 [ask one-of factory [die]] ]

 if decision-making-system = "climate-scientist quorum" and count climate-scientist with [color = blue]   >= quorum-threshold  and ticks > 1
 ; build factories and chop down forests forests occasionally
 [hatch-factory 1 [setxy random-xcor random-ycor set size 2 set color red set action-timer action-interval] if count forest > 1 [ask one-of forest [die]] ]

 ;climate-scientists are excluded from the majority vote because they form such a negligable proportion of citizens in real life
 if decision-making-system = "public majority" and  count citizen with [color = red] / count citizen > (majority-threshold / 100) and ticks > 1
 ; plant forests and demolish factories occasionally
 [hatch-forest 1 [ setxy random-xcor random-ycor set age  0 set size 2 set color green set action-timer action-interval ]  if count factory > 1 [ask one-of factory [die]] ]

 if decision-making-system = "public majority" and  count citizen with [color = blue] / count citizen > (majority-threshold / 100) and ticks > 1
 ; build factories and chop down forests forests occasionally
 [hatch-factory 1 [setxy random-xcor random-ycor set size 2 set color red set action-timer action-interval] if count forest > 1 [ask one-of forest [die]] ]
  ]
  ]

ask climate-scientist
  [
    set home-range science-dissemination
    move
    if ticks mod scientist-collection-interval = 0 [collect-data] ; determines interval between data collection
    ]

ask anti-scientist

[
 set home-range anti-science-dissemination
move
if count climate-scientist with [color = blue]   >= quorum-threshold  [set color red]
if count climate-scientist with [color = red]    >= quorum-threshold  [set color blue]
]

ask citizen
 [
  ;mean public wisdom low
  if count anti-scientist-here with [color = red] > 0  and wisdom <= -0.67 [set color red]
  if count anti-scientist-here with [color = blue]  > 0 and wisdom <= -0.67 [set color blue]

  ;mean public wisdom high
  if count climate-scientist-here > 0 and count climate-scientist with [color = red]  >= quorum-threshold and wisdom >= 0.67 [set color red]
  if count climate-scientist-here > 0 and count climate-scientist with [color = blue] >= quorum-threshold and wisdom >= 0.67 [set color blue]
  if count climate-scientist-here > 0 and count climate-scientist with [color = black] >= (no-of-climate-scientists - quorum-threshold) and wisdom >= 0.67 [set color black]

  ;mean public wisdom intermediate
  if count anti-scientist-here with [color = red] > 0  and wisdom > -0.67 and wisdom < 0.67 [set color red]
  if count anti-scientist-here with [color = blue] > 0 and wisdom > -0.67 and wisdom < 0.67  [set color blue]
  if count anti-scientist-here with [color = black]  > 0 and wisdom > -0.67 and wisdom < 0.67 [set color black]
  if count climate-scientist-here > 0 and count climate-scientist with [color = red]  >= quorum-threshold and wisdom > -0.67 and wisdom < 0.67 [set color red]
  if count climate-scientist-here > 0 and count climate-scientist with [color = blue] >= quorum-threshold and wisdom > -0.67 and wisdom < 0.67 [set color blue]
 ]

ask patches [set temp co2 / 8 - o2 / 8 + 25   recolor-patch ]
; temperature not solely dependent on forests and factories

if max-temp < mean [temp] of patches [set max-temp  mean [temp] of patches]
if min-temp > mean [temp] of patches [set min-temp  mean [temp] of patches]
if count factory > max-factory [ set max-factory count factory]
if count factory < min-factory [ set min-factory count factory]
if count forest > max-forest [ set max-forest count forest]
if count forest < min-forest [ set min-forest count forest]
set action-timer action-timer - 1
tick
end


;;;;;;;;;;;;;;;;;;;;;
;;;  Sub-routines ;;;
;;;;;;;;;;;;;;;;;;;;;

to add-factory
hatch-factory 1 [setxy random-xcor random-ycor set size 2 set color red set action-timer action-interval] if count forest > 1 [ask one-of forest [die]]
end

to  add-forest
hatch-forest 1 [ setxy random-xcor random-ycor set age  0 set size 2 set color green set action-timer action-interval]  if count factory > 1 [ask one-of factory [die]]
end

to move
 rt random-float 90 - random-float 90
 fd 1
 if xcor > x-origin + home-range [set xcor x-origin + home-range] ; keep individual within home range
 if xcor < x-origin - home-range [set xcor x-origin - home-range]
 if ycor > y-origin + home-range [set ycor y-origin + home-range]
 if ycor < y-origin - home-range [set ycor y-origin - home-range]
end

to collect-data
set my-temp [temp] of patch-here
set temp-diff my-temp - initial-temp
if temp-diff  >=  temperature-threshold  [set color red]
if temp-diff < temperature-threshold  and temp-diff  > temperature-threshold * -1  [set color black]; undecided catgeory
if temp-diff  <= temperature-threshold * -1  [set color blue]
end

to-report average-temp
  report mean [temp] of patches
end

There is only one version of this model, created over 12 years ago by Mike L Anderson .

Attached files

File	Type	Description	Last updated

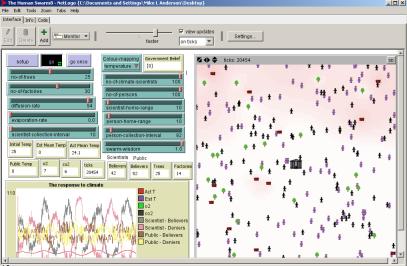

ClimateWise 1.2.png	preview	Preview for 'ClimateWise 1.2'	over 12 years ago, by Mike L Anderson	Download
