The Chemical Bond

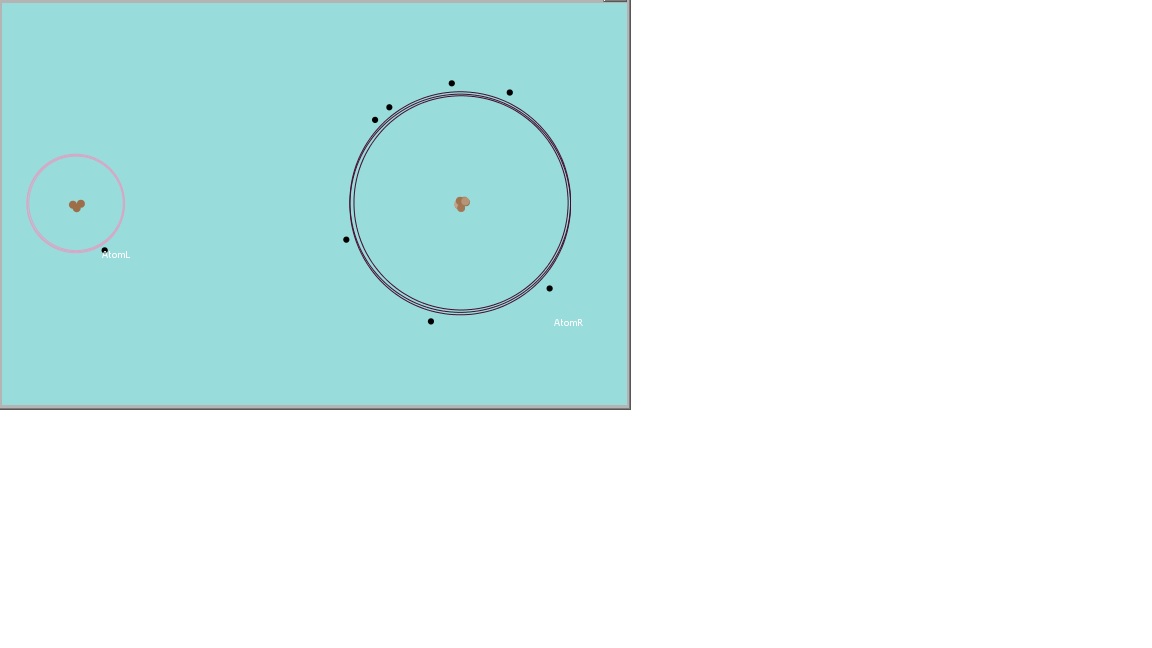

The Chemical Bond preview image

2 collaborators

Asnat8 Asnat Zohar (Author)
Default-person seena yaseen-omar (Team member)

Tags

chemistry

Tagged by Asnat Zohar almost 11 years ago

Model group uhaifa-modeling-13 | Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.4 • Viewed 317 times • Downloaded 68 times • Run 0 times
Download the 'The Chemical Bond' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [ nuclei nucleus ]
breed [ electrons electron ]
breed [ electronLs electronL ]
breed [ electronRs electronR ]

breed [ protons proton ]

breed [ neutrons neutron ]
globals [distnaceab  AtomL_size AtomR_size ElectronegativityL ElectronegativityR ]


;electrons-own

to electorn_attributes
set color black
set shape "circle"
    set size 1
set heading random 360
end


;protons-own

to  proton_attributes
set color brown
set shape "circle"
    set size 1.3
set heading random 360
end


;setup

to setup
  clear-all
  ask patches [ set pcolor  87 ]


create-turtles 2
ask turtles [set ycor 0 ]
ask turtles [ set shape "circle 22" ]

;;;;;;;;;;;;;;;;setup AtomL ::::::::::::::::::::::::::::

ask turtle 0
[

set label "AtomL"

set AtomL_size  15 - 0.2 * ProtonsL + AtomL_ValE * 3


set size AtomL_size

set xcor min-pxcor + AtomL_size / 1.5

set  color  129 - AtomL_ValE

set ElectronegativityL  AtomL_ValE * 4 / 7

set heading 90



   ]


;;;;;;;;;;;;;;;;;;setup AtomR ::::::::::::::::::::::::::

ask turtle 1
[

set label "AtomR"

set heading -90

set AtomR_size  20 - 0.2 * ProtonsR  + ( 8 - AtomL_ValE ) * 3

set size AtomR_size


set xcor max-pxcor - AtomR_size / 1.5


set color  129 - ( 8 - AtomL_ValE )

set ElectronegativityR ( 8 - AtomL_ValE ) * 4 / 7




]


;;;;;;;;;;;;;;setup valence electrons: on Left atom and on Right atom  ;;;;;;;;;;;;;;;


create-electronLs  AtomL_ValE
[
 electorn_attributes


setxy  [ xcor ]  of one-of turtles with [ label = "AtomL" ]  [ ycor ]  of one-of  turtles with [ label = "AtomL" ]

fd AtomL_size / 2

set heading   [ heading ] of one-of turtles with [ label = "AtomL" ]



]



create-electronRs  ( 8 - AtomL_ValE  )
[

electorn_attributes


setxy   [ xcor ] of one-of turtles with [ label = "AtomR" ]  [ ycor ] of one-of turtles with [ label = "AtomR" ]

fd AtomR_size / 2

set heading  [ heading ]  of one-of turtles with [ label = "AtomR" ]


]




;;;;;;;;;;;;;;;setup protons


create-protons  ProtonsL
[
 proton_attributes



setxy item 0 [ xcor ] of turtles with [ label = "AtomL" ] item 0 [ ycor ] of turtles with [ label = "AtomL" ]
set  heading random 360
fd  size / 2


set heading item 0 [ heading ] of turtles with [ label = "AtomL" ]



]

create-protons  ProtonsR
[
 proton_attributes



setxy item 0 [ xcor ] of turtles with [ label = "AtomR" ] item 0 [ ycor ] of turtles with [ label = "AtomR" ]

set color color + random-float 2
set  heading random 360
fd  size / 2

set heading item 0 [ heading ] of turtles with [ label = "AtomR" ]



]




ask turtle 0 [ set distnaceab distance  turtle 1 ]
 reset-ticks
display
end



;;;;;;;;;;;;;;;;;;;;;;;;; move electrons ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to moving-e [ electron_id ]
 let AtomR one-of turtles with [ label = "AtomR" ]
 let distance_toAtom 0

 ask electron_id [

 face AtomR

set distance_toAtom distance  AtomR - AtomR_size / 2

 ]

; move all electrons
foreach n-values 20 [?]
[

 ask electron_id [fd distance_toAtom / 20]
 display


]

 ask electron_id [ set heading  [ heading ] of AtomR
 set breed electronRs]
end


; atoms meet

to go
ask turtles

[

forward 0.5
]

 if ( [ xcor ] of turtle 1  - [  xcor ] of turtle 0 < ( AtomL_size / 1.5  + AtomR_size / 1.5 ) )  [ ask electronLs [moving-e  electronl who] ]

 ask turtle 0 [ set distnaceab distance  turtle 1 ]

 if ( [ xcor ] of turtle 1  - [  xcor ] of turtle 0 < ( AtomL_size / 2  + AtomR_size / 2  ) )  [ stop ]


 tick
end



; F (between q1 and q2) = - (q1 * q2) / r^2

; F (between every e and the two nucleus 1 and 2 ) = -q1e/r1e^2 - q2e/r2e^2

; F = - qL * eL / (eL to AtomR) -  qR * eR / (eR to AtomL)

; qL = ProtonsL
; eL = AtomL_ValE
; r1e = distance eL - xcor of turtle 1

; qR = ProtonsR
; eR = AtomR_ValE
; r2e = distance eR - xcor of turtle 0



















There are 9 versions of this model.

Uploaded by When Description Download
Asnat Zohar almost 11 years ago updated info Download this version
Asnat Zohar almost 11 years ago Added Info tab Download this version
Asnat Zohar almost 11 years ago added electronegativity Download this version
Asnat Zohar almost 11 years ago Atoms size related to number of protons and electrons Download this version
Asnat Zohar almost 11 years ago electron move and than atoms attract Download this version
Asnat Zohar almost 11 years ago all electrons move Download this version
Asnat Zohar almost 11 years ago electron jump Download this version
Asnat Zohar almost 11 years ago new Download this version
Asnat Zohar almost 11 years ago Initial upload Download this version

Attached files

File Type Description Last updated
Preview.jpg jpeg Preview almost 11 years ago, by Asnat Zohar Download

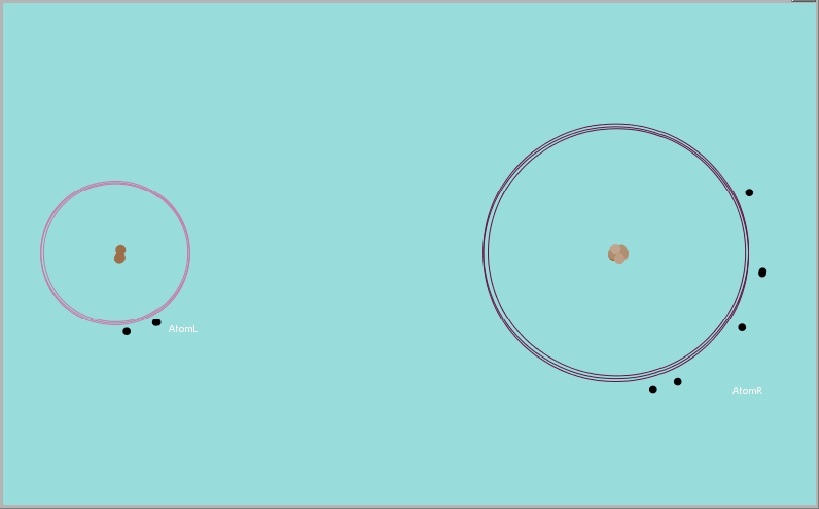

The Chemical Bond.png preview Bigger pict almost 11 years ago, by Asnat Zohar Download

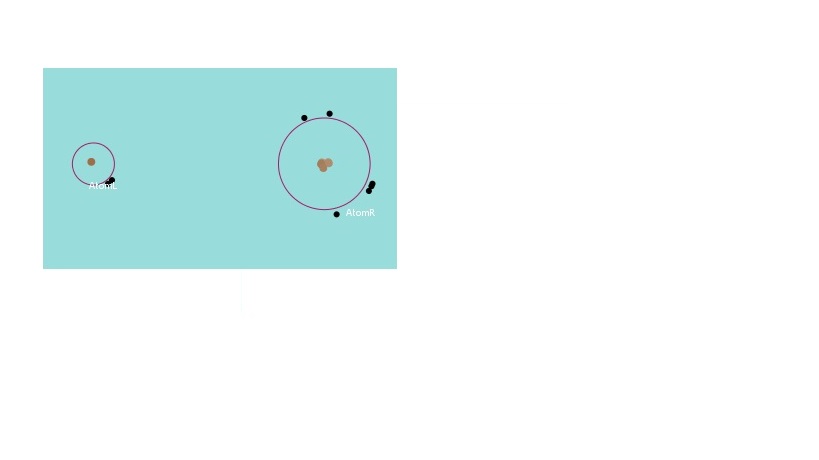

The Chemical Bond.png preview The chemical bond preview almost 11 years ago, by Asnat Zohar Download

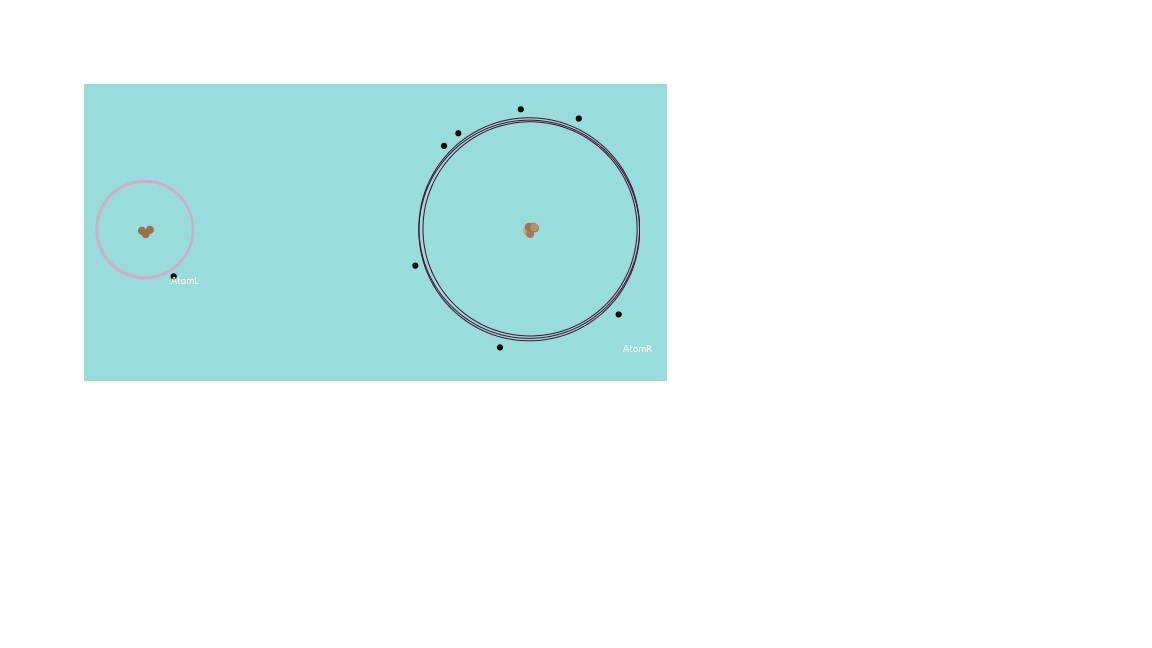

The Chemical Bond.png preview Updated preview file almost 11 years ago, by Asnat Zohar Download

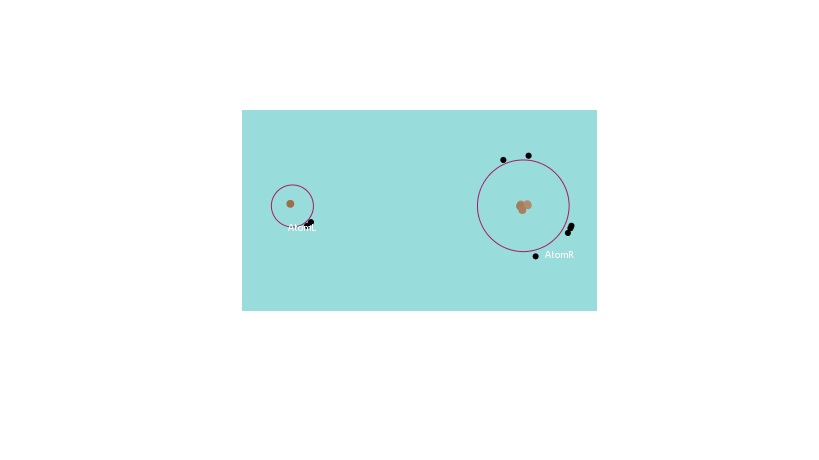

The Chemical Bond.png preview Updated preview file almost 11 years ago, by Asnat Zohar Download

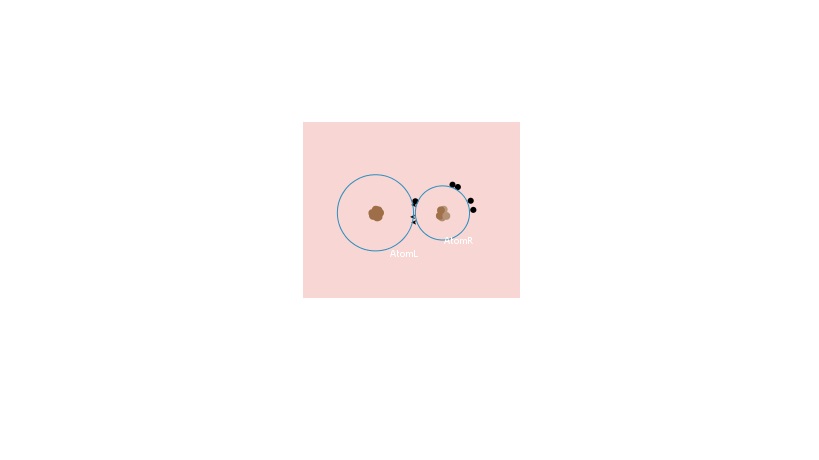

The Chemical Bond.png preview Updated preview file almost 11 years ago, by Asnat Zohar Download
The Chemical Bond.png preview bigger almost 11 years ago, by Asnat Zohar Download
הפוסטר של סינא ואסנת.docx word Poster almost 11 years ago, by Asnat Zohar Download
מטלה מסכמת סינא ואסנת.doc word Final task, Sinna and Asnat almost 11 years ago, by Asnat Zohar Download

This model does not have any ancestors.

This model does not have any descendants.
