Invasive Plants

globals
[
  grid-x-inc               ;; the amount of patches in between two roads in the x direction
  grid-y-inc               ;; the amount of patches in between two roads in the y direction

  ;; patch agentsets
  roads         ;; agentset containing the patches that are roads
]

patches-own [
  invasive?       ;; indicates if the patch is occupied by invasive species
  disturbed?       ;;indicates if patch is disturbed
  invaded-neighbors  ;; counts how many neighboring patches have invasive species
  disturbed-neighbors  ;; counts how many neighboring patches are disturbed

]

to setup
  ;; (for this model to work with NetLogo's new plotting features,
  ;; __clear-all-and-reset-ticks should be replaced with clear-all at
  ;; the beginning of your setup procedure and reset-ticks at the end
  ;; of the procedure.)
  __clear-all-and-reset-ticks
  set grid-x-inc world-width / grid-size-x
  set grid-y-inc world-height / grid-size-y

  ;; First we ask the patches to draw themselves and set up a few variables

  if have-roads = true [setup-roads]
    ask patches
      [ if pcolor != white
      [ ifelse random-float 1000.0 < initial-density
        [ invade-patch ]
        [ reclaim-patch ] ] ]

  plot-patches
end

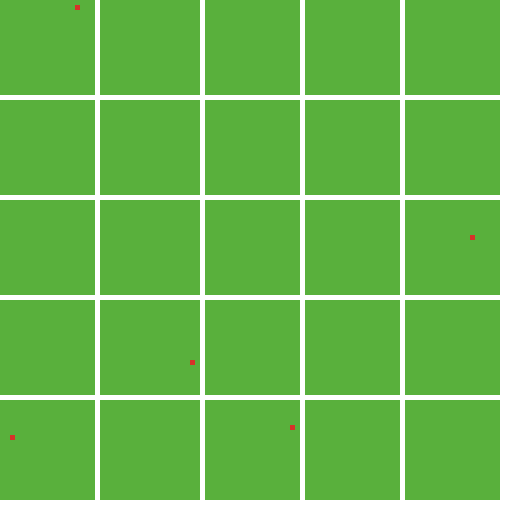

to setup-roads

  ;; initialize the global variables that hold patch agentsets
  set roads patches with
    [(floor((pxcor + max-pxcor - floor(grid-x-inc - 1)) mod grid-x-inc) = 0) or
    (floor((pycor + max-pycor) mod grid-y-inc) = 0)]

  ask roads [ set pcolor white set disturbed? true set invasive? false]
end

to invade-patch
 set disturbed? false
  set invasive? true
  set pcolor red
end

to reclaim-patch
  set disturbed? false
  set invasive? false
  set pcolor green
end

to step
  ask patches
    [ set invaded-neighbors count neighbors with [invasive?] set disturbed-neighbors count neighbors with [disturbed?]
     ]
  ;; Starting a new "ask patches" here ensures that all the patches
  ;; finish executing the first ask before any of them start executing
  ;; the second ask.  This keeps all the patches in synch with each other,
  ;; so the births and deaths at each generation all happen in lockstep.
  ask patches
    [ ifelse invaded-neighbors > 0 and invaded-neighbors + disturbed-neighbors >= invade-threshold and pcolor != white
        [ invade-patch ]
        [ if invaded-neighbors + disturbed-neighbors < reclaim-threshold and pcolor != white
            [ reclaim-patch ] ] ]
  tick
  plot-patches
end

to add-invasive
  while [mouse-down?]
    [ ask patch mouse-xcor mouse-ycor
        [ invade-patch ]
      display ]
end

to remove-invasive
  while [mouse-down?]
    [ ask patch mouse-xcor mouse-ycor
        [ reclaim-patch ]
      display ]
end

to plot-patches ;; this creates creates the bar graph
    set-current-plot "Invasive and Native Patches"
    clear-plot
    set-current-plot-pen "native"
    plotxy 1 count patches with [pcolor = green]
    plot-pen-down
    set-current-plot-pen "invasive"
    plotxy 2 count patches with [pcolor = red]
    plot-pen-down
end

; This model was created as part of the 2008 BioQUEST Curriculum Consortium
; Summer Workshop.
;
; Copyright 2008 by Steven Brewer.  All rights reserved.
; This model was inspired by many of the sample Netlogo models and parts
; were based on functions from the "Life" and "Traffic Grid" models.  (Wilensky, U. (2001).
; NetLogo Enzyme Kinetics model. http://ccl.northwestern.edu/netlogo/models/EnzymeKinetics.
; Center for Connected Learning and Computer-Based Modeling, Northwestern University,
; Evanston, IL.)
;
; Permission to use, modify or redistribute this model is hereby granted,
; provided that both of the following requirements are followed:
; a) this copyright notice is included.
; b) this model will not be redistributed for profit without permission
;    from the authors.
; Contact the authors for appropriate licenses for redistribution for
; profit.
;
; To refer to this model in academic publications, please use:
; Brewer, S.D. (2008).  Invasive Plants and Disturbance.  http://bcrc.bio.umass.edu/netlogo/models/InvasivePlants
; Biology Computer Resource Center
;
; In other publications, please use:
; Copyright 2008 by Steven Brewer.  All rights reserved.  See
; http://bcrc.bio.umass.edu/netlogo/models/InvasivePlants
; for terms of use.
