REGULOPOLIS v0.6c

;;;;;;;;;;;;;;;;;;;;;;
;;; Identification ;;;
;;;;;;;;;;;;;;;;;;;;;;

;; Program Name: REGULOPOLIS
;; Author(s): Tony Casey
;; Email: tony.casey@ucdconnect.ie
;; Requirements: Netlogo 5.2

;;;;;;;;;;;;;;;;;;;;;;;
;;; Version Control ;;;
;;;;;;;;;;;;;;;;;;;;;;;

;; Version: v0.01  9th  July 2015   (Tony Casey)    Initial version.
;;          v0.1   23rd July 2015   (Tony Casey)    Added in basic 'resource' and 'distance' based modeling.
;;                                                  Added in 'review panel' logic.
;;                                                  Added in 'spring' visualisation logic (after Uri Wilensky).
;;                                                  Split orchestration / choreography code.
;;                                                  Added in 'scorecard' logic.
;;                                                  Added in ECJ enforcement logic.
;;          v0.2   24th July 2015   (Tony Casey)    Added in 'policy interdependence' logic, weighted links are conceptualised as a proxy for policy interdependence.
;;          v0.3   30th July 2015   (Tony Casey)    Added in logic to ensure that algorithmically generated hubs are plausible, i.e. SRA's and large countries.
;;          v0.4a  31st July 2015   (Tony Casey)    Added in path-distance from NRA to Agency/Network logic as proxy for time to complete OECD stage
;;          v0.5   01st Aug  2015   (Tony Casey)    Added in variable centrality
;;          v0.6b  13th Aug  2015   (Tony Casey)    Added in 'oversight'logic (a.k.a. Abbott et al.), compliance plot
;;          v0.6c  14th Aug  2015   (Tony Casey)    Added in 'goal divergence logic' (a.k.a Abbott et al.), refined compliance plot, much tweaking of compliance logic

;;;;;;;;;;;;;;;;;;;;;;
;;; General ToDo's ;;;
;;;;;;;;;;;;;;;;;;;;;;

;; Tidy up temporarilyInSetUpCode (any stable parameters should be moved to user-selectable interface).
;; Independent domestic oversight variable for each NRA
;; Independent goal divergence variable for each NRA

;;;;;;;;;;;;;;;;
;;; Acronyms ;;;
;;;;;;;;;;;;;;;;

;; ERR           European Regulatory Regime
;; ERN           European Regulatory Network
;; IN            Independent Network
;; CN            Commission Network
;; A             Agency;
;; AN            Agencified Network
;; NA            Networked Agency
;; NRA           National Regulatory Authority
;; SNA           Supra National Authority
;; NT            Node Type
;; EPC           Epistimic Community
;; COM           European Commission
;; EPRG          European Regulator Group for Posal Services
;; MS            Member State



;;;;;;;;;;;;;;;;;;
;;; Extensions ;;;
;;;;;;;;;;;;;;;;;;

extensions [matrix nw]

;;;;;;;;;;;;;;;;;
;;; Interface ;;;
;;;;;;;;;;;;;;;;;

;; enforcementPyramid?        ; user defined chooser on inteface, takes values 'system defined (all)', 'EU review panel', 'EU scorecard', 'ECJ ruling', from 'soft' to 'hard' enforecement.
;; reveiwPanelEffect?         ; user defined slider on interface, 0 to 100% uplift of regulatory compliance on 'regulatory gap' as a result of effect of review panel.
;; rcPeerEffectOnGap?         ; user defined slider on interface, 0 to 100% uplift of regulatory compliance on 'regulatory gap' as a result of effect of scorecards.
;; preferential-attachment?   ; type of 'centrality' measure, used to layout visualisation and weight path distance from NRA to central agency/network
;; tight DomesticOversight?   ; user defined switch on interface, simple global variable, in later versions could be set independently for each NRA
;; goalDivergence?            ; user defined slider on interface, takes values 0 = none, 1 = medium, 2 = high

;;;;;;;;;;;;;;;;;;;;;;;;
;; Agent Data Model  ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

globals [
  euEnlargementNum            ; can take values 6, 12, 15, 25, 28
  errNum                      ; varies depending how many non-NRA agents
  errList                     ; varies depending on EU-6, EU-12, EU-15, EU-25, EU-28, Commission, Epistemic Community, Independent Network etc.
  errMatrix                   ; to hold externally excell created text matrix
  errType                     ; "12" used (1-12 Levi-Faur ERR types identified, differentiates topology and processing rules, partially used this version)
  errRegulatoryDistance       ; holds list representing "distance" of new eu-regime to existing nra-regime
  errSharedOntology           ; holds list representing shared "understanding" i.e. existance/adoption of standards = high, non-existance/non-adoption = low
  errCycle                    ; counter holding the current regulatory regime cycle (used to maintain overall state of regulatory regime)
  errRegTranspositionNum      ; stage number for regulatory transposition, currently 7 (stage 7)
  avgCompliance               ; regulatory regime average compliance (total pct-complance / euEnlargementNum)
  medCompliance               ; regulatory regime median compliance
  regulatory-hub1             ; keep a track of where the important hubs are
  ia-stage-time-required      ; default is 60 days per ia-stage, but this can be multiplied by an NRA's shortest path to an EU agency or network as a proxy for co-ordination effort required
  allTickedOut                ; so we know when to stop the model
  p                           ; general purpose counter
]

breed [errNodes errNode]      ; European Regulatory Regime Node, EU-15 or Commission, Epistemic Community, Independent Network
breed [SNAs SNA]              ; "EPRG" used (European Regulator Group for Postal Services, many other INs identified  by Levi-Faur, partially used this version)
breed [NRAs NRA]              ; "EU-15" used (To impliment EU-6, EU-12, EU-15, EU-25, EU-28, partially used this version)
breed [INs IN]                ; not used this version
breed [CNs CN]                ; not used this version
breed [As A]                  ; not used this version
breed [ANs AN]                ; not used this version
breed [NAs NA]                ; not used this version

errNodes-own [
  node-id                     ; IE, UK, DE, EPRG etc.
  node-type                   ; SNA, NRA, EPC etc.)
  ia-stage                    ; "impact assessment-stage" values 0 to 8, drives the transposition of EU regulation to domestic regulation (based on OECD (OffCom) 'Better Regulation', 2005)
                              ; (Stage) 0:  undefined
                              ; (Stage) 1:  defining the issue we need to consider and identifying the citizen or consumer interest
                              ; (Stage) 2:  defining the policy objective
                              ; (Stage) 3:  identifying the options
                              ; (Stage) 4:  identifying the impacts on different types of stakeholders
                              ; (Stage) 5:  identifying any impacts on competition
                              ; (Stage) 6:  assessing the impacts and choosing the best option
                              ; (Stage) 7:  transpose EU regulation to domestic regulation
                              ; (Stage) 8:  (enforcement pyramid) EU review panel
                              ; (Stage) 9:  (enforcement pyramid) EU scorecard
                              ; (Stage) 10: (enforcement pyramid) ECJ ruling
  ia-stage-time-passed        ; value is 0 to 59, placeholder for elapsed time at each is-stage
  stand-off                   ; binary, takes values "yes" "no", it is possible that regulation is 'moth-balled' indefinitely in consultation stalement with stake-holders
  oecd-ceiling                ; where in the OECD IA cycle we are stuck, currently takes the values default 0 (all OECD IA stages possible) but the value 4 if a strong NRA is pushing back and the value 6 if a weak NRA cannot get it accross the domestic legislative line
  eurozone-cluster            ; PIIGS, Northern, Scandinavian etc., not used this version
  regulatory-distance         ; distance of existing NRA regime from proposed EU regime
  enforcement-escalation      ; takes values 0,1,2,3; maintains where each NRA is in the enforcement pyramid
  pct-compliance              ; percent compliance of NRA regime to proposed EU regime
  world-view                  ; distance of errNode view from "zeitgeist"
  ontological-distance        ; distance of "formal" standards
  zeitgeist                   ; owned by the Epistemic Community
  budget                      ; owned by the European Commission
  resources                   ; staff, budget, capacity
  all-ticked-out              ; so we know when to stop NRA
]

SNAs-own [
  working-groups
  review-panels
]

links-own [
  policyInterdependence       ; a.k.a. 'weight'
]

;;;;;;;;;;;;;;;;;;;;;;;;
;;; Setup Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape errNodes "circle"
  setupERR                    ; setup the European Regulatory Regime
  reset-ticks
end

to setupERR
  temporarilyInSetUpCode      ; all this procedure to be user selectable and eventually moved to interface
  setupERRNetwork
  setupERRNodes
  setupERRLinks
end

to temporarilyInSetUpCode     ; general first-cut dumping ground for potential independent variable parameters before moving to user selectable interface
  set errNum 18               ; EU-15, plus Commission, Epistemic Community, Independent Network
  set euEnlargementNum 15     ; EU-15
  set errType 12
  ; test data arranged in ascending order of centrality
  set errList ["LU" "FI" "IE" "PT" "EL" "AT" "DK" "BE" "NL" "ES" "SE" "IT" "UK" "FR" "DE" "EPC" "Commission" "Reg Agency"]
  ; test data which is mapped to errList
  set errRegulatoryDistance [0 1 0 -2 -2 0 0 -1 0 0 1 1 1 2 0 1 0 0]
  ; test data which is mapped to errList
  ;set errSharedOntology [1 0 0 0 -1 0 0 1 -1 0 0 0 0 0 1 0 1 -1]
  set-current-directory "C:\\Users\\Tony\\OneDrive\\Msc Public Policy (UCD)\\Course Descriptions\\Thesis (GSHS40200)\\My NetLogo Code"
  set errMatrix "errMatrix.txt"
  set errRegTranspositionNum 7; currently 7 because 'regulatory transposition happens at 7 in the 8 stage OECD impact assessment model
  set ia-stage-time-required 2;default is 60 days per stage * length of NRA path to Agency/Network hub (as a proxy for the coordination effort required)
  set allTickedOut "no"
end

to setupERRNetwork
  if regulatoryForm? = "orchestration (star)" [                                          ; create 'star' network from excel sheet
    nw:load-matrix errMatrix errNodes links]                                             ; test matrix to be replaced with empirically constructed matrix in later versions
  if regulatoryForm? = "choreography (small-world)" [                                    ; create 'small-world' network using the generator in netlogo nw exension
    nw:generate-small-world errNodes links 6 3 2.0 false]                                ; with live data this will be swapped out for empirically constructed matrix
  if regulatoryForm? = "choreography (scale-free)" [                                     ; create 'scale-free' network using the generator in netlogo nw exension
    nw:generate-preferential-attachment errNodes links errNum]                           ; with live data this will be swapped out for empirically constructed matrix
end

to setupERRNodes                                                                         ; populate network nodes
  if regulatoryForm? = "orchestration (star)" [                                          ; Nice and easy, matrix data is already ordered plausibly
    ask errNodes [
      print (word "node-id = " node-id " who = " who)
      set node-id item who errList
      print (word "node-id = " node-id " who = " who)
      set regulatory-distance item who errRegulatoryDistance
      set ia-stage 0
      set ia-stage-time-passed 0
      set resources 50
      set pct-compliance 0
      set all-ticked-out "no"
      set stand-off "no"
      set oecd-ceiling 0
      if labelsOn? [
        set label node-id]
      ifelse (node-id != "Reg Agency") and (node-id != "Commission") and (node-id != "EPC")
        [set node-type "NRA"
         set color red
        ]
        [set node-type "SRA"
         if node-id = "Reg Agency"[
           set regulatory-hub1 who]                                                     ; so we can calculate the shortest distance
         ifelse node-id = "EPC"
           [set color green]
           [set color blue]
         ]
    ]
  ]
  if (regulatoryForm? = "choreography (small-world)") or (regulatoryForm? = "choreography (scale-free)") [ ; These networks generated algorithmically so needs some pre-processing to ensure hubs are plauasable, i.e SRA's and big countries
    set p 0
    foreach sort-on [runresult measure] errNodes [
      ask ? [
        set node-id item p errList
        print (word "p = " p " errList = " (item p errList))                            ; debug code
        set regulatory-distance item who errRegulatoryDistance
        set ia-stage 0
        set ia-stage-time-passed 0
        set resources 50
        set pct-compliance 0
        set all-ticked-out "no"
        set stand-off "no"
        set oecd-ceiling 0
        if labelsOn? [
          set label node-id]
        ifelse (node-id != "Reg Agency") and (node-id != "Commission") and (node-id != "EPC")
          [set node-type "NRA"
           set color red
          ]
          [set node-type "SRA"
             if node-id = "Reg Agency" [
               set regulatory-hub1 who
               print (word "regulatory-hub1 = " regulatory-hub1)                        ; debug code
               set node-id "Reg Body"
               if labelsOn? [
                 set label node-id]                                                     ; No agencies in this regulatory form
             ]
             ifelse node-id = "EPC"
               [set color green]
               [set color blue]
          ]
      set p p + 1
      ]
    ]
 ]
end

to setupERRLinks
  if (regulatoryForm? = "choreography (small-world)") or (regulatoryForm? = "choreography (scale-free)") [
    ; these networks generated algorithmically so make sure there are no orphan "EPC" or "Commission" nodes not linked to "Reg Body"
    ask errNodes [
      if (node-id = "EPC") or (node-id = "Commission") [
        if not (link-neighbor? errNode regulatory-hub1) [
          create-link-with (errNode regulatory-hub1) ]
      ]
    ]
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;
;;; Main Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;

to go
  ifelse allTickedOut = "no" [
    errConverge                                                                         ; main processing loop, NRA regulation 'converges' on EU directive
    foreach sort errNodes [                                                             ; debug code
      ask ? [print (word "who = " who " id = " node-id " node-type = " node-type " ia = " ia-stage " rd = " regulatory-distance " resources = " resources " tick = " ticks " oecd-ceiling = " oecd-ceiling " pct compliance = " pct-compliance)]
      ask ? [print (word "path length to agency/network = " (nw:distance-to (errNode regulatory-hub1)))]
    ]
  ]
    [stop]
  if all? (errNodes with [node-type = "NRA"]) [all-ticked-out = "yes"]
    [set allTickedOut "yes"]
  adjust-sizes
  layout
  tick
end

to errConverge                                                                   ; loop through the OECD 'better regulation' impact assessment life-cycle; core logic is 'resources' and 'distance' based (to which is be added progressively more sophisticated agent behaviour)
  foreach sort errNodes [
    ask ? [
      if (ia-stage < errRegTranspositionNum) [                                   ; i.e. regulation not yet 'transposed'
        ifelse ia-stage = 0 [
          if regulatory-distance = 0
            [set ia-stage 3]                                                     ; low domestic alignment required
          if (regulatory-distance = 1) or (regulatory-distance = -1)             ; left/right behaviour not differentiated this version
            [set ia-stage 2]                                                     ; higher domestic alignment required
          if (regulatory-distance = 2) or (regulatory-distance = -2) [           ; left/right behaviour not differentiated this version
            if tightDomesticOversight? [
              set oecd-ceiling 4]                                                ; the strong NRA is going to push back
            set ia-stage 1                                                       ; highest domestic alignment required
          ]
          ]
          [ifelse ia-stage-time-passed < (ia-stage-time-required * (nw:distance-to (errNode regulatory-hub1)))
             [set ia-stage-time-passed ia-stage-time-passed + 1]
             [ifelse oecd-ceiling != 0                                           ; put the strong NRA into a holding pattern
               [ifelse (ia-stage = oecd-ceiling) and (enforcementPyramid? != "3. ECJ ruling (all)") ; nuclear option required to break out of holding pattern
                 [set ia-stage-time-passed 0
                   set stand-off "yes"
                   if all-ticked-out = "no" [
                     set resources resources - 5]
                 ]
                 [set ia-stage ia-stage + 1
                  set ia-stage-time-passed 0
                  if ia-stage = oecd-ceiling [
                    set stand-off "yes"
                  ]
                  if all-ticked-out = "no" [
                    set resources resources - 5]
                 ]
               ]
               [set ia-stage ia-stage + 1
                set ia-stage-time-passed 0
                if all-ticked-out = "no" [
                  set resources resources - 5]
               ]
            ]
          ]
      ]
      if (ia-stage = errRegTranspositionNum) and (node-type = "NRA") [           ; OECD stage 7, regulation transposed, set pct-compliance of NRAs
        ifelse ia-stage-time-passed < (ia-stage-time-required * (nw:distance-to (errNode regulatory-hub1)))
           [set ia-stage-time-passed ia-stage-time-passed + 1]
           [set ia-stage-time-passed 0
            set ia-stage ia-stage + 1
            if all-ticked-out = "no" [
                set resources resources - 5]
            if (regulatory-distance = 0)
              [set pct-compliance 90]
            if (regulatory-distance = 1) or (regulatory-distance = -1)
              [set pct-compliance 70]
            if (regulatory-distance = 2) or (regulatory-distance = -2)
              [set pct-compliance 50]
            if (enforcementPyramid? = "4. (none)")
              [set all-ticked-out "yes"]
            ]
        ]

      if (ia-stage > errRegTranspositionNum) and (node-type = "NRA") [
      ; finish, regulation 'transposed' but EU enforcement pyramid may apply 'peer' preasure to increase domestic compliance
        if (enforcementPyramid? = "1. EU review panel (1 only)")[
          if ia-stage = errRegTranspositionNum + 1 [
            ifelse ia-stage-time-passed < (ia-stage-time-required * (nw:distance-to (errNode regulatory-hub1))) [
              errReviewPanel
              set ia-stage-time-passed ia-stage-time-passed + 1]
             [if all-ticked-out = "no" [
                set resources resources - 5]
              set all-ticked-out "yes"]
          ]
        ]
        if (enforcementPyramid? = "2. EU scorecard (1 and 2)") or (enforcementPyramid? = "0. 'soft' default (1 and 2)")[
          if ia-stage = errRegTranspositionNum + 1 [
            ifelse ia-stage-time-passed < (ia-stage-time-required * (nw:distance-to (errNode regulatory-hub1))) [
              errReviewPanel
              set ia-stage-time-passed ia-stage-time-passed + 1]
             [set ia-stage ia-stage + 1
              set ia-stage-time-passed 0
              if all-ticked-out = "no" [
                set resources resources - 5]
             ]
          ]
          if (ia-stage = errRegTranspositionNum + 2) [
            ifelse ia-stage-time-passed < (ia-stage-time-required * (nw:distance-to (errNode regulatory-hub1))) [
               print (word "got into 2nd loop " "ia-stage = " ia-stage)
               errScoreCard
               set ia-stage-time-passed ia-stage-time-passed + 1]
              [if all-ticked-out = "no" [
                 set resources resources - 5]
               set all-ticked-out "yes"]
          ]
        ]
        if (enforcementPyramid? = "3. ECJ ruling (all)") [
          if ia-stage = errRegTranspositionNum + 1 [
            ifelse ia-stage-time-passed < (ia-stage-time-required * (nw:distance-to (errNode regulatory-hub1))) [
              print (word "got into 1st loop " "ia-stage = " ia-stage)
              errReviewPanel
              set ia-stage-time-passed ia-stage-time-passed + 1]
             [set ia-stage ia-stage + 1
              set ia-stage-time-passed 0
              if all-ticked-out = "no" [
                set resources resources - 5]
             ]
          ]
          if (ia-stage = errRegTranspositionNum + 2) [
            ifelse ia-stage-time-passed < (ia-stage-time-required * (nw:distance-to (errNode regulatory-hub1))) [
              print (word "got into 2nd loop " "ia-stage = " ia-stage)
              errScoreCard
              set ia-stage-time-passed ia-stage-time-passed + 1]
             [set ia-stage ia-stage + 1
              set ia-stage-time-passed 0
              if all-ticked-out = "no" [
                set resources resources - 5]
            ]
          ]
          if (ia-stage = errRegTranspositionNum + 3) and (regulatoryForm? = "orchestration (star)") [                   ; the nuclear option is only available to agencies with statutory powers
              print (word "got into 2.5th loop " "ia-stage = " ia-stage)
            ifelse (ia-stage-time-passed < (ia-stage-time-required * (nw:distance-to (errNode regulatory-hub1)))) [
              print (word "got into 3rd loop " "ia-stage = " ia-stage)
              errECJRuling
              set ia-stage-time-passed ia-stage-time-passed + 1]
             [if all-ticked-out = "no" [
                set resources resources - 5]
              if stand-off = "no" [
                set all-ticked-out "yes"]
             ]
          ]
          if (ia-stage = errRegTranspositionNum + 3) and (regulatoryForm? != "orchestration (star)") [
              if stand-off = "no" [
                set all-ticked-out "yes"]
          ]
        ]
      ]
      ]
    ]
end

;to-report path-length
;  report task [ nw:path-to turtle (who with (node-id = "Reg Agency")) ]
;end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;; Enforcement Pyramid Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to errReviewPanel                                                                                                  ; modelled to effect 'volume' of domestic regulation (after Maggetti & Gilardi, 2014)
  set avgCompliance mean [pct-compliance] of errNodes with [node-type = "NRA"]                                     ; peer uplift a pct of 'un-transposed' i.e. the regulatory gap, another possibility is simple peer uplift of pct 'transposed', should be user selectable in new version
  set medCompliance median [pct-compliance] of errNodes with [node-type = "NRA"]
  print (word "pct compliance = " pct-compliance " rp average compliance = " avgCompliance " oecd ceiling = " oecd-ceiling " ia-stage = " ia-stage)                         ; debug code
  ifelse (pct-compliance >= avgCompliance) or (node-type = "SRA")
    [set pct-compliance pct-compliance * 1]                                                                        ; do nothing, making assumption that peer preasure has no effect when transposition already greater than or equal to the average or a strong NRA.
    [ifelse oecd-ceiling = 0
      [set pct-compliance (((100 - pct-compliance) * (1 + (reveiwPanelEffect? / 100))) - (100 - pct-compliance)) + pct-compliance] ; simulate 'peer' preasure to increase compliance of 'regulatory gap' by (default) 20%
      [set pct-compliance pct-compliance * 1
        if oecd-ceiling = ia-stage [
          set stand-off "yes"
        ]
      ]
    ]
  set avgCompliance mean [pct-compliance] of errNodes with [node-type = "NRA"]
  set medCompliance median [pct-compliance] of errNodes with [node-type = "NRA"]
  print (word "rp avg compliance = " avgCompliance)                                                                 ; debug code
  print (word "rp median compliance = " medCompliance)                                                              ; debug code
end

to errScoreCard
  set avgCompliance mean [pct-compliance] of errNodes with [node-type = "NRA"]                                      ; peer uplift a pct of 'un-transposed' i.e. the regulatory gap, another possibility is simple peer uplift of pct 'transposed', should be user selectable in new version
  set medCompliance median [pct-compliance] of errNodes with [node-type = "NRA"]
  ifelse (pct-compliance >= avgCompliance) or (node-type = "SRA")
    [set pct-compliance pct-compliance * 1]                                                                         ; do nothing, making assumption that peer preasure has no effect when transposition already greater than or equal to the average or a strong NRA.
    [ifelse oecd-ceiling = 0
      [set pct-compliance (((100 - pct-compliance) * (1 + (scoreCardEffect? / 100))) - (100 - pct-compliance)) + pct-compliance] ; simulate 'peer' preasure to increase conpliance of 'regulatory gap' by (default) 20%
      [set pct-compliance pct-compliance * 1
        if oecd-ceiling = ia-stage [
          set stand-off "yes"
        ]
      ]
    ]
  set avgCompliance mean [pct-compliance] of errNodes with [node-type = "NRA"]
  set medCompliance median [pct-compliance] of errNodes with [node-type = "NRA"]
  print (word "sc avg compliance = " avgCompliance)                              ; debug code
  print (word "sc median compliance = " medCompliance)                           ; debug code
end

to errECJRuling
  set avgCompliance mean [pct-compliance] of errNodes with [node-type = "NRA"]   ; this is a 'nuclear' rarely used option, modelled as user selectable probability of ECJ winning the case
  set medCompliance median [pct-compliance] of errNodes with [node-type = "NRA"]
  ifelse (pct-compliance >= (avgCompliance + complianceMargin?)) or (stand-off = "yes") or (node-type = "SRA")
    [set pct-compliance pct-compliance * 1                                       ; do nothing, making the assumption this is last resort and reserved for NRAs not reaching a threshold 'median' transposition
     set stand-off "no"                                                          ; the EC is not going after these
    ]
    [ifelse random 100  <= (ECJWinProbability?)                                  ; produces a pseudo-random number between 0 and 99 and if it is less than or equal to the probability of the ECJ winning then the ruling is enforced
       [set pct-compliance 100
        set stand-off "no"]                                                      ; EC wins
       [set stand-off "yes"]

    ]
  set avgCompliance mean [pct-compliance] of errNodes with [node-type = "NRA"]
  set medCompliance median [pct-compliance] of errNodes with [node-type = "NRA"]
  print (word "sc avg compliance = " avgCompliance)                              ; debug code
  print (word "sc median compliance = " medCompliance)                           ; debug code
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;; Visualisation Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to layout
  ;if not layout? [ stop ]
  ;; the number 10 here is arbitrary; more repetitions slows down the
  ;; model, but too few gives poor layouts
  repeat 10 [
    do-layout
    display  ;; so we get smooth animation
  ]
end

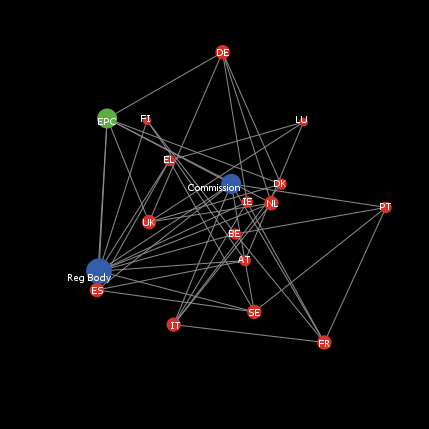

to do-layout
  ;layout-spring errNodes links 0.4 6 1                                           ; baseline for tests
  if regulatoryForm? = "orchestration (star)" [                                   ; create 'star' network from excel sheet (text file)
    layout-spring errNodes links 0.3 (world-width / (sqrt errNum)) 1]             ; a bit prettier
  if regulatoryForm? = "choreography (small-world)" [                             ; create 'small-world' network using the generator in netlogo nw exension
    layout-spring errNodes links 0.8 12 2]                                        ; a bit prettier
  if regulatoryForm? = "choreography (scale-free)" [                              ; create 'small-world' network using the generator in netlogo nw exension
    layout-spring errNodes links 0.8 12 2]                                        ; a bit prettier
end

to adjust-sizes
  ;; We want the size of the errNodes to reflect their centrality, but there are different centrality measures
  ;; giving different ranges of size, so we normalize the sizes according to the formula
  ;; below. We then use the normalized sizes to pick an appropriate color.
  if count errNodes > 0 [
    let results sort [ runresult measure ] of errNodes ;; results of the measure in increasing order
    let delta last results - first results ;; difference between biggest and smallest
    let base-size world-width / 50 ; set a base-size relative to the width of the world
    ifelse delta = 0 [ ;; if they all have the same value
      ask errNodes [ set size base-size ]
    ]
    [ ;; remap the size to a range of sizes from the base size to quadruple the base size
      let size-range base-size * 2
      ; note that we call runresult measure a second time, but since the centrality results
      ; are stored behind the scene by the nw extension, the cost of doing that is acceptable
      ask errNodes [ set size base-size + (((runresult measure - first results) / delta) * size-range) ]
    ]
  ]
end

to-report measure
  ; returns a different reporter task that can be run by the turtles (errNodes), depending on which
  ; preferential attachment mechanism is selected in the chooser (to be implimented).
  if preferential-attachment? = "1. degree centrality" [ report task [ count my-links ] ]
  if preferential-attachment? = "2. betweenness centrality" [ report task [ nw:betweenness-centrality ] ]
  if preferential-attachment? = "3. closeness centrality" [ report task [ nw:closeness-centrality ] ]
  if preferential-attachment? = "4. eigenvector centrality" [ report task [ nw:eigenvector-centrality ] ]
  report task [ 1 ] ; used for "none" - they all get equal values
end
