WHAT IS IT?

This is a model of a phase-space plot of the Lotka-Volterra equations. It is based on the Wolf Sheep Predation (System Dynamics) Model in NetLogo library.

The Lotka-Volterra equations are a pair of first order, non-linear, differential equations that describe the dynamics of biological systems in which two species interact.

HOW IT WORKS

The Lotka–Volterra equations, also known as the predator–prey equations represent a system of two dimensional, first-order, nonlinear, differential equations frequently used to describe the dynamics of biological systems in which two species interact, one as a predator and the other as prey. The populations change through time according to the pair of equations:

dX/dt = αX - βXY (1) dY/dt = δXY - γY (2)

where

  • X is the number of prey (in this model, sheep);

  • Y is the number of some predator (in this model, wolves);

  • dX/dt and dY/dt represent the growth rates of the two populations over time;

  • t represents time;

  • α, β, γ, δ are positive real parameters describing the interaction of the two species.

  • αX represents the exponential growth of the pray population (in this model as 'sheep-births' flow which is added to sheep stock) and the rate of predation upon the prey is assumed to be proportional to the rate at which the predators and the prey meet (in the actual model this is 'sheep-deaths' flow which is subtracted from the sheep stock): this is represented by βxy. If either x or y is zero then there can be no predation.

  • δXY represents the growth of the predator population and γY represents the loss rate of the predators due to either natural death or emigration; it leads to an exponential decay in the absence of prey.

Each flow is calculated in terms of the variables, and stocks that are linked to it.

Governed by these equations and calculations a phase-space plot is generated where X-axis represents the number of pray and Y-axis represents the number of predators. With each calculation a turtle is generated and plotted on the plane with respective coordinates.

After 300 ticks (i.e. time-steps) the model automatically stops.

HOW TO USE IT

Press the buttons (in respective numerical order):

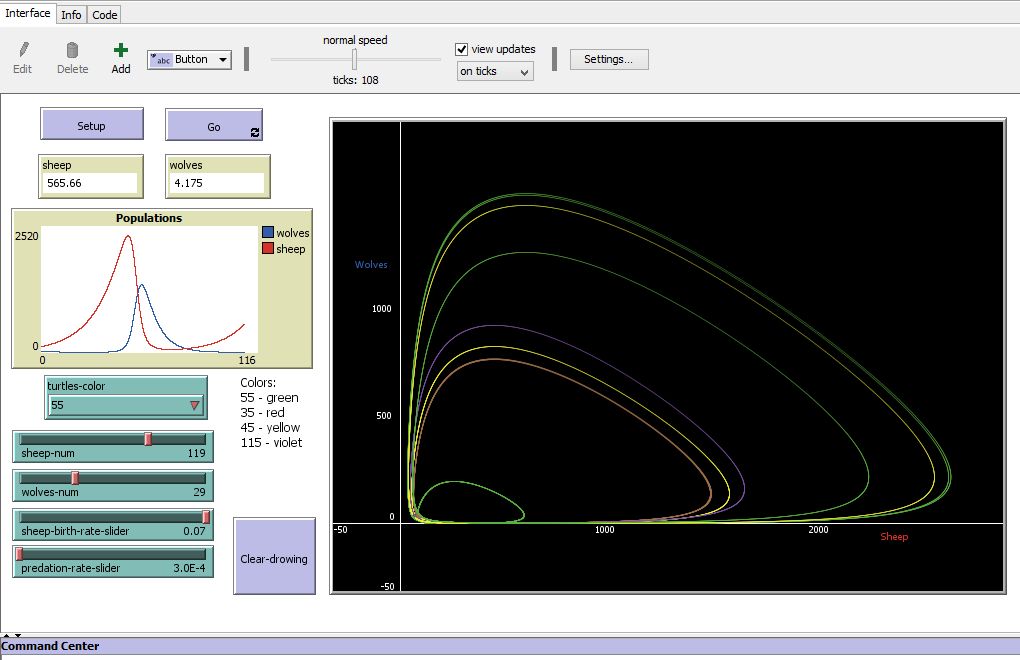

(1) Setup: creates basic conditions for the model to run (i.e. erases data from previous runs, generates X and Y axes, etc.). The plots from previous runs are preserved for further comparison.

(2) Go: starts running the model with generation of new points (turtles) in accordance with numeric values as a result of calculations, performed every time-step.

(3) and (4): These two monitors show the number of sheep and wolves at any particular time-step during the model run.

Activating/Pressing the above buttons will run the model with initial settings, which are close to the Wolf Sheep Predation (System Dynamics) Model in NetLogo library.

The sliders and chooser below allow to change some of the equations parameters and select the color of the plot to be generated during new runs of the model:

(5) This chooser is for selecting the color of the plot for the next model run. Colors are presented by their number on color swatches pallet. On the right there is a list of available colors and their numeric values.

(6), (7), (8) and (9) are sliders which allow to change some parameters of the equations (e.g. number of sheep and wolves, sheep-birth-rate, predation-rate). These values can be changed before a model run/before pressing 'Setup' and 'Go' buttons.

(10) 'Clear-drawing' button clear all the values: globals, ticks, turtles, patches, drawing, plots, and output.

THINGS TO NOTICE

Initially the model parameters are set close to the ones in the Sheep Predation (System Dynamics) Model in NetLogo library (i.e. number of sheep = 100, number of wolves = 30, sheep birth-rate (α) = 0.04, predation rate (β) = .0003, predator efficiency (δ) = 0.8 , wolf death-rate (γ) = 0.15)

Changing these parameters will lead to change in phase-plot shape. Running the model with different values of the parameters may help to clarify the impact of a certain parameter(s) on the phase-plot shape.

THINGS TO TRY

You can change model parameters one by one or combined and observe the impact of these changes on the phase-plot. Which combinations will provide the max number of sheep/wolves during the model run with the selected parameters? Try to find combinations that will lead to one of species extinction.

Before running the model with new settings you should first set the parameters using respective sliders, then select the color for the new plot and then press "Setup" and "Go".

EXTENDING THE MODEL

The number of parameters that can be varied by sliders in this model is limited. An extension of the model would be adding sliders for additional parameters (e.g. predation efficiency, wolf death-rate, etc.).

NETLOGO FEATURES

This model is based on Wolf Sheep Predation (System Dynamics) Model in NetLogo library. In some aspects it was converted from 'System Dynamics' version to a 'regular' one by recompiling the code and adding new pieces of the code with respective changes/additions in the model interface (buttons, sliders, etc.).

RELATED MODELS

  • Wolf Sheep Predation (System Dynamics) Model
  • Wolf Sheep Predation (Docked Hybrid) Model, both present in NetLogo model library
  • Van Der Pol Oscillator Model

CREDITS AND REFERENCES

This simple abstract model was developed by Victor Iapascurta, MD. At time of development he was in the Department of Anesthesia and Intensive Care at University of Medicine and Pharmacy in Chisinau, Moldova / ICU at City Emergency Hospital in Chisinau. Please email any questions or comments to viapascurta@yahoo.com

The model was created in NetLogo 6.0.1, Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

This model was inspired by Introduction to Dynamical Systems and Chaos (Fall, 2017) MOOC by David Feldman @ Complexity Explorer (https://www.complexityexplorer.org/courses).

Comments and Questions

Error opening the file

I have just downloaded the last version of NetLogo, and when I try to open the model it says: "Expected nlogo to have 12 sections, this had 10" What is going on? Thank you!

Posted over 7 years ago

The error while opening the model

Since the model was built in NetLogo 6.0.1 this might be the problem and solution. Although the two version 6.0.1 and 6.0.2 are 'compatible' the problem may be because of the model building 'procedure': part of the model was created in SDM than converted to 'regular' Netlogo. You can download the 6.0.1 version and try to open the model with it. Regards, The author

Posted over 7 years ago
Click to Run Model

globals [
mylist-x
mylist-y
  sheep-birth-rate
  predation-rate
  predator-efficiency
  wolf-death-rate
  sheep
  wolves
  dt
]

to setup
  ;clear-all
  clear-globals
  clear-ticks
  clear-patches
  clear-all-plots
  ask patches with [ pxcor = 0 ] [  set pcolor white ]
  ask patches with [ pycor = 0 ] [  set pcolor white ]
  setup-coordinates
  set mylist-x list 0 (sheep)
  set mylist-y list 0 (wolves)
  system-dynamics-setup
  system-dynamics-do-plot
end

to system-dynamics-setup
  reset-ticks
  set dt 0.009
  set sheep-birth-rate sheep-birth-rate-slider
  set predation-rate predation-rate-slider
  set predator-efficiency .8
  set wolf-death-rate 0.15
  set sheep sheep-num
  set wolves wolves-num
end

to clear-picture
  ca
end

to go
  system-dynamics-go
  system-dynamics-do-plot
  set mylist-x lput result-x mylist-x
  set mylist-y lput result-y mylist-y
  crt 1 [
    set color select-phase-plot-color
    set xcor (last mylist-x * 0.15)
    set ycor (last mylist-y * 0.15)
    set size 0.5
    set shape "circle"
  ]

  if ticks >= 300 [ stop ]
end

to system-dynamics-go

  let local-sheep-births sheep-births
  let local-sheep-deaths sheep-deaths
  let local-wolf-births wolf-births
  let local-wolf-deaths wolf-deaths

  let new-sheep max( list 0 ( sheep + local-sheep-births - local-sheep-deaths ) )
  let new-wolves max( list 0 ( wolves + local-wolf-births - local-wolf-deaths ) )
  set sheep new-sheep
  set wolves new-wolves

  tick-advance dt
end

to-report sheep-births
  report ( sheep-birth-rate * sheep
  ) * dt
end

to-report sheep-deaths
  report ( sheep * predation-rate * wolves
  ) * dt
end

to-report wolf-births
  report ( wolves * predator-efficiency * predation-rate * sheep
  ) * dt
end

to-report wolf-deaths
  report ( wolves * wolf-death-rate
  ) * dt
end

to-report result-x
  report sheep
end

to-report result-y
    report  wolves
end

to setup-coordinates
  ask patch -5 5
  [ set plabel "0"
    set plabel-color white ]

  ask patch -7 160
  [ set plabel "1000"
    set plabel-color white ]

  ask patch -7 80
  [ set plabel "500"
    set plabel-color white ]

  ask patch 160 -5
  [ set plabel "1000"
    set plabel-color white ]

  ask patch 320 -5
  [ set plabel "2000"
    set plabel-color white ]

  ask patch -5 -48
  [ set plabel "-50"
    set plabel-color white ]

  ask patch -40 -5
  [ set plabel "-50"
    set plabel-color white ]

  ask patch -10 193
  [ set plabel "Wolves"
    set plabel-color blue ]

  ask patch 380 -10
  [ set plabel "Sheep"
    set plabel-color red ]
end

to system-dynamics-do-plot
  if plot-pen-exists? "sheep" [
    set-current-plot-pen "sheep"
    plotxy ticks sheep
  ]
  if plot-pen-exists? "wolves" [
    set-current-plot-pen "wolves"
    plotxy ticks wolves
  ]
end
