Flibs'NFarol

Flibs'NFarol preview image

1 collaborator

Cosimo.leuci Cosimo Leuci (Author)

Tags

adaptive cognition

Tagged by Cosimo Leuci almost 4 years ago

artificial life

Tagged by Cosimo Leuci almost 4 years ago

el farol

Tagged by Cosimo Leuci about 3 years ago

finite automata

Tagged by Cosimo Leuci almost 4 years ago

genetic algorithms

Tagged by Cosimo Leuci almost 4 years ago

self-organisation

Tagged by Cosimo Leuci almost 4 years ago

social science

Tagged by Cosimo Leuci almost 4 years ago

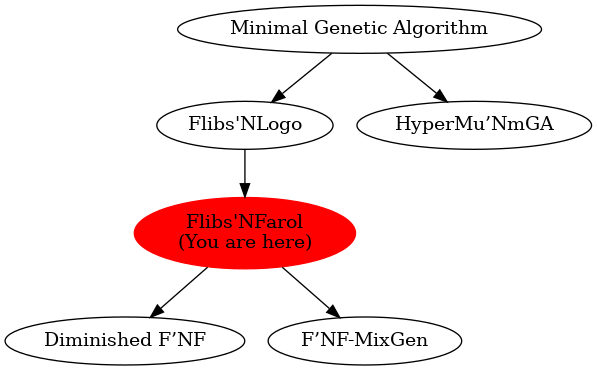

Part of project 'Starfish_Planet' Child of model Flibs'NLogo preview imageFlibs'NLogo
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.3.0 • Viewed 472 times • Downloaded 34 times • Run 0 times
Download the 'Flibs'NFarol' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;  _________________________________________________________________________________________________________________
;;
;;  --------------------   FlibsN'Farol   ---------------------------------------------------------   FlibsN'Farol
;;  FlibsN'Farol   ---------------------------------------------------------   FlibsN'Farol   -----------------------
;;  _________________________________________________________________________________________________________________



breed     [flibs flib]     ;; FLiBs (finite livig blobs) are the agents of the model: they are structured as
                           ;; finite automata. They have "a finite number of states; an input signal
                           ;; causes it to change automatically from one state to another. The kind of automaton
                           ;; used in a flib also generates signals. Incoming and outgoing signals are represented
                           ;; within the automaton by symbols. When a signal is reiceved, the automaton changes
                           ;; state and emits a second signal" (A. K. Dewdney) A flib is considered perfect
                           ;; predictor i.e. very well adapted, when its outgoing signals (prevision/choice)
                           ;; is equal to the next incoming environmental signal. Environmental signals are one binary
                           ;; digits indicating or not the crowded state of the bar and resulting from the predominant
                           ;; behaviour of the flibs population.


flibs-own [chromosome      ;; Every flib owns a chromosome that is a string coding its state transition table;
           chrom-10        ;; transposition of the chromosome string into a decimal number when it is a binary string
                           ;; (i.e. flibs states are less than three)
           state           ;; the current inner state of the flib
           choice          ;; the binary choice/prevision expressed by the flib regarding to go or not to go to the bar
           fitness         ;; a measure of flibs prevision ability to forestall if the bar will be crowded or not
           ]


globals  [id                ;; a counter to recall flibs one by one
          attendance        ;; counts the number of agents attending the bar during one evening
          crowded           ;; a switch recording the state of the bar: 1 if overcrowded, 0 if not
          tot_attend        ;; total of attendances during one season to "El Farol" bar (i.e. 100 cycles)
          sigma_attend      ;; accumulator of the previous variable
          lorenz-points     ;; list of the Lorenz curve ordinates
          gini-index-reserve;;
          sigma-gini        ;; accumulator of the previous variable
          diversity         ;; the different chromosomes number in the flibs population
          best              ;; the best flibs fitness value
          worst             ;; the worst flibs fitness value
          donor             ;; one of best performing flibs sharing part of its genes
          recipient         ;; one flib acquiring genes from the donor flib
          a-split           ;; the first cut in the recipient's chromosome
          b-split           ;; the second cut in the recipient's chromosome
          loci-process      ;; pointer/counter of chromosome loci
          ]



;;  ----------   SETUP PROCEDURES   ----------------------------------------------------------------------------------
;;  ------------------------------------------------------------------------------------------------------------------

to setup                       ;; initializing the model
  clear-all
  ;; create the bar area (green) and an elsewhere (blue)
  ask patches  [set pcolor blue]
  ask patches with [abs pxcor < 10 and abs pycor < 7] [set pcolor green]
  ask patches with [pxcor = 9 and pycor = 7] [set plabel ["El Farol Bar"]]
  ask patches with [pxcor = 21 and pycor = -21] [set plabel ["Somewhere else"]]

 ;; fifty flibs and their chromosomes are generated
  ask n-of num-flibs patches [sprout-flibs 1 [
    set shape "flib"
    set color white
    set size 2
    set chromosome ""
    set state random num-states]
  ]
  ask flibs [chromosome-genesis]
  if num-states > 2 [notice]
  reset-ticks
end

to chromosome-genesis   ;; chromosomes are strings randomly built through an iterative procedure: even string's
                        ;; positions are 0 or 1: they represent a possible outgoing signal; odd string's
                        ;; positions represent possible flib's states determined by NUM-STATES slider
  set chromosome word chromosome (word (random 2) (random num-states))
  set loci-process loci-process + 1
  if loci-process < num-states * 2 [chromosome-genesis]
  set loci-process 0
end

to notice
  output-print "Sequences separation takes"
  output-print "place for binary chromosomes"
  output-print "only. The analysis is"
  output-print "unavailable when the number"
  output-print "of flibs' states are higher"
  output-print "than two."
end



;;  ----------   RUNTIME PROCEDURES   --------------------------------------------------------------------------------
;;  ------------------------------------------------------------------------------------------------------------------

to go
  ;; variables are resetted before a new season to "El Farol" Bar
  ask flibs [set fitness 0 set state 0]
  set crowded 0
  set attendance 0
  set tot_attend 0
  repeat 100 [el-farol]
  if sum [fitness] of flibs = 0 [
    show "fitness null for every flibs"
    stop
  ]
  analyse
  ;; every season one genetic shuffling occurs according a frequency set by slider conjugation-RATE
  if random-float 1 < mate-rate [conjugation]
  ;; every season, a mutagenesis process can occur, this frequency can be adjusted by slider MUTATION-RATE
  ;; the mutational event is preceded by the random choice of a wild-type candidate
  if random-float 1 < mutation-rate
    [ask one-of flibs [mutate]
  ]
  tick
end


;; Operator 1: A SEASON TO EL FAROL BAR
;; -------------------------------------------------------------------------------------------------------------------

to el-farol
  set id 0
  flibs-behaviour
  ;; the attendance is the result of the flibs choices
  set attendance sum [choice] of flibs / num-flibs
  set tot_attend tot_attend + attendance
  ;; comparing the attendance and the threshold value, the (over)crowded state of the bar is determined
  if attendance >= threshold [set crowded 1
    ;; if the bar is crowded, the flibs that have choiced to stay elsewhere are rewarded
    ask flibs with [choice = 0] [set fitness fitness + 1] ]
  if attendance < threshold [set crowded 0
    ;; if the bar is not crowded, the flibs that have choiced to go there are rewarded
    ask flibs with [choice = 1] [set fitness fitness + 1] ]
end

to flibs-behaviour
  ask flib id [
    ;; new flibs state is computed
    set state read-from-string item (4 * state + 2 * crowded + 1) chromosome
    ;; each flibs prevision is tested and fitness updated
    set choice read-from-string item (4 * state + 2 * crowded) chromosome
    ;; flib choice is displayed
    ifelse choice = 0 [move-to one-of patches with [pcolor = blue]]
      [move-to one-of patches with [pcolor = green]]
  ]
  set id id + 1
  if id < num-flibs [flibs-behaviour]
end

to analyse
  ;; the "El Farol" seasonal results are summarized and displayed
  set best max [fitness] of flibs
  set worst min [fitness] of flibs
  ask flibs [set color scale-color red fitness 101 0 set label fitness]
  set sigma_attend sigma_attend + tot_attend / 100
  update-lorenz-and-gini
  diversity-assesment
  if num-states < 3 [chrom-analysis]
end

to update-lorenz-and-gini
  let sorted-comfort sort [fitness] of flibs
  let total-comfort sum sorted-comfort
  let comfort-sum-so-far 0
  let index 0
  set gini-index-reserve 0
  set lorenz-points []
  repeat num-flibs [
    set comfort-sum-so-far (comfort-sum-so-far + item index sorted-comfort)
    set lorenz-points lput ((comfort-sum-so-far / total-comfort) * 100) lorenz-points
    set index (index + 1)
    set gini-index-reserve
      gini-index-reserve +
      (index / num-flibs) -
      (comfort-sum-so-far / total-comfort)
  ]
    set sigma-gini sigma-gini + ((gini-index-reserve / num-flibs) * 2)
end

to diversity-assesment
  let sort-chrom sort [chromosome] of flibs
  let index 1
  set diversity 1
  repeat num-flibs - 1 [
    if item index sort-chrom != item (index - 1) sort-chrom [set diversity diversity + 1]
    set index (index + 1)
  ]
end

to chrom-analysis
  output-print ""
  output-print ""
  output-type word "------ season " ticks
  output-print " ------------"
  output-print ""
  ask flibs [set chrom-10 0]
  binary2decimal
  if num-states = 1 [output-print " id.  bindec   fitness"]
  if num-states = 2 [output-print " id.  bin  dec  fitness"]
end

to binary2decimal
  ask flibs
    [set chrom-10 chrom-10 + (read-from-string item loci-process reverse chromosome) * 2 ^ loci-process]
  set loci-process loci-process + 1
  ifelse loci-process < num-states * 4 [binary2decimal]
    [set loci-process 0
     ask flibs [ifelse who <= 9 [output-type word "00" who]
        [ifelse who <= 99 [output-type word "0" who]
          [output-type who]
        ]
      output-type word "   " chromosome
      ifelse chrom-10 < 10 [output-type word "       " chrom-10]
        [ifelse chrom-10 < 100 [output-type word "      " chrom-10]
          [output-type word "     " chrom-10]
      ]
    output-print word "   " fitness]
  ]
  set loci-process 0
end



;; Operator 2: GENETIC SHUFFLING
;; -------------------------------------------------------------------------------------------------------------------

to conjugation
  ;; the conjugation process requires two flibs' chromosomes: the donor and the recipient:
  ;; just the second one undergoes to hybridization
  select-flibs
  ask flib recipient [genetic-shuffling]
end

to select-flibs
  ;; there are three selection methods to select the "donor" and "recipient" chromosomes: it can be the fittest,
  ;; the misfittest, or they can be randomly chosen
  if donor-selection = "random"     [set donor [who] of one-of flibs]
  if donor-selection = "fittest"    [set donor [who] of one-of flibs with [fitness = best]]
  if donor-selection = "misfittest" [set donor [who] of one-of flibs with [fitness = worst]]
  if recipient-selection = "random"     [set recipient [who] of one-of flibs]
  if recipient-selection = "fittest"    [set recipient [who] of one-of flibs with [fitness = best]]
  if recipient-selection = "misfittest" [set recipient [who] of one-of flibs with [fitness = worst]]
  ;; self conjugation is forbidden
  if donor = recipient [select-flibs]
end

to genetic-shuffling
  ;; a genes sequence included between a-split and b-split restriction sites is randomly choosen
  set a-split random (num-states * 4)
  set b-split random (num-states * 4)
  set loci-process 0
  hybridization
  set fitness 0
end

to hybridization
 ;; the genes' sequence included between a-split and b-split restriction sites on a random
 ;; flib is replaced by the corresponding sequence on one of the most performing flibs;
 ;; chromosomes are treated as circular
 if a-split < b-split [
    set chromosome replace-item (a-split + loci-process)
      chromosome (item (a-split + loci-process) [chromosome] of flib donor)
    set loci-process (loci-process + 1) if loci-process < b-split - a-split
      [hybridization]
  ]
 if a-split > b-split [
    set chromosome replace-item ((a-split + loci-process) mod (num-states * 4))
      chromosome (item ((a-split + loci-process) mod (num-states * 4)) [chromosome] of flib donor)
    set loci-process (loci-process + 1) if loci-process < (num-states * 4) - (a-split - b-split)
      [hybridization]
  ]
  set loci-process 0
end


;; Operator 3: MUTAGENESIS
;; -------------------------------------------------------------------------------------------------------------------

to mutate
  ;; mutations occur randomly at a given frequency on one locus only
  let dice random length chromosome
  let muton read-from-string item dice chromosome
  ifelse dice mod 2 = 0
    [set chromosome replace-item dice chromosome word ((muton + 1) mod 2) ""]
  [set chromosome replace-item dice chromosome word ((muton + 1) mod num-states) ""]
  set fitness 0
end




; Copyright 2022 Cosimo Leuci.
; See Info tab for full copyright and license.

There are 13 versions of this model.

Uploaded by When Description Download
Cosimo Leuci 2 months ago Rev. 0.5.3 Download this version
Cosimo Leuci 2 months ago Rev. 0.5.2 Download this version
Cosimo Leuci 3 months ago Rev. 0.5.1 Download this version
Cosimo Leuci 3 months ago Rev. 0.5 Download this version
Cosimo Leuci about 3 years ago Rev. 0.3.5.1 Download this version
Cosimo Leuci about 3 years ago Rev. 0.3.5 Download this version
Cosimo Leuci about 3 years ago Rev. 0.3.5 Download this version
Cosimo Leuci almost 4 years ago Rev. 0.3.4.7 Download this version
Cosimo Leuci almost 4 years ago Rev. 0.3.4.1 Download this version
Cosimo Leuci almost 4 years ago Rev. 0.3.4.1 Download this version
Cosimo Leuci almost 4 years ago Rev. 0.3.4 Download this version
Cosimo Leuci almost 4 years ago Rev. 0..3.3 Download this version
Cosimo Leuci almost 4 years ago Initial upload Download this version

Attached files

File Type Description Last updated
Flibs'NFarol.png preview Preview for "Flibs'NFarol" almost 4 years ago, by Cosimo Leuci Download

Parent: Flibs'NLogo

This model does not have any descendants.

Graph of models related to 'Flibs'NFarol'
