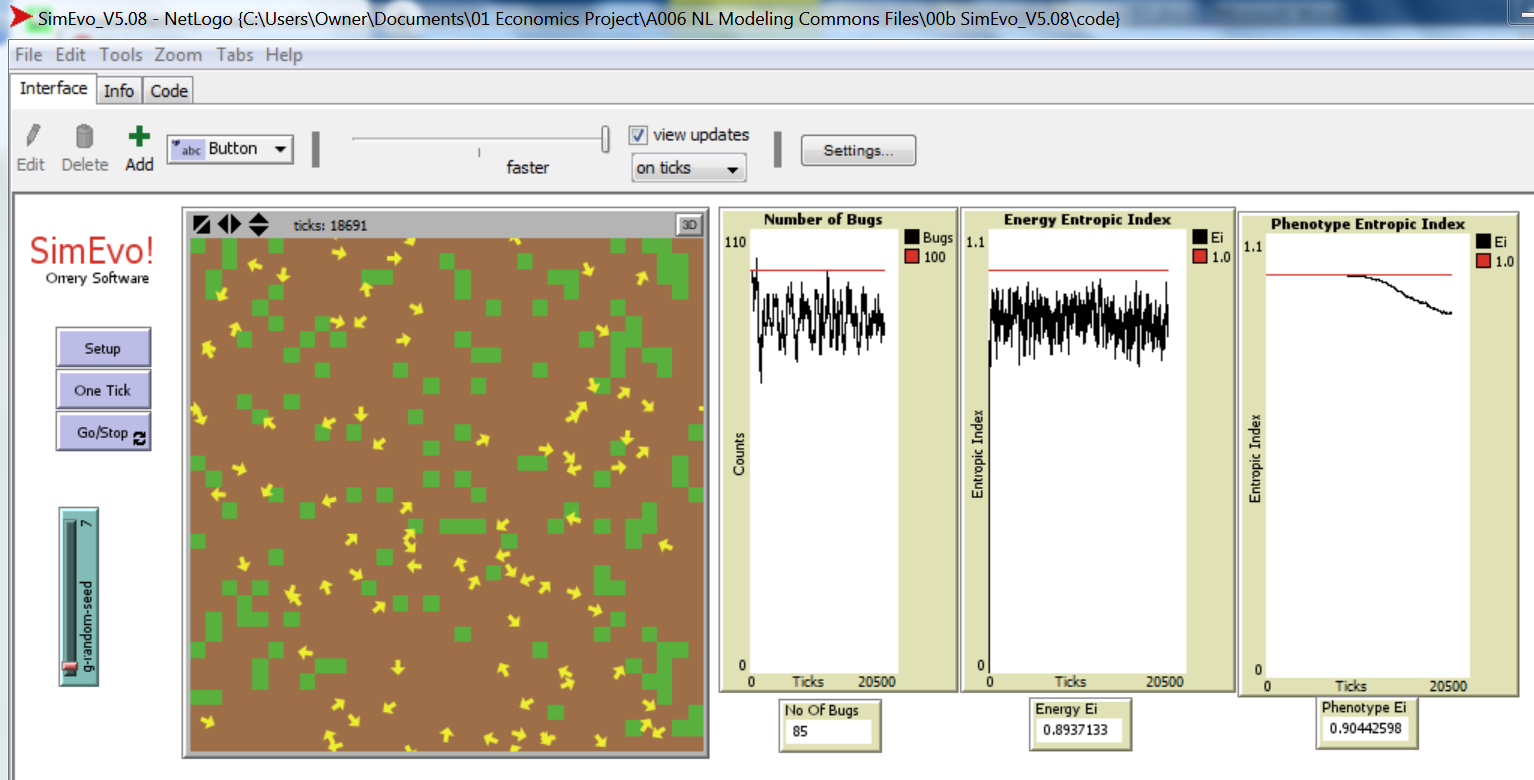

00b SimEvo V5.08 preview image

1 collaborator

121210_portrait_of_garvin Garvin Boyle (Author)

Tags

biophysical economics

"Sustainability"

Tagged by Garvin Boyle about 5 years ago

evolution and entropyU

Tagged by Garvin Boyle about 5 years ago

evolution and entropy

Tagged by Garvin Boyle about 5 years ago

sustainability

Tagged by Garvin Boyle about 5 years ago

Model group Sustainability | Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.5 • Viewed 713 times • Downloaded 25 times • Run 0 times
Download the '00b SimEvo V5.08' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;=====================================================================|=======|
;; SECTION A – AUTHOR IDENTIFICATION AND CODE ABSTRACT
;;=====================================================================|=======|
;;
;; File Name: SimEvo_V5.08.nlogo
;; By Orrery Software
;; Dated: 2018-11-21
;; Author contact:
;;   Garvin H Boyle
;;   orrery@rogers.com
;;   http://orrery-software.webs.com

;;---------------------------------------------------------------------|-------|
;; This simEvo ABM is based on "Simulated Evolution" by Dr Michael Palmiter
;;   as described in the Scientific American article by A.K.Dewdney of 1989.

;; In this model, energy arrives in a steady stream from the Sun and is
;;   captured in algae, which appears randomly in patches in the pond.
;;   Blind seekers roam the pond searching for food, but they cannot sense
;;   it.  Each must develop a heuristic strategy, an informed pattern of
;;   behaviour, to seek the algae mats currently having food, and harvest it.
;;   The strategies start as ineffective bland heuristics, and evolve to be
;;   much more sophisticated.  Only those with the best search pattern
;;   survive to reproduce.
;;---------------------------------------------------------------------|-------|
;; This program was developed on NetLogo Version 5.0.5
;;

;;=====================================================================|=======|
;; SECTION B – INITIAL DECLARATIONS OF GLOBAL VARIABLES AND BREEDS
;;=====================================================================|=======|
;;

;;---------------------------------------------------------------------|-------|
;; Code-determined global variables
globals
[
;;---------------------------------------------------------------------|-------|
;; MODELING ENGINE
;;---------------------------------------------------------------------|-------|
;; BIOPHYSICAL SUB-SYSTEM PARAMETERS
;;---------------------------------------------------------------------|-------|

  ;; Biophyscial life function parameters, seekers,
  ;;   derived from Dr. Michael Palmiter's model.
  g-c2-dat-parm  ;; The death age threshold
  g-c2-det-parm  ;; The death energy threshold
  g-c2-rat-parm  ;; The reproductive age threshold
  g-c2-ret-parm  ;; The reproductive energy threshold
  g-c2-epm-parm  ;; The energy per move
  g-c2-epa-parm  ;; The maximum energy an agent may hold

  ;; Various parameters - soft coded
  g-energy-per-deposit ;; Energy placed in a patch
  g-prob-of-mutation   ;; Probability that a seeker mutates at birth.

  ;; The global list of possible heading deltas for moves.
  gl-heading-list  ;; List of heading deltas.
  gl-base-factors  ;; List of factors, used to mutate bases

  ;; Energy control variables
  g-prob-of-deposit        ;; Probability that energy will be deposited.
  g-energy-in-sunshine     ;; Daily influx of energy held in the sunshine.

  ;; List of counts of deaths, by cause.
  gl-cod                   ;; Counts of deaths, by cause.

  ;; Global enumeration (ge-) codes for cause of death.
  ge-cod-none
  ge-cod-fission
  ge-cod-hunger
  ge-cod-oldage

  ;; For display.
  g-energy-entropic-index  ;; For [energy] of seekers.
  gl-ave-phenotype         ;; Average values of c1-pheno
  g-pheno-entropic-index   ;; For average phenotypes
]

;;---------------------------------------------------------------------|-------|
;; DEFINING PATCHES AND BREEDS
;;---------------------------------------------------------------------|-------|

;;---------------------------------------------------------------------|-------|
;; Attributes of patches
patches-own
[
  algae  ;; The amount of energy in algae in this patch.
]

;;---------------------------------------------------------------------|-------|
;; Turtles and breeds
breed [ seekers seeker ]

;;---------------------------------------------------------------------|-------|
;; Attributes of seekers
seekers-own
[
  ;; Chromosome 1 (C1) genes are used to distinguish behaviours.
  c1-bases ;; list of 8 [B]ases for genes.
  c1-expos ;; list of 8 [E]xponents for the genes.
  c1-stren ;; list of 8 [S]trengths             [ Si=Bi^Ei ]
  c1-pheno ;; list of 8 [P]henotypic characteristics [Pi=(Si/Sum(Si))]

  ;; Chromosome 2 (C2) genes are static in this model.
  c2-DAT   ;; Death Age Threshold.
  c2-DET   ;; Death Energy Threshold.
  c2-RAT   ;; Reproductive Age Threshold.
  c2-RET   ;; Reproductive Energy Threshold.
  c2-EPM   ;; Energy Per Move.
  c2-EPA   ;; Maximum Energy Per Agent.

  ;; Chromosome 3 (C3) genes are not present in this model.

  ;; Other variable characteritics.
  mas-who                  ;; Serial number of mother agent.
  age                      ;; Age of the seeker in ticks
  energy                   ;; Energy in this seeker
  cause-of-death           ;; A switch
  b-is-ready-to-move?      ;; 0 = no; 1 = ready to move
  b-is-ready-to-reproduce? ;; Mature (in age) and healthy (in energy)
  b-is-ready-to-die?       ;; Old (in age) or starved (in energy)
]

;;=====================================================================|=======|
;; SECTION C – INITIALIZATION OR SETUP PROCEDURE(S)
;;=====================================================================|=======|

;;---------------------------------------------------------------------|-------|
;; The 'autostart' startup routine

to startup
  ;; This routine is to be executed by the observer.
  ;; It is automatically run when the model is first loaded.
  ;; This ensures that key startup variables stored in persistent controls
  ;;   such as sliders are returned to their default values after a save.

  ;; Any globals not initialized in setup should be initialized here.
  set g-random-seed 7

  ;; Run the setup routine to initialize (other) globals.
  setup
end

;;---------------------------------------------------------------------|-------|
;; The setup button(s)

to setup
  ;; This routine is to be executed by the observer.

  ;; NOTE: The contents of switches, sliders, and choosers seem to be
  ;;   immune to these 'clear' commands.
  clear-ticks       ;; Clears the tick counter, must be followed by reset-ticks.
  clear-turtles     ;; Kills all turtles and resets the who counter to zero.
  clear-links       ;; Kills all links.
  clear-patches     ;; Sets all attributes of patches to default values.
  clear-drawing     ;; Clears all lines and stamps drawn by turtles.
  clear-all-plots   ;; Clears all plots and sets attributes to default values.
  clear-output      ;; Clears the output area, if there is one.

  random-seed ( g-random-seed )

  ;; Set the energy (encoded in the variable algae) in all of the patches to zero.
  ask patches
  [
    set algae 0
    set pcolor brown  ;; Empty patches (no algae) are brown.
  ]

  random-seed 7      ;; Tells the PRNG (a Mersene Twister) to use this seed.

  ;; Various global parameters - soft-coded
  set g-energy-per-deposit 40   ;; Energy placed in a patch
  set g-prob-of-deposit 0.2
  set g-prob-of-mutation 0.2 ;; Probability that a seeker mutates at birth.
  ;; Chromosome 2 (C2) biophysical controls - borrowed from Palmiter's model.
  ;; In this model these values are static.  C2 does not mutate.
  set g-c2-dat-parm        1600  ;; Death Age Threshold
  set g-c2-det-parm           4  ;; Death Energy Threshold
  set g-c2-rat-parm         800  ;; Reproductive Age Threshold
  set g-c2-ret-parm        1000  ;; Reproductive Energy Threshold
  set g-c2-epm-parm           4  ;; Energy Per Move (Metabolic cost)
  set g-c2-epa-parm        1600  ;; Maximum Energy Per Agent

  ;; Establish the list of allowed headings, each 45 degrees from the last.
  ;;   These are the possible deltas that will be added to the current heading
  ;;   based on which of the 8 genes is expressed during a move.
  set gl-heading-list [ 0 45 90 135 180 225 270 315 ]

  ;; The factors used to mutate the base values of the genes need to be
  ;;   calculated.
  let prime-list [ 7 11 13 17 ]
  let factor-list ( map [ 1 + ( 1 / ? ) ] prime-list )
  let inverse-list ( map [ 1 - ( 1 / ? ) ] prime-list )
  set gl-base-factors ( sentence factor-list inverse-list )

  ;; Suppressed debug code
  ;; show ( word "     prime-list: " prime-list )
  ;; show ( word "    factor-list: " factor-list )
  ;; show ( word "   inverse-list: " inverse-list )
  ;; show ( word "gl-base-factors: " gl-base-factors )

  set gl-cod [ 0 0 0 0 ]        ;; Counts of deaths, by cause.

  ;; Global enumeration (ge-) codes for cause of death.
  set ge-cod-none     0
  set ge-cod-fission  1
  set ge-cod-hunger   2
  set ge-cod-oldage   3

  set-default-shape seekers "arrow" ;; pulled from shapes library

  set g-energy-entropic-index 0 ;; For [energy] of seekers.
  set gl-ave-phenotype ( n-values 8 [0] ) ;; Average values of c1-pheno
  set g-pheno-entropic-index  0 ;; For average phenotypes

  ;; Initialize the seekers.
  f-initialize-seekers

  ;; Update the statistics used in the plots.
  ;; show [energy] of seekers
  f-update-aggregates

  reset-ticks ;; restarts tick counter, runs setup commands within plots

  ;; end of setup
end

;;---------------------------------------------------------------------|-------|
;; Initialize a population of seekers.

to f-initialize-seekers
  ;; This routine is to be executed by the observer.

  ;; Initialize the seekers.
  create-seekers 100 [ f-initialize-new-seeker ]

  ;; Place more energy into patches.
  ask patches
  [
    set algae 0
    set pcolor brown
  ]

  ;; End of f-initialize-seekers
end

;;---------------------------------------------------------------------|-------|
;; Calculate the strengths and phenotypic values.

to f-find-strens-n-phenos
  ;; This routine is to be executed by a seeker.

  ;; It uses the second example of the map feature.
  ;; Examples of the map feature.
  ;; show (map + [1 2 3] [2 4 6])
  ;; => [3 6 9]
  ;; show (map [?1 + ?2 = ?3]
  ;;           [1 2 3]
  ;;           [2 4 6]
  ;;           [3 5 9])
  ;; => [true false true]

  ;; Compute the strength as Si=Bi^Ei.
  set c1-stren ( map [?1 ^ ?2]
                     c1-bases
                     c1-expos )
  ;; Compute the phenotypic character as Pi=(Si/sum(Si)).
  set c1-pheno
    ( map [?1 / ?2]
          c1-stren
          ( n-values 8 [sum c1-stren] ) )

  ;; End of f-find-strens-n-phenos
end

;;---------------------------------------------------------------------|-------|
;; Initialize a single seeker.

to f-initialize-new-seeker
  ;; This routine is to be executed by a seeker.

  set color yellow

  ;; Load chromosome 1 with Palmiter genes.
  set c1-bases [ 2 2 2 2 2 2 2 2 ]  ;; 8 unbiased genes
  set c1-expos [ 0 0 0 0 0 0 0 0 ]  ;; 8 unbiased genes
  ;; Calculate the strengths and phenotypic characters.
  f-find-strens-n-phenos

  ;; The biophysical body function genes are static in this model.
  ;; I.e. this chromosome does not suffer mutations.
  ;; Load chromosome 2 with the parameters from sliders.
  set c2-DAT g-c2-dat-parm
  set c2-DET g-c2-det-parm
  set c2-RAT g-c2-rat-parm
  set c2-RET g-c2-ret-parm
  set c2-EPM g-c2-epm-parm
  set c2-EPA g-c2-epa-parm

  ;; Associated with seeker dynamics.
  set energy ( g-c2-rat-parm )
  set age ( random ( g-c2-ret-parm / 2 ) )
  set mas-who -1                 ;; serial number of parent seeker.

  ;; Set the logic trigger flags.
  set b-is-ready-to-move?      true
  set b-is-ready-to-reproduce? false
  set b-is-ready-to-die?       false

  ;; end f-initialize-new-seeker
end

;;=====================================================================|=======|
;; SECTION D – GO OR MAIN-LOOP PROCEDURE(S)
;;=====================================================================|=======|

;;---------------------------------------------------------------------|-------|
;; The go button

to go
  ;; This routine is to be executed by the observer.

  let b-should-stop-now false
  if( count turtles <= 0 ) [ set b-should-stop-now true ]
  if( b-should-stop-now = true )
  [
    stop
  ]
  ;; stop commands should only be seen in the go routine.

  ;; Major steps or functions, done once per tick, in order of execution.
  do-pre-tick   ;; Maintenance activities.
  do-energize   ;; Sun deposits energy into patches of algae.
  do-move       ;; Seekers move according to their unique stochastic pattern.
  do-feed       ;; Seekers eat any algae in the patch they occupy, if hungry.
  do-reproduce  ;; Seekers fission, if old enough and healthy enough.
  do-die        ;; Seekers die, if too old, or too sickly.
  do-post-tick  ;; Maintenance activities.

  ;; End of go.
end

;;---------------------------------------------------------------------|-------|
;; D1 - do-pre-tick procedure( s )
;;---------------------------------------------------------------------|-------|

to do-pre-tick
  ;; This routine is to be executed by the observer.

  ;; Advance the ticks by one and update the plots.
  tick
  ask seekers [ set age ( age + 1 ) ]

  ;; End of do-pre-tick.
end

;;---------------------------------------------------------------------|-------|
;; D2 – do-energize procedure(s)
;;---------------------------------------------------------------------|-------|

to do-energize
  ;; This routine is to be executed by the observer.

  ;; The Sun radiates a fixed amount of energy per tick into the system.
  set g-energy-in-sunshine 400

  ;; Make a list of the patches that are without algae (without energy)
  let empty-patch-list ( patches with [algae = 0] )

  ;; Use the probability of deposit to determine if algae is added.
  ask empty-patch-list
  [
    let random-number ( random 100000 )
    let threshold ( 100000 * g-prob-of-deposit )
    if ( ( random-number <= threshold ) and
         ( g-energy-in-sunshine > g-energy-per-deposit ) )
    [
      set algae ( algae + g-energy-per-deposit )
      set pcolor green
      ;; Record in system energy accounts
      set g-energy-in-sunshine ( g-energy-in-sunshine - g-energy-per-deposit )
    ] ;; End if(() and ())
  ] ;; End ask

  ;; End of do-energize.
end

;;---------------------------------------------------------------------|-------|
;; D3 – do-move procedure(s)
;;---------------------------------------------------------------------|-------|

to do-move
  ;; This routine is to be executed by the observer.

  ;; The seekers move.
  ask seekers
  [
    if( b-is-ready-to-move? = true )
    [
      f-seeker-moves
    ]  ;; End if( b-is-ready-to-move? = true )
  ]  ;; End ask seekers

  ;; End of do-move.
end

;;---------------------------------------------------------------------|-------|
;; A seeker moves according to genes and heuristics.

to f-seeker-moves
  ;; This routine is to be executed by a seeker.

  ;; When a seeker moves it expends energy out of its pool of energy.
  ;; Determine if this seeker has sufficient energy to move.
  ifelse ( energy >= c2-EPM )
  [
    ;; Establish a heading.
    f-seeker-sets-heading

    ;; Step forward
    forward 1

    set energy ( energy - c2-EPM )

    set b-is-ready-to-move? true
  ]
  ;; Else
  [
    ;; The seeker is marked for death, and energy is removed.
    ;; It will die and be removed when do-die is executed.
    set energy 0
    set cause-of-death ge-cod-hunger
    set b-is-ready-to-move? false
    set b-is-ready-to-die?  true
  ]
  ;; End else

  ;; End of f-seeker-moves
end

;;---------------------------------------------------------------------|-------|
;; A seeker sets a heading using c1-pheno.

to f-seeker-sets-heading
  ;; This routine is to be executed by a seeker.

  let old-heading heading
  let sum-of-phenos ( sum c1-pheno ) ;; Should be 1.0.
  let random-number ( random-float sum-of-phenos )

  let counter 0
  let good-index -1
  let this-pheno 0
  let this-sum 0
  let next-sum 0

  while [ counter < 8 ]  ;; Do not overshoot
  [
    set this-pheno ( item counter c1-pheno )
    set next-sum ( this-pheno + this-sum )
    if ( ( random-number >= this-sum ) and ( random-number < next-sum  ) )
    [
      set good-index counter
    ]
    set this-sum next-sum
    set counter ( counter + 1 )
  ]

  let heading-delta ( item good-index gl-heading-list )
  set heading ( heading + heading-delta )

  ;; End of f-seeker-sets-heading
end

;;---------------------------------------------------------------------|-------|
;; D4 – do-feed procedure(s)
;;---------------------------------------------------------------------|-------|

to do-feed
  ;; This routine is to be executed by the observer.

  ;; Agents feed on algae found in patches.
  ask seekers
  [
    let this-patch patch-here  ;; handle to the patch under the seeker.
    let energy-available ( [algae] of this-patch )
    if ( ( energy < ( c2-EPA - g-energy-per-deposit ) ) and
         ( energy-available > 0 ) )
    [
      ;; Case of there is food to eat.
      ;; Seeker eats.
      set energy ( energy + energy-available )
      ask this-patch
      [
        set algae 0
        set pcolor brown
      ]  ;; End of ask this-patch
    ]  ;; End of if(() and ())
  ]  ;; End of ask seekers.

  ;; End Do-feed procedure.
end

;;---------------------------------------------------------------------|-------|
;; D5 – do-reproduce procedure(s)
;;---------------------------------------------------------------------|-------|

to do-reproduce
  ;; This routine is to be executed by the observer.

  ask seekers
  [
    f-set-seeker-repro-flag        ;; A seeker routine.
    f-reproduce-seeker-by-fission  ;; A seeker routine.
  ]  ;; end of ask seekers.

  ;; End do-reproduce.
end

;;---------------------------------------------------------------------|-------|
;; f-set-seeker-repro-flag

to f-set-seeker-repro-flag
  ;; This routine is to be executed by a seeker.

  set b-is-ready-to-reproduce? true        ;; i.e. true is the default.
  if( energy < c2-RET )
    [ set b-is-ready-to-reproduce? false ] ;; due to lack of health.

  if( age < c2-RAT )
    [ set b-is-ready-to-reproduce? false ] ;; due to lack of maturity.

  ;; End f-set-seeker-repro-flag
end

;;---------------------------------------------------------------------|-------|
;; A seeker reproduces via fission, one mother having two daughters.

to f-reproduce-seeker-by-fission
  ;; This routine is to be executed by a seeker.

  if( b-is-ready-to-reproduce? = true )
  [

    let mother self
    let mothers-who who
    let mothers-patch patch-here

    let first-share-of-energy floor( energy / 2 )
    let second-share-of-energy ( energy - first-share-of-energy )

    let daughter-count 0
    ask mothers-patch
    [
      sprout-seekers 2
      [
        set daughter-count ( daughter-count + 1 )
        f-initialize-new-seeker
        set color ( [color] of mother )

        ;; Copy the C1 genetic/learned material.
        set c1-bases ( [c1-bases] of mother )
        set c1-expos ( [c1-expos] of mother )
        set c1-stren ( [c1-stren] of mother )
        set c1-pheno ( [c1-pheno] of mother )

        ;; C2 genes are static.
        set c2-DAT ( [c2-DAT] of mother )
        set c2-DET ( [c2-DET] of mother )
        set c2-RAT ( [c2-RAT] of mother )
        set c2-RET ( [c2-RET] of mother )
        set c2-EPM ( [c2-EPM] of mother )
        set c2-EPA ( [c2-EPA] of mother )

        ;; Note the mother of this daughter.
        set mas-who ( [who] of mother )
        set age 0

        ifelse ( daughter-count = 1 )
        [ set energy first-share-of-energy ]
        [ set energy second-share-of-energy ]

        set cause-of-death           ge-cod-none
        set b-is-ready-to-move?      true
        set b-is-ready-to-reproduce? false
        set b-is-ready-to-die?       false

        f-mutate-new-seeker
      ]  ;; End of sprout.
    ]  ;; End of ask mothers-patch

    ;; Set the cause of death for the mother.
    set b-is-ready-to-die? true
    set cause-of-death ge-cod-fission
    ;; The mother disappears after fission, leaving two daughters.
    ;; Death actually occurs in the Do-die step.

  ]  ;; End of if(ready-to-reproduce)

  ;; End f-reproduce-seeker-by-fission
end

;;---------------------------------------------------------------------|-------|
;; A new seeker mutates, changing the genetic basis of strategies.

to f-mutate-new-seeker
  ;; This routine is to be executed by a seeker.

  ;; Decide if a genetic mutation is to happen.
  let random-number ( random-float 1 )
  let threshold ( g-prob-of-mutation )

  ;; show ( word "f-m-n-c random-number: " random-number )
  ;; show ( word "f-m-n-c     threshold: " threshold )

  if ( random-number <= threshold )
  [
    ;; Case of mutation to be done.
    ;; Select the gene to be mutated.  These genes control
    ;;   the search strategy.
    let gene-to-be-mutated ( random 8 )

    ;; show ( word "Base Mutated." )
    ;; Mutate the gene base.
    let oldbase ( item gene-to-be-mutated c1-bases )
    ;; Choose a factor for the base.
    let base-factor ( item (random 8) gl-base-factors )
    ;; Mutate it
    let newbase ( oldbase * base-factor )
    set c1-bases ( replace-item gene-to-be-mutated c1-bases newbase )

    ;; show ( word "Gene Mutated." )
    ;; Mutate the gene.  The gene value is an integer of either sign.
    let oldgene ( item gene-to-be-mutated c1-expos )
    ;; Decide whether it will increase or decrease in value.
    let delta ( -1 + ( 2 * ( random 2 ) ) )  ;; Either a -1 or a 1.
    let newgene ( oldgene + delta )
    set c1-expos ( replace-item gene-to-be-mutated c1-expos newgene )

    ;; Calculate the strengths and phenotypic characters.
    f-find-strens-n-phenos
  ]

  ;; End of f-mutate-new-seeker
end

;;---------------------------------------------------------------------|-------|
;; D6 – do-die procedure(s)
;;---------------------------------------------------------------------|-------|

to do-die
  ;; This routine is to be executed by the observer.

  if( ( count seekers ) > 0 )
  [
    ask seekers
    [
      f-set-seeker-death-flag
      f-seeker-dies
    ]
  ]
end

;;---------------------------------------------------------------------|-------|
;; f-set-seeker-death-flag

to f-set-seeker-death-flag
  ;; This routine is to be executed by a seeker.

  ;; If a cause of death has already been noted, it dies.
  ifelse( cause-of-death > ge-cod-none )
  [
    ;; A cause of death has been previously flagged.
    ;; This is either due to hunger (in do-move) or fission (in do-repro).
    ;; In both cases energy has been stripped out already.
    ;; In the cases of c2-DET and c2-DAT, the flag is not yet set,
    ;;   and the energy remains.
    set b-is-ready-to-die? true
  ]  ;; End if.
  ;; Else
  [
    ;; No cause of death has been set yet.  Check basic vital signs.
    if( energy <= c2-DET )  ;; Death Energy Threshold.
    [
      set b-is-ready-to-die? true
      set cause-of-death ge-cod-hunger
      set energy 0
    ]

    if( age > c2-DAT )   ;; Death Age Threshold.
    [
      set b-is-ready-to-die? true
      set cause-of-death ge-cod-oldage
      set energy 0
    ]
  ]  ;; End else.

  ;; End f-set-seeker-death-flag
end

;;---------------------------------------------------------------------|-------|

to f-seeker-dies
  ;; This routine is to be executed by a seeker.

  if( b-is-ready-to-die? = true )
  [
    ;; show ( word "who died: " who )
    set gl-cod
      ( replace-item cause-of-death gl-cod ( 1 + item cause-of-death gl-cod ) )
    ;; show ( word "cod: " cause-of-death )
    ;; show gl-cod
    die  ;; The seeker disappears from the system.
  ]

  ;; End f-seeker-dies
end

;;---------------------------------------------------------------------|-------|
;; D7 - do-post-tick procedure(s)
;;---------------------------------------------------------------------|-------|

to do-post-tick
  ;; This routine is to be executed by the observer.

  f-update-aggregates  ;; Calculates entropic indices.
  display

  ;; End do-post-tick.
end

;;=====================================================================|=======|
;; SECTION E – DRAWING AND MAINTENANCE PROCEDURE(S)
;;=====================================================================|=======|

to f-update-aggregates
  ;; this routine is to be executed by the observer.

  ;; show "----------"
  ;; show "f-update-aggregates"

  ;; show ( word "g-energy-entropic-index before: " g-energy-entropic-index )
  ;; Calculate the entropic index of the energy distribution.
  set g-energy-entropic-index
    ( fr-get-energy-entropic-index ( [energy] of seekers ) )
  ;; show ( word "g-energy-entropic-index  after: " g-energy-entropic-index )
  print ""

  ;; show ""
  ;; show ""

  ;; show ( word "g-pheno-entropic-index before: " g-pheno-entropic-index )
  ;; Calculate the entropic index of the phenotype probability distribution.
  let l-pheno-partition ( fr-make-pheno-partition )
  set g-pheno-entropic-index ( fr-calc-pheno-entropic-index l-pheno-partition )
  ;; show ( word "g-pheno-entropic-index after:  " g-pheno-entropic-index )
  print ""

  ;; end of update-aggregates.
end

;;---------------------------------------------------------------------|-------|
;;  Partitions in ABMs.  Entropic index in ABMs.  GammaLn() function in ABMs.
;;---------------------------------------------------------------------|-------|
;;
;; REFERENCES: The diary notes including (or more recent versions):
;; A.  150527 PPR - Definition of Ei R17.PDF
;; B.  190927 NTF Shannon Vs Boltzmann R4.PDF
;; C.  180214 NTF Entropy and Units of Measure R5.PDF
;; D.  180822 NTF FactLn() and GammaLn() R3.PDF
;; E.  190927 NTF Entropy in a Histogram R4.PDF
;;

;; NOTE:  These routines create a partition (i.e. a histogram) independent of
;;   the capabilities of the plot controls in the interface tab.

;;---------------------------------------------------------------------|-------|

to-report fr-get-energy-entropic-index [ l-data-input ]
  ;; This routine is to be executed by the observer.

  ;; show "----------"
  ;; show "fr-get-energy-entropic-index"

  let l-energy-partition ( fr-make-energy-partition l-data-input )
  ;; show ( word "fr-nrg-ei: l-energy-partition - " l-energy-partition )

  let nrg-ei ( fr-calc-energy-entropic-index l-energy-partition )
  ;; show ( word "nrg-ei: " nrg-ei )

  report nrg-ei

  ;; End of fr-get-energy-entropic-index
end

;;---------------------------------------------------------------------|-------|

to-report fr-make-energy-partition [ l-data-input ]
  ;; This routine is to be executed by the observer.

  ;; show "----------"
  ;; show "fr-make-energy-partition"
  ;; show ( word "l-data-input:" l-data-input )

  ;; It creates binned data (a partition) that can be used to plot a histogram.
  ;; A typical call might look like this:
  ;;  set l-energy-partition
  ;;              ( fr-make-energy-partition ( [energy] in seekers ) )
  ;;  reports [ l-partition ]

  ;; Allocate memory.
  let a-no-of-agents length l-data-input
  let k-no-of-bins ( floor ( sqrt a-no-of-agents ) )
  let ave-data ( mean l-data-input )
  let min-data ( ( min l-data-input ) - 0.001 )
  let max-data ( ( max l-data-input ) + 0.001 )
  let bin-delta 0
    ;; show ( word "fmep: ave-data(1): " ave-data )
    ;; show ( word "fmep: min-data(1): " min-data )
    ;; show ( word "fmep: max-data(1): " max-data )
    ;; show ( word "fmep: bin-delta(1): " bin-delta )
    ;; show ""

  ifelse ( ( max-data - min-data ) < k-no-of-bins )
  [
    ;; Case of all data-points being the same.
    set min-data ( ave-data - ( k-no-of-bins / 2 ) )
    set max-data ( ave-data + ( k-no-of-bins / 2 ) )
    set bin-delta ( ( max-data - min-data ) / k-no-of-bins )
    ;; show ( word "fmep: min-data(2): " min-data )
    ;; show ( word "fmep: max-data(2): " max-data )
    ;; show ( word "fmep: bin-delta(2): " bin-delta )
  ]
  ;; Else
  [
    set bin-delta ( ( max-data - min-data ) / k-no-of-bins )
  ]

  ;; Initialize the output histogram with zeros.
  let l-partition ( n-values k-no-of-bins [0] )
  ;; show ( word "fmep: l-partition: " l-partition )

  let counter 0
  let data-point 0
  let bin-no 0
  let agents-in-bin 0
  let limit ( ( length l-data-input ) - 1 )
  ;; show ( word "fmep: limit: " limit )

  while [counter <= limit ]
  [
    ;; show ( word "fmep: counter(3): " counter )
    set data-point ( item counter l-data-input )
    ;; We need to convert this data point into a bin-number for the partition.
    set bin-no ( ( ( data-point - min-data ) / bin-delta ) )
    ;; show ( word "fmep: bin-no(3): " bin-no )
    set bin-no ( floor ( ( data-point - min-data ) / bin-delta ) )
    ;; show ( word "fmep: bin-no(3): " bin-no )
    ;; bin-no is a whole number which determines which bin the agent is counted in.
    ;; show ( word "fmep: data-point(3): " data-point )
    ;; show ( word "fmep: min-data(3): " min-data )
    ;; show ( word "fmep: bin-delta(3): " bin-delta )

    set agents-in-bin ( item bin-no l-partition )
    set agents-in-bin ( agents-in-bin + 1 )
    set l-partition ( replace-item bin-no l-partition agents-in-bin )

    set counter ( counter + 1 )
  ]

  report l-partition

  ;; End fr-make-energy-partition.
end

;;---------------------------------------------------------------------|-------|

to-report fr-calc-energy-entropic-index [ l-partition ]
  ;; This routine can be called by any agent.

  ;; show "----------"
  ;; show "fr-calc-energy-entropic-index"

  ;; It uses the formula that was developed in a series of diary notes
  ;;   that investigated the most effective formula for calculating
  ;;   entropy in an agent-based model such as "Model I" of EiLab.

  ;; I hypothesize that it is equally valid in most agent-based models, but
  ;;   that hypothesis needs to be expored and examined and tested.

  ;; THIS IS AN EXAMPLE OF AN AS-YET UNEXAMINED USAGE.

  ;;
  ;; REFERENCES: The diary notes including (or more recent versions):
  ;; A.  150527 PPR - Definition of Ei R17.PDF
  ;; B.  190927 NTF Shannon Vs Boltzmann R4.PDF
  ;; C.  180214 NTF Entropy and Units of Measure R5.PDF
  ;; D.  180822 NTF FactLn() and GammaLn() R3.PDF
  ;; E.  190927 NTF Entropy in a Histogram R4.PDF
  ;;

  ;; The formula used is equation 30 in the Ref E document.

  ;; It can be written like this:
  ;;   I = (GammaLn(A+1) - Sum(GammaLn(ai+1))) / (A*Ln(K))
  ;;   where:
  ;;          K is the number of bins in a histogram of some conserved quantity.
  ;;          A is the number of agents in the model.
  ;;          ai is the count of agents in bin i of the histogram.

  ;; The expected input is a partition constructed from a list of energy values.
  ;; The sum of all elements of all bins equals the number of agents.
  let a-no-of-agents ( sum l-partition )
  let k-no-of-bins ( length l-partition )

  ;; Note that GammaLn( ) is not native to NetLogo.  A version is implemented
  ;;   below.

  ;; show ( word "l-partition: " l-partition )

  let entropic-index fr-gammaln ( 1 + a-no-of-agents )
  foreach l-partition
     [ set entropic-index ( entropic-index - fr-gammaln ( 1 + ? ) ) ]

  let alpha ( a-no-of-agents / k-no-of-bins )
  let boltzmann-max ( fr-gammaln ( 1 + a-no-of-agents ) )
  set boltzmann-max
    ( boltzmann-max - ( k-no-of-bins * fr-gammaln ( alpha + 1 ) ) )

  set entropic-index ( entropic-index / boltzmann-max )

  report entropic-index

  ;; End of fr-calc-entropic-index.
end

;;---------------------------------------------------------------------|-------|

to-report fr-make-pheno-partition
  ;; This routine is to be executed by the observer.

  ;; show "----------"
  ;; show "fr-make-pheno-partition"

  ;; It creates binned data (a partition) that can be used to plot a histogram.
  ;; A typical call might look like this:
  ;;  set l-pheno-partition ( fr-make-pheno-partition )
  ;;  reports [ l-partition ]

  ;; Allocate memory.
  let a-no-of-agents count turtles
  let k-no-of-bins 8
  let new-value 0
  let l-pheno-list 0

  ;; Initialize the output histogram with zeros.
  let l-partition ( n-values k-no-of-bins [0] )
  ;; show ( word "fmpp: l-partition: " l-partition )

  ;; One-by-one, calculate the average phenotype value, and insert.
  let counter 0
  let limit ( length l-partition )
  while [ counter < limit ]
  [
    set l-pheno-list ( [ item counter c1-pheno ] of seekers )
    ;; show ( word "fmpp: l-pheno-list: " l-pheno-list )
    set new-value ( mean l-pheno-list )
    ;; show ( word "fmpp: new-value: " new-value )
    set l-partition ( replace-item counter l-partition new-value )
    ;; show ( word "fmpp: l-partition:" l-partition )
    set counter ( counter + 1 )
  ]

  ;; show ( word "fmpp: l-partition: " l-partition )

  report l-partition

  ;; End fr-make-pheno-partition.
end

;;---------------------------------------------------------------------|-------|

to-report fr-calc-pheno-entropic-index [ l-partition ]
  ;; This routine can be called by any agent.

  ;; show "----------"
  ;; show "fr-calc-pheno-entropic-index"

  ;; It uses the formula that was developed in a series of diary notes
  ;;   that investigated the most effective formula for calculating
  ;;   entropy in an agent-based model such as "Model I" of EiLab.

  ;; I hypothesize that it is equally valid in most agent-based models, but
  ;;   that hypothesis needs to be expored and examined and tested.

  ;; THIS IS AN EXAMPLE OF AN AS-YET UNEXAMINED USAGE.

  ;;
  ;; REFERENCES: The diary notes including (or more recent versions):
  ;; A.  150527 PPR - Definition of Ei R17.PDF
  ;; B.  190927 NTF Shannon Vs Boltzmann R4.PDF
  ;; C.  180214 NTF Entropy and Units of Measure R5.PDF
  ;; D.  180822 NTF FactLn() and GammaLn() R3.PDF
  ;; E.  190927 NTF Entropy in a Histogram R4.PDF
  ;;

  ;; The formula used is equation 30 in the Ref E document.

  ;; It can be written like this:
  ;;   I = (GammaLn(A+1) - Sum(GammaLn(ai+1))) / (A*Ln(K))
  ;;   where:
  ;;          K is the number of bins in a histogram of some conserved quantity.
  ;;          A is the number of agents in the model.
  ;;          ai is the count of agents in bin i of the histogram.

  ;; The expected input is a partition constructed from a list of energy values.
  ;; The sum of all elements of all bins equals the number of agents.
  let a-total ( sum l-partition )
  let k-no-of-bins ( length l-partition )

  ;; Note that GammaLn( ) is not native to NetLogo.  A version is implemented
  ;;   below.

  ;; show ( word "frcpei: l-partition: " l-partition )

  let entropic-index fr-gammaln ( 1 + a-total )
  foreach l-partition
     [ set entropic-index ( entropic-index - fr-gammaln ( 1 + ? ) ) ]

  let alpha ( a-total / k-no-of-bins )
  let boltzmann-max ( fr-gammaln ( 1 + a-total ) )
  set boltzmann-max
    ( boltzmann-max - ( k-no-of-bins * fr-gammaln ( alpha + 1 ) ) )

  set entropic-index ( entropic-index / boltzmann-max )

  report entropic-index

  ;; End of fr-calc-pheno-entropic-index.
end

;;---------------------------------------------------------------------|-------|

to-report fr-gammaln [ input-value ]
  ;; This routine can be called by any agent.

  ;; It reproduces a routine found on page 207 of this book:
  ;; Press, Teukolsky, Vetterling and Flanery (1986) "Numerical Recipes in
  ;;   Fortran", Cambridge, pp 206-209.
  ;; It uses Lanczos' approximation of the Ln(Gamma(x)) function.
  ;; Note that, when input-value is an integer, GammaLn(x+1) approximates Ln(x!).
  ;; When x = 160, the error seems to be about 1 in a billion.  That's pretty good.

  ;; This follows the Fortran code rather closely here.
  let x input-value
  let y x
  let tmp ( x + 5.5 )
  ;; Note that here I use ln( ) instead of log( ) as shown in the text.
  ;; The same problem comes up down below also.  With ln() it seems
  ;;   to work correctly.
  set tmp ( ( ( x + 0.5 ) * ( ln tmp ) ) - tmp )
  let ser 1.000000000190015

  ;; Next, I have unscrolled the six iterations of the loop.
  ;; cof(6) is now six different parameters.

  ;; Iteration 1
  set y ( y + 1 )
  set ser ( ser + ( 76.18009172947146 / y ) )

  ;; Iteration 2
  set y ( y + 1 )
  set ser ( ser + ( -86.50532032941677 / y ) )

  ;; Iteration 3
  set y ( y + 1 )
  set ser ( ser + ( 24.01409824083091 / y ) )

  ;; Iteration 4
  set y ( y + 1 )
  set ser ( ser + ( -1.231739572450155 / y ) )

  ;; Iteration 5
  set y ( y + 1 )
  set ser ( ser + ( 0.001208650973866179 / y ) )

  ;; Iteration 6
  set y ( y + 1 )
  set ser ( ser + ( -0.000005395239384953 / y ) )

  ;; Now, I follow the Fortran code closely again.
  let stp 2.5066282746310005

  ;; Note that here I use ln( ) instead of log( ) as shown in the text.
  let gammaln ( tmp + ( ln ( stp * ser / x ) ) )

  report precision gammaln 15

  ;; End of fr-gammaln.
end

;;---------------------------------------------------------------------|-------|

to-report fr-factorial [ input-value ]
  ;; This routine can be called by any agent.

  ;; It uses recursion to calculate n!.
  let n input-value
  ifelse ( n > 0 ) [ report n * fr-factorial ( n - 1 ) ]
                   [ report 1 ]

  ;; End of fr-factorial.
end

;;---------------------------------------------------------------------|-------|

to-report fr-factorialln [ input-value ]
  ;; This routine can be called by any agent.

  ;; It uses the recursive function to calculate n!, then takes the logarithm.
  let n input-value
  let factorialln fr-factorial n

  report precision ( ln factorialln ) 15

  ;; End of fr-factorialln.
end

There is only one version of this model, created about 5 years ago by Garvin Boyle.

Attached files

File Type Description Last updated
00b SimEvo V5.08.png preview Preview for '00b SimEvo V5.08' about 5 years ago, by Garvin Boyle Download
150527 PPR - Definition of EI R17.pdf pdf An unpublished paper in which I define entropy for use in agent-based models. about 5 years ago, by Garvin Boyle Download
180118 NTF Custom Functions in Excel R3.pdf pdf A diary entry in which I record how to make functions needed to calculate entropy. about 5 years ago, by Garvin Boyle Download
180119 NTF Entropy in a Histogram R1.pdf pdf A diary note in which I consider the nature of entropy for histograms. about 5 years ago, by Garvin Boyle Download
180210 NTF Shannon Vs Boltzmann R3.pdf pdf A diary note in which I ponder the differences in the two types of formulae. about 5 years ago, by Garvin Boyle Download
180214 NTF Entropy and Units of Measure R5.pdf pdf A diary note in which I consider the appropriates units of measure for entropy in an ABM. about 5 years ago, by Garvin Boyle Download
180316 NTF FactLn() and GammaLn() R2.pdf pdf I diary note in which I discuss the technical details of calculating aspects of entropy. about 5 years ago, by Garvin Boyle Download
191007 CoMSES 2019 - Palmiter Genes R4.pptx powerpoint An explanation of Palmiter's innovative approach to coding genes for evolution. about 5 years ago, by Garvin Boyle Download
1989 Dewdney - Palmiter's Simulated Evolution.pdf pdf Original Article in which Palmiter's "Simulated Evolution" was described. about 5 years ago, by Garvin Boyle Download

This model does not have any ancestors.

This model does not have any descendants.
