COVID19-variable-SD-Testing

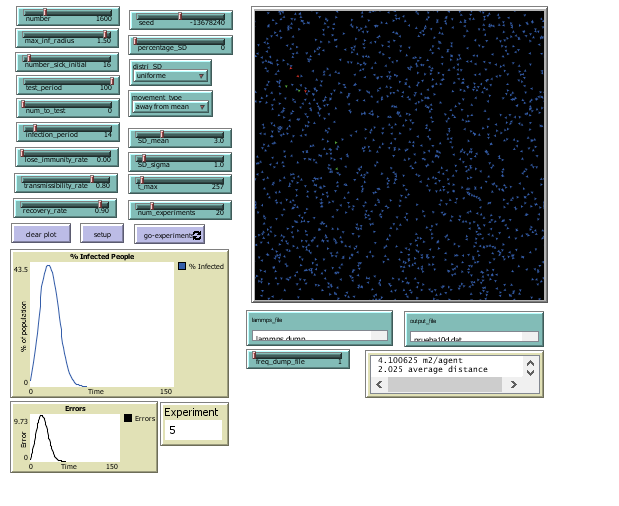

COVID19-variable-SD-Testing preview image

7 collaborators

Emb-carnet Eduardo Bringa (Author)
Diego_19-12-20_crop Diego Vazquez (Team member)
Default-person Romina Aparicio (Team member)
Default-person Geraudys Mora (Team member)

Tags

Model group COVID19-Simulation-Mza | Visible to everyone | Changeable by the author
Model was written in NetLogo 6.1.1 • Viewed 424 times • Downloaded 23 times • Run 0 times
Download the 'COVID19-variable-SD-Testing' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Ancestors and extensions

This is an extension of the model “Effects of testing and social distancing on the spread of infectious diseases ("Flattening the Curve")” by Shikhara Bhat. http://modelingcommons.org/browse/one_model/6238 Includes variable Social Distance and different types of agent motion. Also includes output with agent position and type.

Posted almost 4 years ago

Model Info and NetLogo Web

detailed Model Info can be found by using "Run in NetLogo" and then clicking on "Model Info" at the bottom. Running in NetLogo Web is not yet possible, and we are working to solve this issue as soon as possible.

Posted almost 4 years ago

Downloading the model

There is a problem with the zip file obtained by clicking on "Download this model ". To download a working version: Run in NetLogo Web--&rt; Click to Run Model --&rt; Export NetLogo. The "Export" buttom is at the top-rigth corner of the web screen.

Posted almost 4 years ago

Click to Run Model

;-------------------------------------------------------------------------------------------------------------------
;
;
;
; percentage_SD:      % of agents who keep SD
;
; SD_mean, SD_sigma:  mean value and variance of SD (normal distribution)
;
; movement_type:      "away from mean" o "metropolis T=0"
;
; test_period:        ticks between tests
;
; num_to_test:        number of tests performed each test_period ticks
;
; max_inf_radius:     maximum radius of infection
; transmissibility:   probability of becoming infected when there is a patient less than max_inf_radius
;
;
;-------------------------------------------------------------------------------------------------------------------

extensions [array]     ; to use arrays

globals [acum acum2 sigma n_experiments t s1 s2]

breed [infecteds infected]
breed [susceptibles susceptible]
breed [recovereds recovered]

infecteds-own [ clock tested? ]

turtles-own [ neighbours keep_SD SD_own xcor_old ycor_old ]




;-------------------------------------------------------------------------------------------------------------------
; General setup and setup to restart an experiment
;-------------------------------------------------------------------------------------------------------------------

to setup
  set acum array:from-list n-values t_max [0]   ; fill the array with zeros
  set acum2 array:from-list n-values t_max [0]
  set sigma array:from-list n-values t_max [0]
  set n_experiments 1        ; set number of experiments initially to zero

  setup-experiment

  let LX ( max-pxcor * 2 + 1)
  let LY ( max-pycor * 2 + 1)

  clear-output
  output-print "DENSITY:"
  output-write (number / (LX * LY)) output-print " agents/m2"
  output-write ((LX * LY) / number) output-print " m2/agent"
  output-write sqrt ((LX * LY) / number) output-print " average distance"
end

; setup for a new experiment

to setup-experiment

  clear-turtles
  clear-ticks
  random-seed new-seed    ; to start each simulation with a different seed
  create-turtles number
  [setxy random-xcor random-ycor
    set size 1
    set keep_SD ((random-float 1) < (percentage_SD / 100.0))  ; is a fixed attribute of each agent
    (ifelse distri_SD = "uniforme"
    [
      set SD_own SD_mean
    ]
    distri_SD = "normal"
    [
      set SD_own random-normal SD_mean SD_sigma
      if (SD_own < 0 )  [set SD_own 0 ]
    ]
    distri_SD = "poisson"
    [
      set SD_own random-poisson SD_mean
    ])

    ifelse (who < number_sick_initial)
    [set breed infecteds
    set clock 0
    set tested? False]
    [set breed susceptibles]
    recolor
  ]
  reset-ticks

  file-close ;cierra el lammps_file
  if file-exists? lammps_file
      [ file-delete lammps_file ]
  file-open lammps_file
end

to recolor
  if (breed = susceptibles) [
    set color green
  ]
  if (breed = infecteds) [
    ifelse (tested? = True)
    [set color white]
    [set color red]
  ]
  if (breed = recovereds) [
    set color blue
  ]
end


;-------------------------------------------------------------------------------------------------------------------
; move
;-------------------------------------------------------------------------------------------------------------------

to move [dist]
  ifelse(keep_SD) ; that an agent save SD is an attribute that is defined in setup with some probability
  [ ; aqui guarda SD...

    (ifelse
    movement_type = "metropolis T=0"
    [
      ; type of Metropolis movement at temperature 0 (move-count-accept-reject)
      set xcor_old xcor
      set ycor_old ycor
      rt random-float 360
      fd dist
      if (count(other turtles in-radius SD_own) >= 1 )
      [ set xcor xcor_old
        set ycor ycor_old
      ]

    ]
    movement_type = "away from mean"
    [
      ; type of movement runs away from the center of mass of neighbors (counts-turns 180-moves)
      set neighbours other turtles in-radius SD_own
      if (count(neighbours) >= 1) ;Move only if you have neighbours
      [
        facexy (mean [xcor] of neighbours)
               (mean [ycor] of neighbours)
        rt 180  ; Turn away from the mean x and y co_ordinates of your neighbours
        fd dist
      ]

    ]
    [
      error 111
    ])

  ]
  [
    ; random walk...
    rt random-float 360  ;Turn to a random direction
    fd dist

  ]
end

to get_infected ;S _> I
  let sick_neighbours infecteds in-radius max_inf_radius
  if (breed = susceptibles and count sick_neighbours  >= 1)
   [if ((random-float 1) <  (1 - ((1 - transmissibility_rate)^(count(sick_neighbours)))))
    [set breed infecteds
      set clock 0
      set tested? False]
      ]
end

to recover ;I _> R
  if (clock >= infection_period and (random-float 1 < recovery_rate))
    [set breed recovereds]
end

to lose_immunity ;R _> S
  if (random-float 1 < lose_immunity_rate)
  [set breed susceptibles]
end

to advance_clock ;For recovery of infected people
  set clock (clock + 1)
end

to runtest
  if (breed = infecteds)
  [die]
end

to test;
  ifelse (num_to_test <= count(turtles))
    [let testsubjects n-of num_to_test turtles
    ask (testsubjects) [runtest]]
    [ask (turtles) [runtest]]
end

;-------------------------------------------------------------------------------------------------------------------
; go to do various experiments and average
;-------------------------------------------------------------------------------------------------------------------

to go-experiments

  go

  if (count(infecteds) = 0 or count(infecteds) = count(turtles) or ticks > t_max) ;Stop if nobody is infected, or everybody is infected
  [
    ; if you enter here start a new experiment

    if (n_experiments = num_experiments)
    [
      file-close ;cierra el lammps_file
      if file-exists? output_file
         [ file-delete output_file ]
      file-open output_file
      file-print "# t infecteds error"
      set t 0
      while [t < t_max]
      [
        set s1 array:item acum t
        set s2 array:item acum2 t
        array:set sigma t sqrt ( s2 / num_experiments - ( (s1 / num_experiments) ^ 2 ) )
        file-write t
        file-write ( s1 / num_experiments )
        file-write ( ( array:item sigma t ) / sqrt(num_experiments ) )
        file-print ""
        set t (t + 1)
      ]
      file-close
      stop
    ]
    set n_experiments (n_experiments + 1)
    setup-experiment
  ]
end

to lammps
  file-print "ITEM: TIMESTEP"
  file-print ticks
  file-print "ITEM: NUMBER OF ATOMS"
  file-print count turtles
  file-print "ITEM: BOX BOUNDS xx yy zz"
  file-write min-pxcor
  file-type " "
  file-print max-pxcor
  file-write min-pycor
  file-type " "
  file-print max-pycor
  file-print "0.0 0.0"
  file-print "ITEM: ATOMS id type x y z radius"
  ask (recovereds) [
    file-write who
    file-write 1
    file-type " "
    file-write xcor
    file-type " "
    file-write ycor
    file-type " "
    file-write 0.0
    file-type " "
    file-print SD_own
  ]
  ask (susceptibles) [
    file-write who
    file-write 2
    file-type " "
    file-write xcor
    file-type " "
    file-write ycor
    file-type " "
    file-write 0.0
    file-type " "
    file-print SD_own
  ]
  ask (infecteds) [
    file-write who
    file-write 3
    file-type " "
    file-write xcor
    file-type " "
    file-write ycor
    file-type " "
    file-write 0.0
    file-type " "
    file-print SD_own
  ]
end

; go of an experiment

to go

  if (ticks mod freq_dump_file = 0)
     [lammps]

  ask (recovereds) [lose_immunity]
  ask (susceptibles) [get_infected]
  ask (infecteds) [advance_clock]
  ask (infecteds) [recover]
  ask (turtles) [move 1]
  ask (turtles) [recolor]
  if (ticks mod test_period = 0)
      [test]

  if ticks < t_max
  [
    array:set acum ticks  ( array:item acum ticks  + (100 * count(infecteds) / count(turtles) ) )
    array:set acum2 ticks ( array:item acum2 ticks + ((100 * count(infecteds) / count(turtles)) ^ 2) )

    set s1 array:item acum ticks
    set s2 array:item acum2 ticks
    array:set sigma ticks sqrt ( s2 / n_experiments - ( (s1 / n_experiments) ^ 2 ) )
  ]

  tick
end
