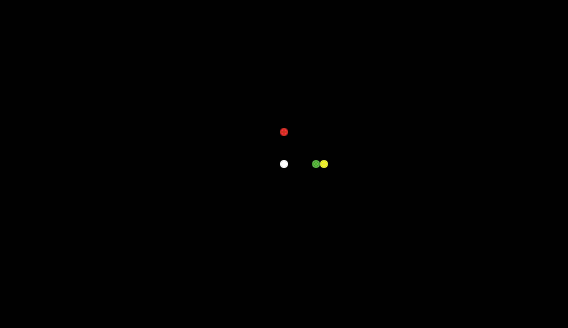

Click to Run Model

breed [bodys body]


globals [ ; variavel global todos podem alterar
  body1
  body2
  body3
  body4
  force



























; vetores do copo 1 em relação ao corpo 2
  fx1_2     ; x-component of force vector
  fy1_2     ; y-component of force vector
; vetores do copo 1 em relação ao corpo 3
  fx1_3     ; x-component of force vector
  fy1_3     ; y-component of force vector
; vetores do copo 2 em relação ao corpo 1
  fx1_4     ; x-component of force vector
  fy1_4     ; y-component of force vector
; vetores do copo 2 em relação ao corpo 1
  fx2_1     ; x-component of force vector
  fy2_1     ; y-component of force vector
; vetores do copo 2 em relação ao corpo 3
  fx2_3     ; x-component of force vector
  fy2_3     ; y-component of force vector
; vetores do copo 3 em relação ao corpo 1
   fx2_4     ; x-component of force vector
  fy2_4     ; y-component of force vector
; vetores do copo 2 em relação ao corpo 3
  fx3_1     ; x-component of force vector
  fy3_1     ; y-component of force vector
; vetores do copo 3 em relação ao corpo 2
  fx3_2     ; x-component of force vector
  fy3_2     ; y-component of force vector
  fx3_4     ; x-component of force vector
  fy3_4     ; y-component of force vector
  fx4_1     ; x-component of force vector
  fy4_1     ; y-component of force vector
   fx4_2     ; x-component of force vector
  fy4_2     ; y-component of force vector
   fx4_3     ; x-component of force vector
  fy4_3     ; y-component of force vector
; vetores do copo 3 em relação ao corpo 2
; vetores do copo 3 em relação ao corpo 2
  vx     ; x-component of velocity vector
  vy     ; y-component of velocity vector

  ]

to Clean

  ;; poem os valores padrao
ca
set X1 0
set Y1 0

set X2 5
set Y2 0

set X3 0
set Y3 4

set X4 4
set Y4 0

set Mass1 1
set Mass2 1
set Mass3 1
set Mass4 1


set VelocityX1 0
set VelocityX2 0
set VelocityX3 0
set VelocityX4 0
set VelocityY1 0
set VelocityY2 0
set VelocityY3 0
set VelocityY4 0


  ;; plot standard position
    set-default-shape turtles "circle"
  create-bodys 1 [set body1 self set color white setxy X1 Y1 set pen-size 1 pen-down ]
  create-bodys 1 [set body2 self set color yellow setxy X2 Y2 set pen-size 1 pen-down]
  create-bodys 1 [set body3 self set color red setxy X3 Y3 set pen-size 1 pen-down]
  create-bodys 1 [set body4 self set color green setxy X4 Y4 set pen-size 1 pen-down ]
end

to Plot_bodies
  ca
    ;; plot standard position
    set-default-shape turtles "circle"
  create-bodys 1 [set body1 self set color white setxy X1 Y1 set pen-size 1 pen-down ]
  create-bodys 1 [set body2 self set color yellow setxy X2 Y2 set pen-size 1 pen-down]
  create-bodys 1 [set body3 self set color red setxy X3 Y3 set pen-size 1 pen-down]
  create-bodys 1 [set body4 self set color blue setxy X4 Y4 set pen-size 1 pen-down]
end

to Stable  ;; mostra um exemplo de orbita estavel dois sois e um planeta

clear-all
  ;; poem os valores padrao
ca
set X1 -2
set Y1 0

set X2 2
set Y2 0

set X3 20
set Y3 0

set X4 -20
set Y4 0

set VelocityX1 0
set VelocityX2 0
set VelocityX3 0
set VelocityX4 0
set VelocityY1 0.1
set VelocityY2 -0.1
set VelocityY3 0.07
set VelocityY4 -0.07

set Mass1 1
set Mass2 1
set Mass3 0.1
set Mass4 0.1

  ;; plot position
  set-default-shape turtles "circle"
  create-bodys 1 [set body1 self set color white setxy X1 Y1 set pen-size 1 pen-down ]
  create-bodys 1 [set body2 self set color yellow setxy X2 Y2 set pen-size 1 pen-down]
  create-bodys 1 [set body3 self set color red setxy X3 Y3 set pen-size 1 pen-down]
  create-bodys 1 [set body4 self set color blue setxy X3 Y3 set pen-size 1 pen-down]
end

to Stable_2
    ;; three planets and one sun
clear-all
  ;; set the default values
ca
set X1 -23
set Y1 0
set X2 8
set Y2 0

set X3 0
set Y3 0

set X4 0
set Y4 0


set VelocityX1 0
set VelocityX2 0
set VelocityX3 0
set VelocityX4 0
set VelocityY1 1.5
set VelocityY2 3.5
set VelocityY3 0
set VelocityY4 0

set Mass1 1
set Mass2 1
set Mass3 1000
set Mass4 1000

  ;; plot position
  set-default-shape turtles "circle"
  create-bodys 1 [set body1 self set color white setxy X1 Y1 set pen-size 1 pen-down ]
  create-bodys 1 [set body2 self set color yellow setxy X2 Y2 set pen-size 1 pen-down]
  create-bodys 1 [set body3 self set color red setxy X3 Y3 set pen-size 1 pen-down]
  create-bodys 1 [set body3 self set color green setxy X4 Y4 set pen-size 1 pen-down]
end

to go

; integration time an improvement that can be added in the future
;  every 0.1
;  [

  ; check if the bodies are in the field of view
  if body1 = nobody [ stop ]
   if body2 = nobody [ stop ]
   if body3 = nobody [ stop ]
   if body4 = nobody [ stop ]


    ;Calculate force
    ask body1 [
      update-force1_2
      update-force1_3
      update-force1_4

    ]

     ask body2 [
      update-force2_1
      update-force2_3
      update-force2_4

    ]


     ask body3 [
      update-force3_2
      update-force3_1
      update-force3_4

    ]


      ask body4 [
       update-force4_1
       update-force4_2
       update-force4_3

    ]


  ;; move the particles at the same time , to not influence the results
  ask body1 [move1]
  ask body2 [move2]
  ask body3 [move3]
  ask body4 [move4]
;
end


; bode1

to update-force1_2
  ;body distance 1 to 2
   let r distance body2
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force  1_2
  set force 0.1 * (Mass1 * Mass2)/(r ^ 2) ;; has been multiplied by 0.1 so the particles don't leave the field of view
 ; separating the force in the components x and y
 face body2
 set fx1_2 force * dx
 set fy1_2 force * dy
end

to update-force1_3
  ;body distance 1 to 2
   let r distance body3
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 1_2
  set force 0.1 * (Mass1 * Mass3)/(r ^ 2)
 ; separating the force in the components x e y
 face body3
 set fx1_3 force * dx
 set fy1_3 force * dy
end

to update-force1_4
  ;body distance 1 to 4
   let r distance body4
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 1_2
  set force 0.1 * (Mass1 * Mass4)/(r ^ 2)
 ; separating the force in the components x e y
 face body4
 set fx1_4 force * dx
 set fy1_4 force * dy
end


; bode2

to update-force2_1
  ;body distance 2 ao 1
   let r distance body1
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 2_1 (we know that is equal to - body strength 1_2, but in doubt, let's calculate)
  set force 0.1 * (Mass2 * Mass1)/(r ^ 2)
 ; separating the force in the components x and y
 face body1
 set fx2_1 force * dx
 set fy2_1 force * dy
end

to update-force2_3
  ;body distance 2 to 3
   let r distance body3
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 2_3
  set force 0.1 * (Mass2 * Mass3)/(r ^ 2)
 ; separating the force in the components x and y
 face body3
 set fx2_3 force * dx
 set fy2_3 force * dy
end

to update-force2_4
  ;body distance 2 to 4
   let r distance body4
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 2_4
  set force 0.1 * (Mass2 * Mass4)/(r ^ 2)
 ; separating the force in the components x and y
 face body4
 set fx2_4 force * dx
 set fy2_4 force * dy
end

; bode3

to update-force3_1
  ;body distance 3 to 1
   let r distance body1
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 3_1 (we know that is equal to - body strength 1_3)
  set force 0.1 * (Mass3 * Mass1)/(r ^ 2)
 ; separating the force in the components x and y
 face body1
 set fx3_1 force * dx
 set fy3_1 force * dy
end

to update-force3_2
  ;body distance 3 to 2
   let r distance body2
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 2_3 (we know that is equal to - body strength 3_2)
  set force 0.1 * (Mass3 * Mass2)/(r ^ 2)
 ; separating the force in the components x and y
 face body2
 set fx3_2 force * dx
 set fy3_2 force * dy
end

to update-force3_4
  ;body distance 3 to 4
   let r distance body4
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 2_4 (we know that is equal to - body strength 3_4)
  set force 0.1 * (Mass3 * Mass4)/(r ^ 2)
 ; separating the force in the components x and y
 face body4
 set fx3_4 force * dx
 set fy3_4 force * dy
end

; bode4

to update-force4_1
  ;body distance 4 to 1
   let r distance body1
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 4_1 (we know that is equal to - body strength 4_1)
  set force 0.1 * (Mass4 * Mass1)/(r ^ 2)
 ; separating the force in the components x and y
 face body1
 set fx4_1 force * dx
 set fy4_1 force * dy
end

to update-force4_2
  ;body distance 4 to 2
   let r distance body2
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 4_1 (we know that is equal to - body strength 4_2)
  set force 0.1 * (Mass4 * Mass2)/(r ^ 2)
 ; separating the force in the components x and y
 face body2
 set fx4_2 force * dx
 set fy4_2 force * dy
end

to update-force4_3
  ;body distance 4 to 3
   let r distance body3
  ; avoiding infinity
  if (r < 0.5 and r > -0.5) [set r 0.5]
  ;Calculating body force 4_1 (we know that is equal to - body strength 4_3)
  set force 0.1 * (Mass4 * Mass3)/(r ^ 2)
 ; separating the force in the components x and y
 face body3
 set fx4_3 force * dx
 set fy4_3 force * dy
end

to move1 ; move the particles
  ;updates particle speed and adds force;; F=m.a, then have to divide by mass
  set VelocityX1 VelocityX1 + (fx1_2 / Mass1) + (fx1_3 / Mass1) + (fx1_4 / Mass1)
  set VelocityY1 VelocityY1 + (fy1_2 /  Mass1) + (fy1_3 /  Mass1) + (fy1_4 /  Mass1)

  ; disappears if it goes off the edge
  if abs (ycor + vy) > max-pycor or abs (xcor + vx) > max-pxcor [ die ]

  ; update particle position
    set X1 X1 + VelocityX1
    set Y1 Y1 + VelocityY1
    setxy X1 Y1
end

to move2 ;  move the particles
  ;updates particle speed and adds force
  set VelocityX2 VelocityX2 + (fx2_1 / Mass2) + (fx2_3 / Mass2) + (fx2_4 / Mass2)
  set VelocityY2 VelocityY2 + (fy2_1 / Mass2) + (fy2_3 / Mass2) + (fy2_4 / Mass2)


  ; disappears if it goes off the edge
  if abs (ycor + vy) > max-pycor or abs (xcor + vx) > max-pxcor [ die ]

  ; update particle position
    set X2 X2 + VelocityX2
    set Y2 Y2 + VelocityY2
    setxy X2 Y2
end

to move3 ;  move the particles
  ;updates particle speed and adds force
  set VelocityX3 VelocityX3 + (fx3_1 / Mass3) + (fx3_2 / Mass3) + (fx3_4 / Mass3)
  set VelocityY3 VelocityY3 + (fy3_1 / Mass3) + (fy3_2 / Mass3) + (fy3_4 / Mass3)

  ; disappears if it goes off the edge
  if abs (ycor + vy) > max-pycor or abs (xcor + vx) > max-pxcor [ die ]

  ; update particle position
    set X3 X3 + VelocityX3
    set Y3 Y3 + VelocityY3
    setxy X3 Y3
end

to move4 ;  move the particles
  ;updates particle speed and adds force
  set VelocityX4 VelocityX4 + (fx4_1 / Mass4) + (fx4_2 / Mass4) + (fx4_3 / Mass4)
  set VelocityY4 VelocityY4 + (fy4_1 / Mass4) + (fy4_2 / Mass4) + (fy4_3 / Mass4)

  ; disappears if it goes off the edge
  if abs (ycor + vy) > max-pycor or abs (xcor + vx) > max-pxcor [ die ]

  ; update particle position
    set X4 X4 + VelocityX4
    set Y4 Y4 + VelocityY4
    setxy X4 Y4
end

There is only one version of this model, created over 3 years ago by Zain Alsharari.

Attached files

File Type Description Last updated
four-body-problem.png preview Preview for 'four-body-problem' over 3 years ago, by Zain Alsharari Download

This model does not have any ancestors.

Children:

Graph of models related to 'four-body-problem'
