Brownian Motion

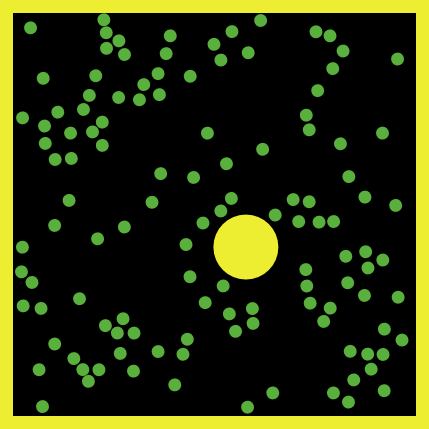

Brownian Motion preview image

1 collaborator

Jesus_marcano Jesus Marcano (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.2.1 • Viewed 114 times • Downloaded 7 times • Run 0 times
Download the 'Brownian Motion' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  ;; time to next collision
  tick-delta
  ;; distance from the center to the walls
  box-edge
  ;; first and second particle colliding.
  particle1 particle2
  ;; list of collisions times [[time particle1 particle2] ...]
  collisions
  big-particle-size big-particle-mass
  small-particle-size small-particle-mass
]

breed [particles particle]

particles-own [
  speed
  mass
  energy
]
;;;;;;;;;;;;;;;;;;;;;; SETUP PROCEDURES ;;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape particles "circle"
  set box-edge max-pxcor
  ask patches with [(abs pxcor = box-edge or abs pycor = box-edge)]
    [ set pcolor yellow ]
  set small-particle-mass 2 * initial-total-energy / number-of-particles
  set big-particle-mass mass-ratio * small-particle-mass
  set small-particle-size 1
  set big-particle-size 5
  make-particles
  set particle1 nobody
  set particle2 nobody
  set collisions []
  reset-ticks
  ask particles [ check-for-wall-collision ]
  ask particles [ check-for-particle-collision ]
end

to make-particles
  ;;
  ;; Create one big particle at the center
  create-particles 1 [
    set speed 0
    set size big-particle-size
    set mass big-particle-mass
    set energy (mass * speed ^ 2) / 2
    set color yellow
    setxy 0 0
  ]
  create-particles number-of-particles [
    set speed 1
    set size 1
    set mass small-particle-mass
    set energy (mass * speed ^ 2) / 2
    set color green
    while [overlapping?] [position-randomly]
  ]
end

to-report overlapping?
  report any? other particles in-radius small-particle-size or
  distance patch 0 0 <= (small-particle-size + big-particle-size) / 2
end

to position-randomly ;; particle procedure
  ;; place particle at random inside the box
  setxy one-of [1 -1] * random-float (box-edge - 0.5 - size / 2)
  one-of [1 -1] * random-float (box-edge - 0.5 - size / 2)
end

;;;;;;;;;;;;;;;;;; GO PROCEDURES ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to go
  ;; advance time to next collision tick-delta
  ;; and set the colliding particles particle1 and particle2
  choose-next-collision
  ask particles [ jump (speed * tick-delta) ]
  perform-next-collision
  tick-advance tick-delta
  recalculate-particles-that-just-collided
end

to choose-next-collision
  ;;
  if collisions = [] [ stop ]
  ;; pick the shortes time of projected collision
  let this-next first collisions
  foreach collisions [a -> if first a < first this-next [set this-next a] ]
  let dt item 0 this-next
  ;; if the next collision is more than 1 tick only advance 1 tick
  set tick-delta (dt - ticks)
  if tick-delta > 1 [
    set tick-delta 1
    set particle1 nobody
    set particle2 nobody
    stop
  ]
  set particle1 item 1 this-next
  set particle2 item 2 this-next
end

to perform-next-collision
  ;;
  if particle1 = nobody [ stop ]
  if is-string? particle2 [
    if particle2 = "left wall" or particle2 = "right wall" [
      ask particle1 [ set heading (- heading) ]
      stop
    ]
    if particle2 = "top wall" or particle2 = "bottom wall" [
      ask particle1 [ set heading (180 - heading) ]
      stop
    ]
  ]
  ask particle1 [ collide-with particle2 ]
end

to collide-with [ other-particle ]
  ;;
  let mass2 [mass] of other-particle
  let speed2 [speed] of other-particle
  let heading2 [heading] of other-particle
  let theta towards other-particle
  ;; convert velocity to components along theta and perpendicular to theta
  let v1-tangent (speed * cos (theta - heading))
  let v1-perpendicular (speed * sin (theta - heading))
  let v2-tangent (speed2 * cos (theta - heading2))
  let v2-perpendicular (speed2 * sin (theta - heading2))
  ;; compute the velocity of the center of mass along theta
  let vcm (((mass * v1-tangent) + (mass2 * v2-tangent)) / (mass + mass2))
  ;; new velocities after the collision along direction of theta
  set v1-tangent (2 * vcm - v1-tangent)
  set v2-tangent (2 * vcm - v2-tangent)
  ;; convert back to normal speed and heading
  set speed sqrt (v1-tangent ^ 2 + v1-perpendicular ^ 2)
  set energy kinetic-energy
  if v1-perpendicular != 0 or v1-tangent != 0 [
    set heading (theta - (atan v1-perpendicular v1-tangent))
  ]
  ask other-particle [
    set speed sqrt(v2-tangent ^ 2 + v2-perpendicular ^ 2)
    set energy kinetic-energy
    if v2-perpendicular != 0 or v2-tangent != 0 [
      set heading (theta - (atan v2-perpendicular v2-tangent))
    ]
  ]
end

to recalculate-particles-that-just-collided
  ;; Remove from the list collisions of particles that we're done
  ifelse is-turtle? particle2 [
    set collisions filter [ a ->
      item 1 a != particle1 and
      item 2 a != particle1 and
      item 1 a != particle2 and
      item 2 a != particle2 ] collisions
    ask particle2 [ check-for-wall-collision ]
    ask particle2 [ check-for-particle-collision ]
  ][
    ;; particle2 is a wall. Filter out particle1 of the list
    set collisions filter [ a ->
      item 1 a != particle1 and
      item 2 a != particle1 ] collisions
  ]
  if particle1 != nobody [
    ask particle1 [ check-for-wall-collision ]
    ask particle1 [ check-for-particle-collision ]
  ]
  ;; make sure we fileter out particles1 and particle2
  set collisions filter [ a ->
    item 1 a != particle1 or
    item 2 a != particle2 ] collisions
  ;; done
  set particle1 nobody
  set particle2 nobody
end

to check-for-wall-collision
  ;; determines when a particle will hit a wall
  ;; first along the horizontal direction
  let vx (speed * dx)
  if vx != 0 [
    ;; how long to hit the right wall
    let t-right (box-edge - 0.5 - xcor - (size / 2)) / vx
    if t-right > 0 [assign-colliding-wall t-right "right wall"]
    ;; how long to hit the left wall
    let t-left ((- box-edge) + 0.5 - xcor + (size / 2)) / vx
    if t-left > 0 [assign-colliding-wall t-left "left wall"]
  ]
  ;; Now along the vertical direction
  let vy (speed * dy)
  if vy != 0 [
    ;; how long to hit the top wall
    let t-top (box-edge - 0.5 - ycor - (size / 2)) / vy
    if t-top > 0 [assign-colliding-wall t-top "top wall"]
    ;; how long to hit the bottom wall
    let t-bottom ((- box-edge) + 0.5 - ycor + (size / 2)) / vy
    if t-bottom > 0 [assign-colliding-wall t-bottom "bottom wall"]
  ]
end

to assign-colliding-wall [time-to-collision wall]
  ;; store the time to collision, self (the particle) and the wall
  ;; add clock to time-to-collision
  let colliding-pair (list (time-to-collision + ticks) self wall)
  set collisions fput colliding-pair collisions
end

to check-for-particle-collision
  ;;
  let my-x xcor
  let my-y ycor
  let my-particle-size size
  let my-x-speed speed * dx
  let my-y-speed speed * dy
  ask other particles [
    let dpx (xcor - my-x) ;; relative distance along x direction
    let dpy (ycor - my-y)
    let x-speed (speed * dx)
    let y-speed (speed * dy)
    let dvx (x-speed - my-x-speed) ;; relative speed difference
    let dvy (y-speed - my-y-speed)
    let sum-radii (((my-particle-size) / 2) + (([size] of self) / 2))
    let p-squared (dpx ^ 2 + dpy ^ 2 - sum-radii ^ 2)
    let pv ( 2 * ((dpx * dvx) + (dpy * dvy)))
    let v-squared ( dvx ^ 2 + dvy ^ 2)
    let determinant pv ^ 2 - (4 * v-squared * p-squared)
    let time-to-collision -1
    if determinant > 0 [
      set time-to-collision ( - pv - sqrt determinant) / (2 * v-squared)
    ]
    if time-to-collision > 0 [
      set collisions fput (list (time-to-collision + ticks) self myself)
      collisions
    ]
  ]
end

to-report kinetic-energy
  report (mass * speed ^ 2) / 2
end
