Ant-Based Stochastic Search-and-Reset Strategy

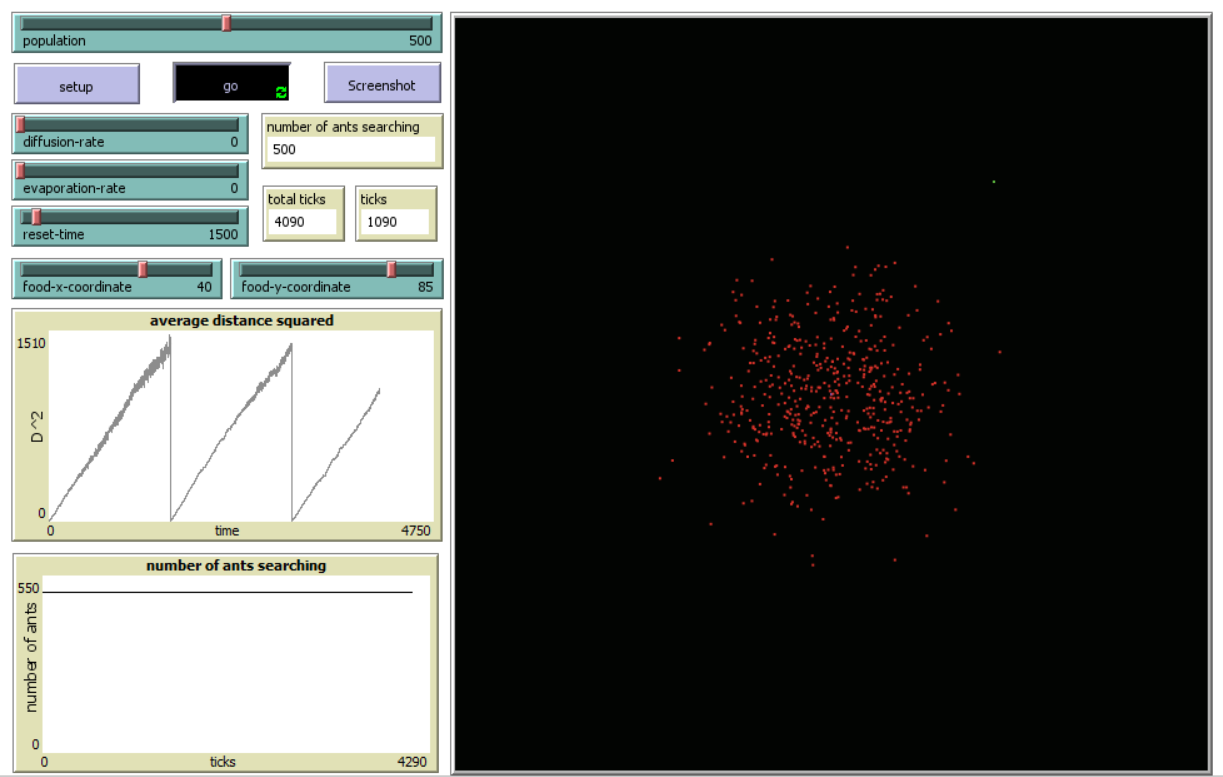

Ant-Based Stochastic Search-and-Reset Strategy preview image

1 collaborator

Default-person Ayaan Dutt (Author)

Tags

ants

Tagged by Ayaan Dutt almost 3 years ago

search model

Tagged by Ayaan Dutt almost 3 years ago

stochastic

Tagged by Ayaan Dutt almost 3 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.2.0 • Viewed 220 times • Downloaded 12 times • Run 0 times
Download the 'Ant-Based Stochastic Search-and-Reset Strategy' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

patches-own [
  chemical             ;; amount of chemical on this patch
  food                 ;; amount of food on this patch (0, 1, or 2)
  nest?                ;; true on nest patches, false elsewhere
  nest-scent           ;; number that is higher closer to the nest
  food-source-number   ;; number (1, 2, or 3) to identify the food sources
  xc                   ;; unwrapped xcor
  yc                   ;; unwrapped ycor
  dist                 ;; turtle distance from origin

]

globals [
  total-time           ;; total number of ticks since initiation
  nest-mark            ;; marks the nest
]

;;;;;;;;;;;;;;;;;;;;;;;;
;;; Setup procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape turtles "bug"
  create-turtles population
  [ set size 1         ;; easier to see
    set color red  ]   ;; red = not carrying food
  setup-patches
  reset-ticks
end

to setup-patches
  ask patches
  [ setup-nest
    setup-food
    recolor-patch ]
end

to setup-nest  ;; patch procedure
  ;; set nest? variable to true inside the nest, false elsewhere
  set nest? (distancexy 0 0) < 1
  ;; spread a nest-scent over the whole world -- stronger near the nest
  ;set nest-scent 200 - distancexy 0 0
end

to setup-food  ;; patch procedure
  ;; setup food source one
  if (distancexy food-x-coordinate food-y-coordinate) < 1
  [ set food-source-number 1 ]
  ;; setup food source two on the lower-left
  ;if (distancexy (-0.6 * max-pxcor) (-0.6 * max-pycor)) < 1
  ;[ set food-source-number 2 ]
  ;; setup food source three on the upper-left
  ;if (distancexy (-0.8 * max-pxcor) (0.8 * max-pycor)) < 1
  ;[ set food-source-number 3 ]
  ;; set "food" at sources to either 1 or 2, randomly
  if food-source-number > 0
  [ set food 1 ]
end

to recolor-patch  ;; patch procedure
  ;; give color to nest and food sources
  ifelse nest?
  [ set pcolor violet ]
  [ ifelse food > 0
    [ if food-source-number = 1 [ set pcolor green ]
      if food-source-number = 2 [ set pcolor green + 3  ]
      if food-source-number = 3 [ set pcolor green - 3 ] ]
    ;; scale color to show chemical concentration
    [ set pcolor scale-color green chemical 0.1 5 ] ]
end

;;;;;;;;;;;;;;;;;;;;;
;;; Go procedures ;;;
;;;;;;;;;;;;;;;;;;;;;

to go  ;; forever button
  ifelse ticks < reset-time ;; if time is less than reset time
   [ ask turtles
     [ if food > 0;; stop tracking ants that find food
        [ set nest-mark 1 ;; mark nest
          die ]
     wiggle
     fd 1]] ;; move
  [ ask turtles ;; time is more than reset time
     [ setxy 0 0 ;; send turtles back to origin
       if nest-mark > 0 ;; if nest is marked, stop tracking ants
         [ die ]]
    reset-ticks ] ;; reset ticks
   if count turtles = 0
    [stop] ;; stop when all ants have found food
  set total-time total-time + 1 ;; time increment
  tick
  ;diffuse chemical (diffusion-rate / 100)
  ;ask patches
  ;[ set chemical chemical * (100 - evaporation-rate) / 100  ;; slowly evaporate chemical
  ;  recolor-patch ]
end

to look-for-food  ;; turtle procedure
  if food > 0
   [set nest-mark 1
        die ]
  ;[ set color orange + 1     ;; pick up food
  ;  rt 180                   ;; and turn around
  ;  stop ]
  ;; go in the direction where the chemical smell is strongest
  ;if (chemical >= 0.05) and (chemical < 2)
  ;[ uphill-chemical ]
end

to return-to-nest  ;; turtle procedure
  ;; drop food and head out again
  ;  set color red
  ;  rt 180 ]
  ;[ set chemical chemical + 60  ;; drop some chemical
  ; uphill-nest-scent ]         ;; head toward the greatest value of nest-scent
end

;; sniff left and right, and go where the strongest smell is

to uphill-chemical  ;; turtle procedure
  ;let scent-ahead chemical-scent-at-angle   0
  ;let scent-right chemical-scent-at-angle  45
  ;let scent-left  chemical-scent-at-angle -45
  ;if (scent-right > scent-ahead) or (scent-left > scent-ahead)
  ;[ ifelse scent-right > scent-left
  ;  [ rt 45 ]
  ;  [ lt 45 ] ]
end

;; sniff left and right, and go where the strongest smell is

to uphill-nest-scent  ;; turtle procedure
  ;let scent-ahead nest-scent-at-angle   0
  ;let scent-right nest-scent-at-angle  45
  ;let scent-left  nest-scent-at-angle -45
  ;if (scent-right > scent-ahead) or (scent-left > scent-ahead)
  ;[ ifelse scent-right > scent-left
  ;  [ rt 45 ]
  ;  [ lt 45 ] ]
end

to wiggle  ;; turtle procedure
  rt random-float 360
  lt random-float 360
  ifelse not can-move? 1
    [ hide-turtle ]
    [ show-turtle ]
  set dist xcor * xcor + ycor * ycor
end

to-report nest-scent-at-angle [angle]
  ;let p patch-right-and-ahead angle 1
  ;if p = nobody [ report 0 ]
  ;report [nest-scent] of p
end

to-report chemical-scent-at-angle [angle]
  ;let p patch-right-and-ahead angle 1
  ;if p = nobody [ report 0 ]
  ;report [chemical] of p
end

to-report replace-all [target replacement str] ;; screeshot button setup
  let acc str
  while [position target acc != false] [
    set acc (replace-item (position target acc) acc replacement)
  ]
  report acc
end


; Copyright 1997 Uri Wilensky.
; See Info tab for full copyright and license.
