ABM Lassa Virus Transmission
Model was written in NetLogo 6.3.0
•
Viewed 316 times
•
Downloaded 10 times
•
Run 0 times
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Info tab cannot be displayed because of an encoding error
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
; ABM - LASSA FEVER TRANSMISSION ; STUDENT NAME: VICTOR ODOH ; ID: C2397722 ; SCEDT, TEESSIDE UNIVERSITY ; Year: 2022 ; Two agentsets are involved in this Model (Humans and rats) ; Hence defining two breeds as follows breed [humans human] breed [rats rat] ; COLOUR CODES: ; Red rat (red - 2) - Multimammate Rat (All Assumed to be infectious) ; White Human - Healthy, not infected/infectious ; Yellow Human - Infected but not infectious (within virus incubation period) ; Orange Human (orange + 2) - Infectious with Mild Symptoms ; Red Human - Infectious with Severe Symptoms ; Cyan Human - Recovered, immune but still Infectious ; Lime Human (lime + 1) - Fully recovered and immune ; Gray Human - Dead ; Declaring humans owned variables humans-own [ hours ; each tick represents an hour human_speed ; to control human speed ] ; Declaring all global variables used... ; (excluding the sliders which do not need to be declared here) globals [ control_speed ; to regulate speed of model infected_not_infectious ; current count of infected humans within virus incubation period initial_mild_cases initial_severe_cases mild_cases_count ; current count of all mild cases severe_cases_count ; current count of all severe cases severe_cases ; counting variable for infected humans with severe symptoms mild_cases ; counting variable for infected humans with mild symptoms or asymptomatic total_mild_cases ; includes intial mild cases total_severe_cases ; includes initial severe cases fatalities ; counting variable for human deaths total_fatalities ; count of all deaths ever recorded immune_infectious ; current count of recovered and immune humans that are still carriers immune_not_infectious ; current count of immune humans who are no longer carriers %Mild_Cases %infected %uninfected %immune average_%CFR ; average case fatality rate in percentage immune_or_severe_%infectiousness ; virus spread chance of immune/recovered carriers ; or humans with severe symptoms assuming that they are hospitalized/isolated and pose little ; risk of infecting others current_cases ; number of cases at the curent time total_cases ; Count of all cases ever recorded : addition of counting variables (mild_cases + severe_cases) total_immune ; includes both immune carriers and immune with no virus total_infected ; all carrier humans total_infectious ; all carrier humans excluding infected_not_infectious ] ; Defining the "setup" command procedure: ; Assigning initial values to setup clear-all reset-ticks set %Mild_Cases (100 - %Severe_Cases) set initial_mild_cases (Initial_Number_Of_Cases * %Mild_Cases) / 100 set initial_severe_cases (Initial_Number_Of_Cases * %Severe_Cases) / 100 set immune_or_severe_%infectiousness %Infectiousness_Human_to_Human * (1 - Human_Behaviour_Factor) ; Declaring basic constant of the model set control_speed 1 ; creating the rat agents with their properties ; Distributing them randomly across the patches/world create-rats Multimammate_Rat_Population [ setxy random-xcor random-ycor set shape "mouse side" set color red - 2 set size 0.8 ] ; creating the human agents with initially infected humans ; Distributing them randomly across the patches/world create-humans Human_Population [ setxy random-xcor random-ycor set shape "person" set color white set size 1 set human_speed control_speed ] ; color coding to identify initial mild/severe cases ask n-of initial_mild_cases Humans [set color orange + 2] ask n-of initial_severe_cases Humans [ set color red ] end ; end of setup command procedure ; Defining the "go" command procedure: to go ; asking rats to move randomly across the world ask rats [ fd control_speed * -1 * ((1 / Human_Behaviour_Factor) * 0.01) rt random 100 lt random 100 ] ; asking humans to move randomly across the world ask humans [ fd human_speed * ((1 / Human_Behaviour_Factor) * 0.01) rt random 45 lt random 45 set hours hours + 1 ; advancing hours counting variables ] ; asking humans that are infectious and applying human to human infection probability.. ; ..to a nearby uninfected human, for possible infection ; color coding to identify each case ask humans [ ifelse (color = orange + 2) [ ask other humans-here [ if random 100 < %Infectiousness_Human_to_Human [ if color = white [ set color yellow set infected_not_infectious infected_not_infectious + 1 set hours 0 ] ] ] ] ; asking rats and applying rat to human infection probability ; to nearby uninfected human in contact, for possible infection [ ask rats [ ask other humans-here [ if random-float 100 < %Infectiousness_rat_to_Human [ if color = white [ set color yellow set hours 0 ] ] ] ] ] ; If hospitalized or immune carrier, applying infection probability for possible infection... ; ... of other uninfected humans nearby if (color = cyan) or (color = red) [ ask other humans-here [ if random-float 100 < immune_or_severe_%infectiousness [ if (color = white) [ set color yellow set hours 0 ] ] ] ] ; converting incubation period in days to hours ; what should happen if infection has exceded incubation period? ; applying %Severe_Cases probabilty to determine if an infected human... ; ... falls under the mild or severe case if (color = yellow) and (hours > (incubation_Period * 24)) [ ifelse random-float 100 < %Severe_Cases [ set color red set severe_cases severe_cases + 1 ; advancing severe_cases counting variable set hours 0 set human_speed 0 ; if severe, assumes human is hospitalized and stops moving ] [ set color orange + 2 set mild_cases mild_cases + 1 ; advancing mild_cases counting variable set hours 0 set human_speed 0.5 ; value assigned to variable to make speed a bit slower than that of other agents ] ] ; converting "days before recovery or death" in days to hours ; what should happen if infection has lingered for this period? ; applying case fatality probabilty of both type of cases to determine... ; ... if an infected human dies or survives ; "orange + 2" for mild case, red for severe case if (color = orange + 2) and (hours = (Sick_Days * 24)) [ ifelse random-float 100 < CFR_Mild_Case [ set color gray set fatalities fatalities + 1 ; advancing fatalities counting variable set hours 0 set human_speed 0 ; if dead, human stops moving ] [ set color cyan ; if they survived, they become immune but still carriers (cyan from color coding) set hours 0 set human_speed 0.5 ] ] if (color = red) and (hours = (Sick_Days * 24)) [ ifelse random-float 100 < CFR_Severe_Case [ set color gray set fatalities fatalities + 1 set hours 0 set human_speed 0 ] [ set color cyan set hours 0 set human_speed control_speed ] ] ; what should happen if immune carriers have exceeded the Infectious days after recovery? ; mark them as immune and no longer infectious (Lime) if (color = cyan) and (hours = (Infectious_Days_After_Recovery * 24)) [ set color lime + 1 ; lime human is immune and no longer infectious set hours 0 set human_speed control_speed ] ] ; Updating global variables for plotting purposes and for output display on monitor set infected_not_infectious count humans with [color = yellow] set mild_cases_count count humans with [color = orange + 2] set severe_cases_count count humans with [color = red] set immune_infectious count humans with [color = cyan] set immune_not_infectious count humans with [color = lime + 1] set total_immune (immune_infectious + immune_not_infectious) set current_cases (mild_cases_count + severe_cases_count) set total_mild_cases (mild_cases + initial_mild_cases) set total_severe_cases (severe_cases + initial_severe_cases) set total_cases (total_mild_cases + total_severe_cases) set total_infectious (current_cases + immune_infectious) set total_infected (infected_not_infectious + total_infectious + total_fatalities) set total_fatalities count humans with [color = gray] set average_%CFR (fatalities / total_cases) * 100 set %infected (total_infected / Human_Population) * 100 set %uninfected ((count humans with [color = white]) / Human_Population) * 100 set %immune (total_immune / Human_Population) * 100 if infected_not_infectious + current_cases + count humans with [color = white] = 0 [stop] ; condition (if true) to halt simulation tick ; advancing the tick counter by 1 end
There is only one version of this model, created almost 2 years ago by Victor Odoh.
Attached files
File | Type | Description | Last updated | |
---|---|---|---|---|

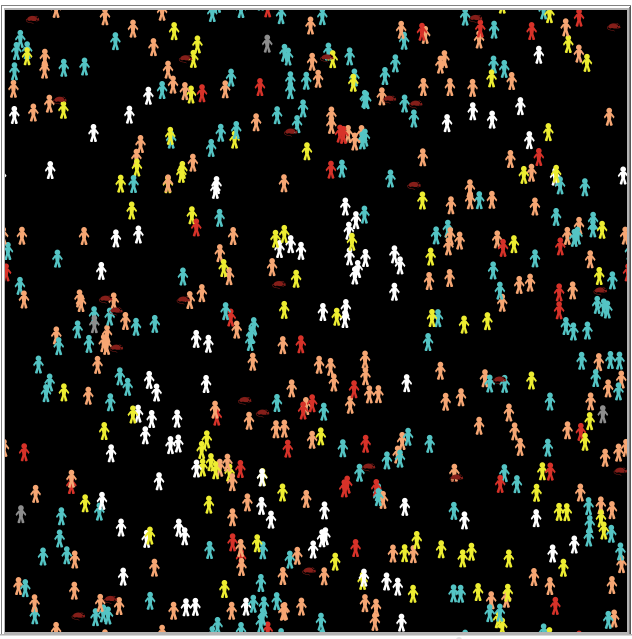

ABM Lassa Virus Transmission.png | preview | Preview for 'ABM Lassa Virus Transmission' | almost 2 years ago, by Victor Odoh | Download |
This model does not have any ancestors.
This model does not have any descendants.
