Chernobyl Reactor

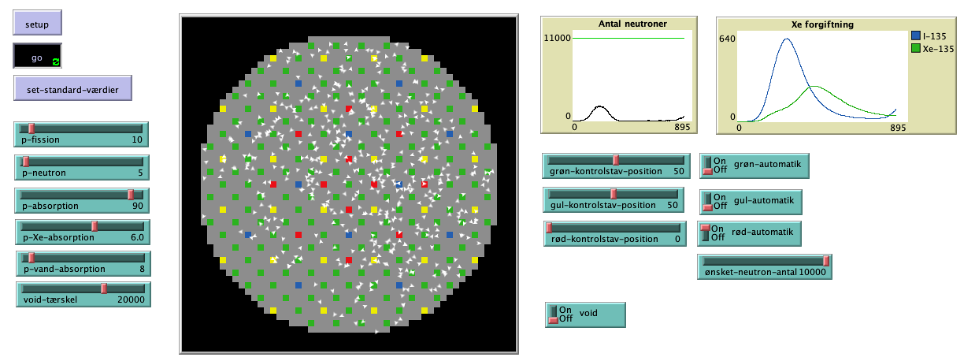

Chernobyl Reactor preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.1.0 • Viewed 108 times • Downloaded 5 times • Run 0 times
Download the 'Chernobyl Reactor' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

patches-own [I-135 Xe-135]

globals [integral prev-err dt]

to setup
  clear-all

 ask patches [
    if distancexy 0 0 < 24 [ set pcolor gray ]
    if distancexy 0 0 < 16 [
      if pxcor mod 8 = 4 and pycor = 0 and pcolor = gray [ set pcolor red ]
      if pxcor = 0 and pycor mod 8 = 4 and pcolor = gray [ set pcolor red ]
      if pxcor mod 16 = 8 and pycor mod 16 = 8 and pcolor = gray [ set pcolor red ]
    ]
    if pxcor mod 16 = 8 and pycor mod 16 = 0 and pcolor = gray [ set pcolor blue ]
    if pxcor mod 16 = 0 and pycor mod 16 = 8 and pcolor = gray [ set pcolor blue ]
    if pxcor mod 8 = 4 and pycor mod 8 = 4 and pcolor = gray [ set pcolor yellow ]
    if pxcor mod 4 = 0 and pycor mod 4 = 0 and pcolor = gray [ set pcolor green ]
    if pxcor mod 4 = 2 and pycor mod 4 = 2 and pcolor = gray [ set pcolor green ]


    set I-135 0
    set Xe-135 0
  ]

  set prev-err 0
  set dt 1 ;h

  reset-ticks
end

to set-standard-værdier
  set p-fission 10
  set p-neutron 5
  set p-absorption 90
  set p-Xe-absorption 6
  set p-vand-absorption 8

  set grøn-kontrolstav-position 50
  set gul-kontrolstav-position 50
  set rød-kontrolstav-position 50
  set grøn-automatik false
  set gul-automatik false
  set rød-automatik true

  set void false
  set void-tærskel 20000
end

to go

  ; automatik
  if ønsket-neutron-antal = 0 [ set ønsket-neutron-antal 1 ]

  let err count turtles - ønsket-neutron-antal
  set integral integral + err
  let differential err - prev-err
  set prev-err err

  if rød-automatik = true [
    set rød-kontrolstav-position round( 50 / ønsket-neutron-antal * err + 0.00005 * integral + 0.05 * differential) + 50
    if rød-kontrolstav-position < 0 [ set rød-kontrolstav-position 0 ]
    if rød-kontrolstav-position > 100 [ set rød-kontrolstav-position 100 ]
  ]
  if gul-automatik = true [
    set gul-kontrolstav-position round( 50 / ønsket-neutron-antal * err + 0.00005 * integral + 0.05 * differential) + 50
    if gul-kontrolstav-position < 0 [ set gul-kontrolstav-position 0 ]
    if gul-kontrolstav-position > 100 [ set gul-kontrolstav-position 100 ]
  ]
  if grøn-automatik = true [
    set grøn-kontrolstav-position round( 50 / ønsket-neutron-antal * err + 0.00005 * integral + 0.05 * differential) + 50
    if grøn-kontrolstav-position < 0 [ set grøn-kontrolstav-position 0 ]
    if grøn-kontrolstav-position > 100 [ set grøn-kontrolstav-position 100 ]
  ]

  ; neutronkilde
  ask patches with [pcolor = blue] [
    if random 100 < p-neutron [
        sprout 1 [
          set color white
          set heading random 360
        ]
      ]
  ]

  ; Xe-135 henfald i brænselsstave
  ask patches with [pcolor = gray] [
    set Xe-135 Xe-135 * (1 - 0.0076 * dt)
  ]

  ; I-135 henfald i brænselsstave
  ask patches with [pcolor = gray] [
    let d-I-135 I-135 * 0.0105 * dt
    set I-135 I-135 - d-I-135
    set Xe-135 Xe-135 + d-I-135
  ]


  ; brændselsstav
  let n-Xe sum [Xe-135] of patches

  ask patches with [pcolor = gray] [
    ask turtles-here [

      ; fission
      if random 100 < p-fission [

        ; skab nye neutroner
        hatch 2 [ ;Antal???
          set color white
          set heading random 360
        ]

        ; Skab I-135 (6% af fisionsprodukterne biver til I-135)
        set I-135 I-135 + .06
      ]

      ; Absorption pga. Xe-135 (Xe-forgiftning)
      if random 10000 < n-Xe * p-Xe-absorption [
        set Xe-135 Xe-135 - 1 ; Burn-off
        if Xe-135 < 0 [ set Xe-135 0 ]
        die
      ]

      ; Absorption pga. kølevand / void (når der er mange neutroner fordamper kølevandet)
      if (void = false or count turtles < void-tærskel) and random 100 < p-vand-absorption [
        die
      ]
    ]
  ]

  ;kontrolstave
  ask patches with [pcolor = green] [
    ask turtles-here [
      if random 100 < p-absorption * grøn-kontrolstav-position / 100 [
        die
      ]
    ]
  ]
  ask patches with [pcolor = yellow] [
    ask turtles-here [
      if random 100 < p-absorption * gul-kontrolstav-position / 100 [
        die
      ]
    ]
  ]
  ask patches with [pcolor = red] [
    ask turtles-here [
      if random 100 < p-absorption * rød-kontrolstav-position / 100 [
        die
      ]
    ]
  ]


  ask turtles [
    if not can-move? 1 [die]
    fd 1
  ]
  ask patches with [pcolor = black] [
    ask turtles-here [ die ]
  ]

  tick
end
