Squareville: Wastewater Surveillance for COVID-19

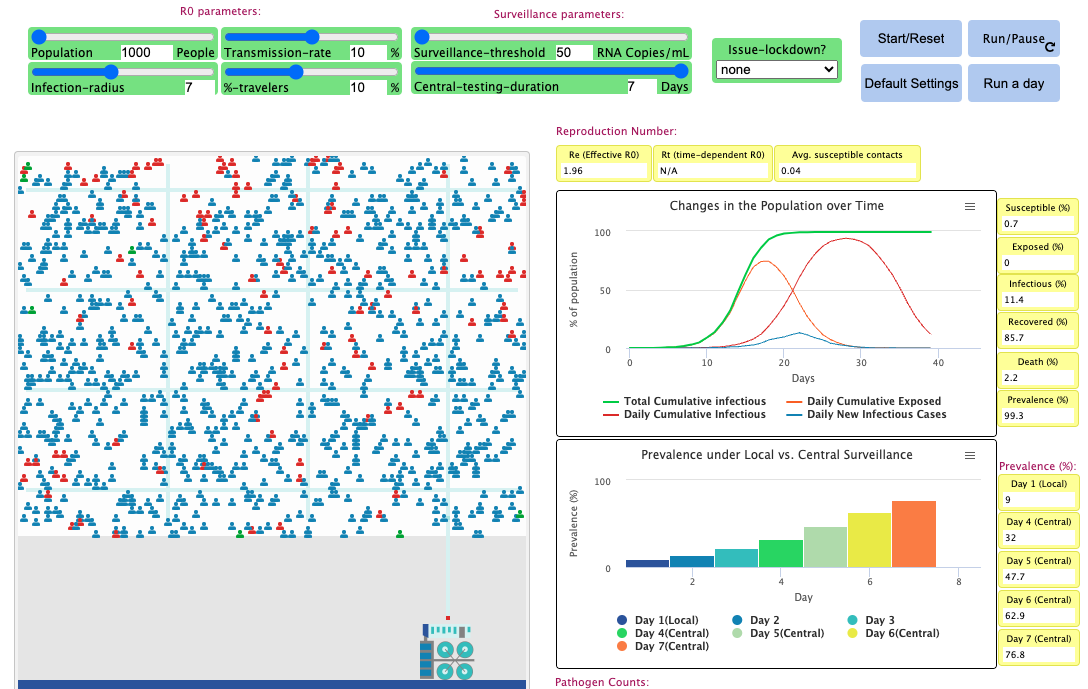

Squareville: Wastewater Surveillance for COVID-19 preview image

1 collaborator

Screen_shot_2018-02-02_at_12.53.50_pm lin xiang (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.3.0 • Viewed 18 times • Downloaded 2 times • Run 0 times
Download the 'Squareville: Wastewater Surveillance for COVID-19' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [persons person]
breed [viruses virus]
breed [plants plant]


persons-own [
  home-x
  home-y
  incubation-period          ;each person is assigned an incubation period at the beginning. This variable is used to determine how soon the people change from exposed to infectious state.
  incubation-period-value    ;this variable stores the original incubation period and is used to check the average incubation period.
  infectious-period          ;This variable is used to track people's disease periods
  contacts                   ;number of susceptible contacts in defined infection radius
  infected-by-me             ;total number of people I infect (numerical results)
  infect-any?                ;whether I have infected any one (true/false)
]

viruses-own [
  viability-period   ;viral viability in treatment plant
  in-plant?          ;check if the virus has been in the plant  (true/false)
]

Patches-own [
  p-type      ;define patch type  0 = town/community, 1 = pipe, 2 = plant, 3 = wild area, 4 = creek, 5 = testing location
]

Globals [
  main-pipe-xcor        ;the most right vertical pipe
  main-pipe-ycor        ;the lowest horizental pipe
  max-daily-cases
  infection-number      ;total of people are infected
  infector-number       ;total of people who infected at least one other person
  virus-yield           ;record the number of viruses that are produced
  start-record?         ;trigger data recording
  prevalence-list       ;This list stores the cumulative infected (include both E and I states) once local survaillence is triggered.
  RNA-copies            ;Coronvirous RNA copies
  individual-RNA-contribution    ;Copies of RNA increase by each person
  R0-list               ;create a list of ongoing R0
  death-toll

]

to-report R0
  if any? persons with [infect-any? = true]
    [report infection-number / infector-number]   ;This is the effective R0. A cross check is the total infected (E and I and R) dvided by total people with [infect-any? = true]
end

to-report c
  report mean [contacts] of persons with [color = 26]   ;only E people may infect others so only count the susceptibles of E
end

to-report infectious-period-of-exposed
 report mean [incubation-period-value] of persons with [color = 26]   ;avergage incubation periods of exposed people .
end

to-report R-t
  report (0.01 * transmission-rate) * c *  infectious-period-of-exposed   ;only E may infect others so use incubation period rather than disease period to calculate Rt
end

to-report sewer-patches
  report patches with [p-type = 1]
end

to-report susceptible-people
  report persons with [color = 55]
end

to-report exposed-people
  report persons with [color = 26]
end

to-report infectious-people           ;these are symptomatic people. they are quarantined or isolated so they cannot infect others.
  report persons with [color = red]
end

to-report recovered-people
  report persons with [color = sky]
end

to-report local-surveillance-infection     ;report the first prevalence in the prevalence list
  if ticks > 0 and not empty? prevalence-list
   [report item 0 prevalence-list]
end

to-report central-surveillance-infection     ;report the last prevalence in the prevalence list
  if ticks > 0 and length prevalence-list = Central-testing-duration
   [report item (central-testing-duration - 1) prevalence-list]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;
;   Setup procedures
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape viruses "c-virus-0"
  set-default-shape persons "person-0"

  set-patches
  setup-people
  add-an-carrier
  find-contacts

  set start-record? false
  set prevalence-list []
  set R0-list []
  set death-toll 0

  reset-ticks
end

to set-patches
  ask patches [set pcolor white set p-type 0 ]  ;set background

  ask patches with [pycor <= 40] [set pcolor 9 set p-type 3] ;set wild field

  ask patches with [pycor <= min-pxcor + 4] [set pcolor 105 set p-type 4]  ;set a creek

  ;set horizontal pipe
  ask patches
   [if remainder (pycor - 2) 25 = 0 and pycor > 40 and pycor <= max-pycor and pxcor >= 2 and pxcor <= max-pxcor - 2
   [set pcolor 89 set p-type 1]]

  ;set vertical pipes
  ask patches
  [if remainder (pxcor - 2) 35 = 0 and pxcor >= 10 and pxcor <= max-pxcor and pycor <= max-pycor - 2 and pycor >= 45
   [set pcolor 89 set p-type 1]]

  ;connect to plant
  if any? patches with [p-type = 1]
  [let y min [pycor] of patches with [p-type = 1]
   let lowest-patch patches with [p-type = 1 and pycor = y]
   ;let connecting-patch lowest-patch with-max [pxcor]
   let x max [pxcor] of lowest-patch

   ask patches with [pxcor = x and pycor = y] [set pcolor 88]   ;label the correct connecting point

   ask patches with [pxcor = x and pycor < y and pycor >= min-pycor + 20 ] [set pcolor 89 set p-type 1]   ;extend the pipline


   ;set the plant
   create-plants 1
   [set shape "w-plant"
    set size 14
    set color 89
    setxy x 11.5]

   set main-pipe-xcor x    ;record the main-pipe xcor
   set main-pipe-ycor y    ;record the lowest pipe's ycor

    ask patches with [pxcor = main-pipe-xcor and pycor = 20] [set pcolor red]

  ]
end

to setup-people
  ask n-of population patches with [p-type = 0]
  [sprout-persons 1
    [set size 2.75
     set color 55
     set shape "person-0"
     set home-x xcor
     set home-y ycor
     set incubation-period precision (random-normal 6 2) 0  ;set an incubation period based on normal distribution a mean of 6 and a SD of 2
     set incubation-period-value incubation-period   ;set an incubation period value for tracking the change in incubation period
     set infectious-period 0
     set infected-by-me 0
     set infect-any? false
     ]
  ]

  ;set individual RNA shed contribution based on population size. Equation from Data from Marc Johnson in MO 9The 10^9 copies of RNA per infected person gets diluted into the bulk wastewater.)
  set individual-RNA-contribution (1000 / (1.1355 * population - 900))  ;900 is used to adjust the function for running a smaller population
end

to add-an-carrier
  ask one-of persons
  [set color 26 ]
end



;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;
;   Go procedures
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to go

  if ticks > 0 and (not any? exposed-people and not any? infectious-people) [stop]

  set RNA-copies 0       ;reset the number of RNA-copies at the testing site each tick
  move-viruses    ;put move-virus before produce-viruses make the newly produced viruses arrive the plant the next day or later.
  move-people

 (ifelse
    Issue-lockdown? = "none"    ;This is for comparing local and certral surveillance
      [SEIR]

   Issue-lockdown? = "local"    ;This is for gathering LOCAL alert prevalence
    [if length prevalence-list = 1
      [set Transmission-rate 1
        set %-travelers 5]

        SEIR]

    Issue-lockdown? = "central"    ;This is for gathering CENTRAL alert prevalence
    [if length prevalence-list = Central-testing-duration
      [set Transmission-rate 1
        set %-travelers 5]

       SEIR])

  find-contacts
  find-max-daily-cases
  calculate-average-R0

  surveillance
  disinfected
  back-home

  plot-infection-over-R0

 tick
end

to SEIR
  incubation    ;E->I     ;put incubation before infect to update incubation period in the next day
  infect        ;S->E
  produce-viruses
  recover       ;I->E
end

to move-people
 ask up-to-n-of ((count persons with [color != red]) * %-travelers * 0.01) persons with [color != red]   ;let up to 10% of the people who are not symptomatics to randomly move
  [setxy random-xcor (41 + random (max-pycor - 41))]
end

to move-viruses              ;viruses arrive plant in a day
  ask viruses with [xcor = main-pipe-xcor and ycor = 20]   ;move the virues at the testing site down one patch to empty the testing site
    [setxy main-pipe-xcor 19]

  ask viruses with [xcor != main-pipe-xcor or ycor > 20]   ;move the newly produced viruses to the testing site
    [setxy main-pipe-xcor 20 set in-plant? true]
end

to produce-viruses

    ask exposed-people                ;ask exposed-infected people
    [let sewer min-one-of sewer-patches [distance myself]  ;find the closest sewer
     if random 100 < 43
     [ hatch-viruses 1                               ;produce a new virus at a chance of 43%
       [set size 0.75                                 ;set the size of a virus
        set color 35
        setxy [pxcor] of sewer  [pycor] of sewer
        set viability-period 1
        set virus-yield virus-yield + 1
        set in-plant? false
       ]
     ]]
end

to infect    ; S->E

  ask exposed-people; with [contacts > 0]
      [if any? susceptible-people in-radius infection-radius           ;if any susceptible people nearby
       [repeat count susceptible-people in-radius infection-radius     ;repeat the times of susceptible contacts to contact all these contacts
          [if random 1000 < (Transmission-Rate  * 10)                      ;at the chance of transmission rate
             [let infected-person one-of susceptible-people in-radius infection-radius      ;pick one of the susceptible people in the infection radius
              ask infected-person                               ;infect him/her
                 [set color 26]                                 ;change color. No need to set the infection-period as it is updated in recover procedure

              set infected-by-me infected-by-me + 1             ;update how many people I have infected
              if infect-any? = false                            ;if it is new infector
                [set infect-any? true                           ;update infection record
                 set infector-number infector-number + 1]       ;update total number of of infectors


              set infection-number infection-number + 1]]]]     ;update total number of infection
end

to incubation     ;E->I

  ask exposed-people
     [ifelse incubation-period > 0
        [set incubation-period (incubation-period - 1)]
        [set color red]]
end

to recover   ;I->R
  ask infectious-people
  [ifelse infectious-period >= 14    ; set disease period as 2 weeks. This period does not affect R0 as it is assumed that infected people are well isolated and do not transmit the disease.
    [ifelse random 100 < 3           ; mortality equals 3%
      [set death-toll death-toll + 1 die]
      [set color sky set infectious-period 0]]
    [set infectious-period infectious-period + 1]
  ]
end



;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;
;   supporting procedures
;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to find-max-daily-cases
  if count infectious-people > max-daily-cases        ;Count the infectious.If it is greater than the current record of max daily cases
  [set max-daily-cases count infectious-people]       ;update the max daily case
end

to disinfected

  ask viruses with [xcor = main-pipe-xcor and ycor = 19]    ; ask viruses in the treatment plant to die after 1 days ro save compute power.
    [ifelse viability-period > 0
      [set viability-period viability-period - 1]
      [die]]
end

to find-contacts
  ask persons
  [set contacts count other persons with [color = 55] in-radius infection-radius]
end

to surveillance
  if (count viruses-on patch main-pipe-xcor 20) * individual-RNA-contribution  >= Surveillance-threshold
    [set start-record? true]

 if start-record? = true
    [if length prevalence-list < Central-testing-duration
        [ set prevalence-list lput (precision (infection-number * 100 / Population) 2) prevalence-list]]
end

to plot-infection-over-R0   ;;; this creates creates the scotter plot graph

    set-current-plot "Prevalence under Local vs. Central Surveillance"
    clear-plot
    plot-pen-down
  set-current-plot-pen "Day 1(Local)"
    if any? persons with [infect-any? = true] and length prevalence-list >= 1 [plotxy 1 item 0 prevalence-list]
  set-current-plot-pen "Day 2"
    if any? persons with [infect-any? = true] and length prevalence-list >= 2 [plotxy 2 item 1 prevalence-list]
  set-current-plot-pen "Day 3"
    if any? persons with [infect-any? = true] and length prevalence-list >= 3 [plotxy 3 item 2 prevalence-list]
  set-current-plot-pen "Day 4(Central)"
    if any? persons with [infect-any? = true] and length prevalence-list >= 4 [plotxy 4 item 3 prevalence-list]
  set-current-plot-pen "Day 5(Central)"
    if any? persons with [infect-any? = true] and length prevalence-list >= 5 [plotxy 5 item 4 prevalence-list]
  set-current-plot-pen "Day 6(Central)"
    if any? persons with [infect-any? = true] and length prevalence-list >= 6 [plotxy 6 item 5 prevalence-list]
  set-current-plot-pen "Day 7(Central)"
    if any? persons with [infect-any? = true] and length prevalence-list >= 7 [plotxy 7 item 6 prevalence-list]
end

to calculate-average-R0
 if any? exposed-people with [infect-any? = true ] [set R0-list lput (precision R0 2) R0-list]
end

to back-home
  ask persons with [xcor != home-x or ycor != home-y]
  [setxy home-x home-y]
End

There are 2 versions of this model.

Uploaded by When Description Download
lin xiang 4 months ago Adjust the patch setting Download this version
lin xiang 4 months ago Initial upload Download this version

Attached files

File Type Description Last updated
Squareville: Wastewater Surveillance for COVID-19.png preview Preview for 'Squareville: Wastewater Surveillance for COVID-19' 4 months ago, by lin xiang Download

This model does not have any ancestors.

This model does not have any descendants.
