Updated Estimating Stream Diversity

breed [seine seines]
breed [critter critters]
globals [time StTime catchem s1 s2 s3 s4 s5 s6 s7 s8 s9 s10 s11 s12 s13 s14 s15 s16 sTot]

to startup
  setup
end

to setup
  ;; (for this model to work with NetLogo's new plotting features,
  ;; __clear-all-and-reset-ticks should be replaced with clear-all at
  ;; the beginning of your setup procedure and reset-ticks at the end
  ;; of the procedure.)
  clear-all
  reset-ticks
  setup-patches
  ;import-pcolors "streampic4.jpg"
  set catchem 0
end

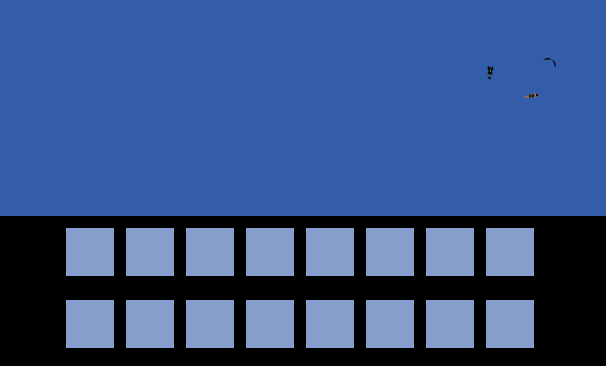

to setup-patches
  ask patches
  [
    set pcolor blue
    if pycor < 25 [set pcolor black]
    if pycor < 23 and pycor > 2 [set pcolor blue + 2]
    if pycor < 23 and pxcor < 11 [set pcolor black]
    if pycor < 23 and pxcor > 88 [set pcolor black]
    if pycor < 23 and (pxcor = 9 or pxcor = 10) [set pcolor black]
    if pycor < 23 and (pxcor = 19 or pxcor = 20) [set pcolor black]
    if pycor < 23 and (pxcor = 29 or pxcor = 30) [set pcolor black]
    if pycor < 23 and (pxcor = 39 or pxcor = 40) [set pcolor black]
    if pycor < 23 and (pxcor = 49 or pxcor = 50) [set pcolor black]
    if pycor < 23 and (pxcor = 59 or pxcor = 60) [set pcolor black]
    if pycor < 23 and (pxcor = 69 or pxcor = 70) [set pcolor black]
    if pycor < 23 and (pxcor = 79 or pxcor = 80) [set pcolor black]
    if pycor < 23 and (pxcor = 89 or pxcor = 90) [set pcolor black]
    if pycor <= 14 and pycor >= 11 [set pcolor black]
  ]
end

to go
  init-critters
  move-critters
  update
  if catchem = 1 [do-plots]
  if sttime = 1 [set time time + .1]
  if time > sampling-time [close]
  tick
end

to init-critters
  let x random 100
  if random 100 < 5
  [
    create-critter 1
    [
    set size 3
    set xcor 100 set ycor 45 + random 10 - random 10
    if Pollution = "None"
    [
      if x <= 10  [set shape "caddisfly"]
      if x > 10 and x <= 15 [set shape "mayfly"]
      if x > 15 and x <= 25 [set shape "stonefly"]
      if x > 25 and x <= 30 [set shape "rifflebeetle"]
      if x > 30 and x <= 35 [set shape "waterpenny"]
      if x > 35 and x <= 40 [set shape "gilledsnail"]
      if x > 40 and x <= 45 [set shape "dobsonfly"]
      if x > 45 and x <= 50 [set shape "cranefly"]
      if x > 50 and x <= 55 [set shape "dragonfly"]
      if x > 55 and x <= 60 [set shape "crawdad"]
      if x > 60 and x <= 65 [set shape "sowbug"]
      if x > 65 and x <= 70 [set shape "worm"]
      if x > 70 and x <= 75 [set shape "blackfly"]
      if x > 75 and x <= 80 [set shape "midge"]
      if x > 80 and x <= 85 [set shape "leech"]
      if x > 85  [set shape "lungedsnail"]
    ]
    if Pollution = "Moderate"
    [
      if x <= 0  [set shape "caddisfly"]
      if x > 0 and x <= 2 [set shape "mayfly"]
      if x > 2 and x <= 4 [set shape "stonefly"]
      if x > 4 and x <= 6 [set shape "rifflebeetle"]
      if x > 6 and x <= 8 [set shape "waterpenny"]
      if x > 8 and x <= 10 [set shape "gilledsnail"]
      if x > 10 and x <= 15 [set shape "dobsonfly"]
      if x > 15 and x <= 22 [set shape "cranefly"]
      if x > 22 and x <= 32 [set shape "dragonfly"]
      if x > 32 and x <= 50 [set shape "crawdad"]
      if x > 50 and x <= 60 [set shape "sowbug"]
      if x > 60 and x <= 70 [set shape "worm"]
      if x > 70 and x <= 75 [set shape "blackfly"]
      if x > 75 and x <= 80 [set shape "midge"]
      if x > 80 and x <= 85 [set shape "leech"]
      if x > 85  [set shape "lungedsnail"]
    ]
    if Pollution = "Severe"
    [
      if x <= 0  [set shape "caddisfly"]
      if x > 0 and x <= 0 [set shape "mayfly"]
      if x > 0 and x <= 0 [set shape "stonefly"]
      if x > 0 and x <= 0 [set shape "rifflebeetle"]
      if x > 0 and x <= 0 [set shape "waterpenny"]
      if x > 0 and x <= 0 [set shape "gilledsnail"]
      if x > 0 and x <= 3 [set shape "dobsonfly"]
      if x > 3 and x <= 6 [set shape "cranefly"]
      if x > 6 and x <= 9 [set shape "dragonfly"]
      if x > 9 and x <= 13 [set shape "crawdad"]
      if x > 13 and x <= 20 [set shape "sowbug"]
      if x > 20 and x <= 60 [set shape "worm"]
      if x > 60 and x <= 75 [set shape "blackfly"]
      if x > 75 and x <= 80 [set shape "midge"]
      if x > 80 and x <= 85 [set shape "leech"]
      if x > 85  [set shape "lungedsnail"]
    ]
    ]
   ]
end

to move-critters
  ask critter
  [

    ifelse [pcolor = black] of patch-ahead 1
    [
      set heading heading + 260 - random 20
      fd .2
      if ycor > 24 [set xcor xcor - .5]
    ]
    [
      set heading heading + random 20 - random 20
      fd .2
      if ycor > 24 [set xcor xcor - .5]
    ]
    if xcor < 1 [die]
    if catchem = 1 and xcor < 50 and xcor > 48 and ycor < 48 and ycor > 34
    [
      if shape = "caddisfly" [setxy 15 19]
      if shape = "mayfly" [setxy 25 19]
      if shape = "stonefly" [setxy 35 19]
      if shape = "rifflebeetle" [setxy 45 19]
      if shape = "waterpenny" [setxy 55 19]
      if shape = "gilledsnail" [setxy 65 19]
      if shape = "dobsonfly" [setxy 75 19]
      if shape = "cranefly" [setxy 85 19]
      if shape = "dragonfly" [setxy 15 9]
      if shape = "crawdad" [setxy 25 9]
      if shape = "sowbug" [setxy 35 9]
      if shape = "worm" [setxy 45 9]
      if shape = "blackfly" [setxy 55 9]
      if shape = "midge" [setxy 65 9]
      if shape = "leech" [setxy 75 9]
      if shape = "lungedsnail" [setxy 85 9]
    ]
  ]
end

to update
   ifelse count critter with [shape = "caddisfly" and ycor < 24] > 0 [set s1 1] [set s1 0]
   ifelse count critter with [shape = "mayfly" and ycor < 24] > 0 [set s2 1] [set s2 0]
   ifelse count critter with [shape = "stonefly" and ycor < 24] > 0 [set s3 1] [set s3 0]
   ifelse count critter with [shape = "rifflebeetle" and ycor < 24] > 0 [set s4 1] [set s4 0]
   ifelse count critter with [shape = "waterpenny" and ycor < 24] > 0 [set s5 1] [set s5 0]
   ifelse count critter with [shape = "gilledsnail" and ycor < 24] > 0 [set s6 1] [set s6 0]
   ifelse count critter with [shape = "dobsonfly" and ycor < 24] > 0 [set s7 1] [set s7 0]
   ifelse count critter with [shape = "cranefly" and ycor < 24] > 0 [set s8 1] [set s8 0]
   ifelse count critter with [shape = "dragonfly" and ycor < 24] > 0 [set s9 1] [set s9 0]
   ifelse count critter with [shape = "crawdad" and ycor < 24] > 0 [set s10 1] [set s10 0]
   ifelse count critter with [shape = "sowbug" and ycor < 24] > 0 [set s11 1] [set s11 0]
   ifelse count critter with [shape = "worm" and ycor < 24] > 0 [set s12 1] [set s12 0]
   ifelse count critter with [shape = "blackfly" and ycor < 24] > 0 [set s13 1] [set s13 0]
   ifelse count critter with [shape = "midge" and ycor < 24] > 0 [set s14 1] [set s14 0]
   ifelse count critter with [shape = "leech" and ycor < 24] > 0 [set s15 1] [set s15 0]
   ifelse count critter with [shape = "lungedsnail" and ycor < 24] > 0 [set s16 1] [set s16 0]
   set sTot s1 + S2 + s3 + s4 + s4 + s5 + s6 + s7 + s8 + s9 + s10 + s11 + s12 + s13 + s14 + s15 + s16
end

to open
  ask seine [die]
  create-seine 1
  [
    set shape "seine"
    set size 15
    set xcor 50 set ycor 40
  ]
  set catchem 1
  set sttime 1
end

to Close
  ask Seine [die]
  set catchem 0
  set sttime 0
end

to release
  plot-pen-up
  ask critter
  [ if ycor < 24 [setxy 40 45]]
  set time 0
  set stot 0
  do-plots
  plot-pen-down
end

to do-plots
  set-current-plot "Cumulative Species"
  set-current-plot-pen "Total"
  plotxy time sTot
end
