Shape Library Viewer

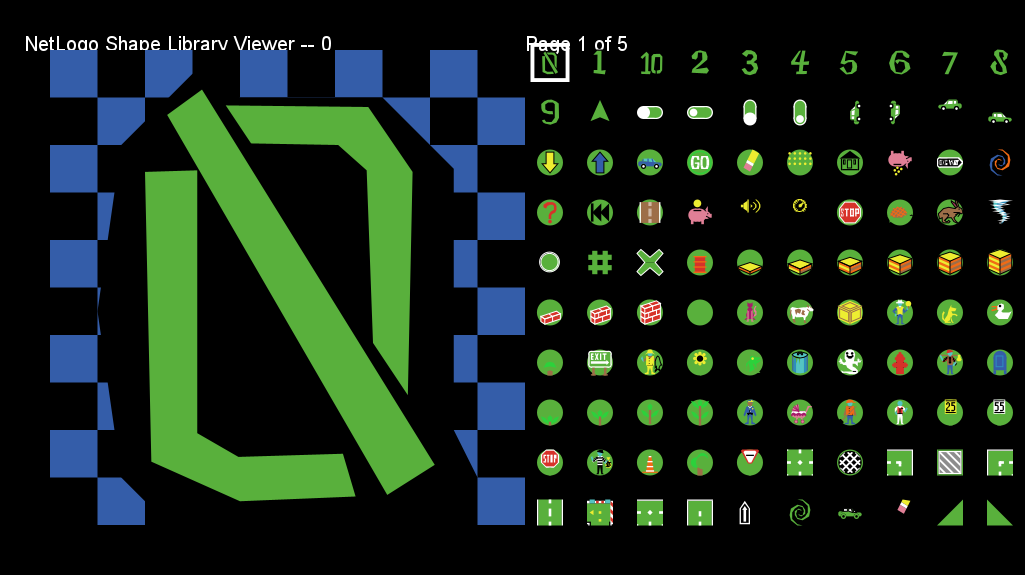

Shape Library Viewer preview image

1 collaborator

Turtlezero2-white-048 James Steiner (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.4.0 • Viewed 167 times • Downloaded 18 times • Run 0 times
Download the 'Shape Library Viewer' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

GLOBALS
[ SAMPLE#
  VARI-COLOR
  BACKGROUND
  BCOLOR
  BCOLOR2
  VCOLOR
  BRIGHTNESS
  CHECKERED?
  TRANS?
  OPACITY
  ZOOM
  GALLERY-ROW-SIZE
  GALLERY-COUNT
  GALLERY-X
  GALLERY-Y
  OLD-PAGE
  PAGE-NUMBER
  PAGES-COUNT
  TITLE-PATCH
  PAGE-LABEL-PATCH
  COLOR-LABEL-PATCH
  SORT-SHAPES
  PIXEL
  ANIMATE-START
  ANIMATE-END
  ANIMATE-FPS
  ANIMATE-FRAME
  BACK1
  BACK2
  BIG-SAMPLE
  NETLOGO-SHAPES
  NETLOGO-LIBRARY-SHAPES
]

BREED [ SAMPLES   SAMPLE   ]
BREED [ BACKDROPS BACKDROP ]
BREED [ PREVIEWS  PREVIEW  ]
BREED [ HALOS     HALO     ]

SAMPLES-OWN [ MY-HALO   IDX  ]
HALOS-OWN   [ MY-SAMPLE ]

TO-REPORT UPPERCASE [ STRING ]
  SET STRING (WORD STRING)
  ;; CHARACTERS IN APPROX ENGLISH USAGE FREQUENCY ORDER
  LET UPP "ETAOINSHRDLCUMWFGYPBVKJXQZ"
  LET LOW "etaoinshrdlcumwfgypbvkjxqz"
  FOREACH RANGE LENGTH STRING
  [ I ->
    LET N POSITION (ITEM I STRING) LOW
    IF N != FALSE
    [ SET STRING REPLACE-ITEM I STRING (ITEM N UPP)
    ]
  ]
  REPORT STRING
END

TO-REPORT LOWERCASE [ STRING ]
  SET STRING (WORD STRING)
  ;; CHARACTERS IN APPROX ENGLISH USAGE FREQUENCY ORDER
  LET UPP "ETAOINSHRDLCUMWFGYPBVKJXQZ"
  LET LOW "etaoinshrdlcumwfgypbvkjxqz"
  FOREACH RANGE LENGTH STRING
  [ I ->
    LET N POSITION (ITEM I STRING) UPP
    IF N != FALSE
    [ SET STRING REPLACE-ITEM I STRING (ITEM N LOW)
    ]
  ]
  REPORT STRING
END


TO SETUP-WORLD
  SET GALLERY-ROW-SIZE 10
  SET GALLERY-COUNT GALLERY-ROW-SIZE * GALLERY-ROW-SIZE
  RESIZE-WORLD 0 (GALLERY-ROW-SIZE * 4 - 1) 0 (GALLERY-ROW-SIZE * 2) + 3
  SET-PATCH-SIZE 25
  SET PIXEL (1 / PATCH-SIZE)
  SET GALLERY-X MAX-PXCOR - (2 * GALLERY-ROW-SIZE) + 1
  SET GALLERY-Y MAX-PYCOR - 3
END

TO SETUP-GLOBALS
  SET SORT-SHAPES MAP LOWERCASE SORT SHAPES
  SET NETLOGO-SHAPES GET-NETLOGO-SHAPES
  SET NETLOGO-LIBRARY-SHAPES GET-NETLOGO-LIBRARY-SHAPES
  SET PAGES-COUNT 1 + INT (LENGTH SHAPES / GALLERY-COUNT)
  SET VARI-COLOR  GRAY
  SET BACKGROUND BLACK
  SET CHECKERED?  TRUE
  SET TRANS?     FALSE
  SET OPACITY        0
  SET BRIGHTNESS    20
  SET ZOOM         100
  SET SAMPLE#        0
  SET ANIMATE-START  0
  SET ANIMATE-END    0
  SET ANIMATE-FPS    4
  SET ANIMATE-FRAME  0
  SET BIG-SAMPLE NOBODY
  SET GALLERY-X  MIN-PXCOR + WORLD-WIDTH / 2
  SET GALLERY-Y  MAX-PYCOR - 3
  SET TITLE-PATCH PATCH (MIN-PXCOR) (MAX-PYCOR)
  SET PAGE-LABEL-PATCH PATCH (GALLERY-X - 2) (MAX-PYCOR)
  SET COLOR-LABEL-PATCH PATCH (MIN-PXCOR + 1) (MIN-PYCOR + 3)
END

TO SET-PAGE [ N ]
  SET OLD-PAGE PAGE-NUMBER
  SET PAGE-NUMBER MIN (LIST PAGES-COUNT MAX (LIST 0 N) )
  SET SAMPLE# PAGE-NUMBER * GALLERY-COUNT
  ASK SAMPLES [ SET HEADING 0 ]
  SET-TEXT PAGE-LABEL-PATCH (WORD "PAGE " (PAGE-NUMBER + 1)" OF " PAGES-COUNT " - " LENGTH SHAPES " SHAPES")
  SHOW-PREVIEW SAMPLE#
END

TO SHOW-PREVIEW [ N ]
  SET SAMPLE# N MOD LENGTH SHAPES
  LET NEW-PAGE INT (SAMPLE# / GALLERY-COUNT)
  IF NEW-PAGE != PAGE-NUMBER
  [ SET-PAGE NEW-PAGE
    STOP
  ]

  LET PREVIEW-SIZE (MIN LIST WORLD-WIDTH WORLD-HEIGHT) - 6
  IF NOT ANY? BACKDROPS
  [ CREATE-BACKDROPS 1
    [ HOME
      SET HEADING 0
      SET SIZE PREVIEW-SIZE
      LET CX MIN-PXCOR - .5 + SIZE / 2 + 1
      LET CY MIN-PYCOR - .5 + (WORLD-HEIGHT / 2)
      SETXY CX CY
      SET BACK1 SELF
      HATCH-BACKDROPS 1 [ SET BACK2      SELF ]
      HATCH-PREVIEWS  1 [ SET BIG-SAMPLE SELF ]
    ]
  ]
  SET ZOOM MAX (LIST 5 MIN (LIST 200 ZOOM))
  SET BACKGROUND BACKGROUND MOD 15
  SET VARI-COLOR VARI-COLOR MOD 17
  SET VCOLOR 0
  (
    IFELSE
    ( VARI-COLOR = 0 ) [ SET VCOLOR BLACK ]
    ( VARI-COLOR = 1 ) [ SET VCOLOR GRAY  ]
    ( VARI-COLOR = 2 ) [ SET VCOLOR WHITE ]
    [ SET VCOLOR 15 + 10 * ( VARI-COLOR - 2 ) ]
  )
  IF ( TRANS? )
  [ SET OPACITY 1 + ( ( OPACITY - 1 ) MOD 9 )
    SET VCOLOR LPUT INT ( 25.5 * OPACITY ) EXTRACT-RGB VCOLOR
  ]
  SET BRIGHTNESS BRIGHTNESS MOD 100
  SET BCOLOR SCALE-COLOR ( 5 + 10 * BACKGROUND )  BRIGHTNESS 0 100
  SET BCOLOR2 BCOLOR
  IF ( CHECKERED? ) [ SET BCOLOR BLACK ]
  SET-TEXT COLOR-LABEL-PATCH ( WORD "\n" "COLOR: " VCOLOR ", PCOLOR: " BCOLOR2 ",  ZOOM: " ZOOM "%" )
  ASK BACK1 [ SET SHAPE "SQUARE"       SET COLOR BCOLOR  ]
  ASK BACK2 [ SET SHAPE "CHECKS SMALL" SET COLOR BCOLOR2 ]
  ASK BIG-SAMPLE
  [
    SET SIZE PREVIEW-SIZE * ( ZOOM / 100 )
    SET SHAPE ITEM SAMPLE# SORT-SHAPES
    SET COLOR VCOLOR
    SET-TEXT TITLE-PATCH ( WORD "NETLOGO SHAPE LIBRARY VIEWER -- \"" SHAPE "\"")
  ]
  DISPLAY-SAMPLES
END

TO SETUP-SAMPLES
  LET OFFSET COUNT TURTLES
  ;; WITHOUT-INTERRUPTION
  ;; [
    CREATE-SAMPLES GALLERY-COUNT
    [ SET IDX WHO - OFFSET
      LET X GALLERY-X + 2 * (IDX MOD GALLERY-ROW-SIZE)
      LET Y GALLERY-Y - 2 * INT (IDX / GALLERY-ROW-SIZE)
      SET SHAPE "SQUARE"
      SET HEADING 0
      SET COLOR PCOLOR + 1
      SET SIZE 40 * PIXEL
      SETXY X Y
      ;; SHOW (WORD "X: " X "  Y: " Y )
    ;; ]
    ASK SAMPLES
    [
      HATCH-HALOS 1
      [ SET SHAPE "BLANK"
        SET COLOR WHITE
        SET SIZE 48 * PIXEL
        SET MY-SAMPLE MYSELF
        ASK MYSELF [ SET MY-HALO MYSELF ]
        HIDE-TURTLE
      ]
    ]
  ]
  SET OLD-PAGE -1
END

TO DISPLAY-SAMPLES
  IF NOT ANY? SAMPLES
  [ SETUP-SAMPLES ]
  IF OLD-PAGE != PAGE-NUMBER
  [ ;; UPDATE SHAPE IMAGES
    SET OLD-PAGE PAGE-NUMBER
    ASK SAMPLES
    [ LET SHAPE-NUM PAGE-NUMBER * GALLERY-COUNT + IDX
      ;; HIDE SAMPLE IF NO SHAPE (SAMPLE# IS BEYOND SHAPE LIST)
      ;; SHOW SHAPE-NUM
      IFELSE SHAPE-NUM >= LENGTH SHAPES
      [ SET SHAPE "BLANK"
        SET COLOR PCOLOR + 1
        HIDE-TURTLE
        ASK MY-HALO [ SET SHAPE "BLANK" SET COLOR WHITE HIDE-TURTLE ]
      ]
      [
        ;; ASSIGN SHAPE
        SET SHAPE ITEM SHAPE-NUM SORT-SHAPES
        SHOW-TURTLE
      ]
    ]
  ]
  ;; UPDATE COLORS AND HALOS
  ASK SAMPLES
  [
    SET COLOR VCOLOR
    LET NEW-HALO "BLANK"
    (IFELSE
      (SHAPE = [ SHAPE ] OF BIG-SAMPLE)
      [ SET NEW-HALO "SQUARE OPEN THICK" ]
      ( MEMBER? SHAPE NETLOGO-LIBRARY-SHAPES)
      [ SET NEW-HALO "SQUARE OPEN THIN" ]
      []
    )
    ASK MY-HALO
    [ SET SHAPE NEW-HALO
      SET COLOR WHITE
      SET HIDDEN? SHAPE = "BLANK"
    ]
  ]
END

TO SET-TEXT [ LOCATION TEXT ]
  LET JOIN [STRINGS -> WORD "\n" (REDUCE [ [ A B ] -> ( WORD A "\na" B ) ] ( SENTENCE STRINGS ) ) ]
  ASK LOCATION [ SET PLABEL ( RUN-RESULT JOIN TEXT ) ]
END

TO-REPORT TRIANGLE-WAVE [ X ]
  REPORT 2 * ABS( 2 * ( X - FLOOR( X + 0.5  ) ) ) - 1
END

TO-REPORT SAWTOOTH-WAVE [ X ]
  REPORT 2 * ( X - 0.5 - FLOOR X )
END

TO-REPORT SQUARE-WAVE [ X ]
  REPORT 2 * (2 * (FLOOR X) - (FLOOR (2 * X)) ) + 1
END

TO-REPORT SINE-WAVE [ X ]
  REPORT SIN (X * 360 )
END

TO-REPORT DC [ X ]
  REPORT (1 + X) / 2
END

TO ANIMATE
  SET ANIMATE-FPS FPS
  LET FRAME 1 + ANIMATE-END - ANIMATE-START
  IF FRAME = 0 [ SET FRAME 1 ]
  LET T (TIMER / FRAME * ANIMATE-FPS)
  IFELSE BOUNCE
  [ SET ANIMATE-FRAME FRAME * DC TRIANGLE-WAVE T ]
  [ SET ANIMATE-FRAME FRAME * DC SAWTOOTH-WAVE T ]
  SET ANIMATE-FRAME MIN LIST FRAME MAX LIST 0 ANIMATE-FRAME
  ASK BIG-SAMPLE [ SET SHAPE ITEM (ANIMATE-START + ANIMATE-FRAME) SORT-SHAPES ]
END

TO-REPORT GET-NETLOGO-SHAPES
  REPORT MAP LOWERCASE (LIST
    "AIRPLANE" "ARROW" "BOX" "BUG" "BUTTERFLY" "CAR"
    "CIRCLE" "CIRCLE 2" "COW" "CYLINDER" "DOT"
    "FACE HAPPY" "FACE NEUTRAL" "FACE SAD"
    "FISH" "FLAG" "FLOWER" "HOUSE" "LEAF" "LINE" "LINE HALF"
    "PENTAGON" "PERSON" "PLANT" "SHEEP" "SQUARE" "SQUARE 2"
    "STAR" "TARGET" "TREE" "TRIANGLE" "TRIANGLE 2" "TRUCK"
    "TURTLE" "WHEEL" "WOLF" "X")
END

TO-REPORT GET-NETLOGO-LIBRARY-SHAPES
  REPORT MAP LOWERCASE
  (LIST
;   567890123456789=123456789012345678901234567890123456789012345678901234567890
    "ACORN" "AIRPLANE 2" "AMBULANCE" "ANT" "ANT 2" "APPLE" "ARROW 2" "ARROW 3"
    "BALL BASEBALL" "BALL BASKETBALL" "BALL FOOTBALL" "BALL TENNIS" "BALLOON"
    "BALLPIN" "BANANA" "BEE" "BEE 2" "BIKE" "BIRD" "BIRD 2" "BIRD 3" "BIRD SIDE"
    "BOAT" "BOAT 2" "BOAT 3" "BOAT TOP" "BOOK" "BOTTLE" "BOWLING PIN" "BOX"
    "BOX 2" "BREAD" "BUILDING INSTITUTION" "BUILDING STORE" "BULLDOZER TOP"
    "BUS" "BUTTERFLY 2" "CACTUS" "CAMPSITE" "CANNON" "CANNON CARRIAGE" "CAR SIDE"
    "CAR TOP" "CAT" "CATERPILLAR" "CHECK" "CHECKER PIECE" "CHECKER PIECE 2"
    "CHESS BISHOP" "CHESS KING" "CHESS KNIGHT" "CHESS PAWN" "CHESS QUEEN"
    "CHESS ROOK" "CLOCK" "CLOUD" "COIN HEADS" "COIN TAILS" "COMPUTER SERVER"
    "COMPUTER WORKSTATION" "CONTAINER" "COW SKULL" "CRATE" "CROWN" "DART" "DIE 1"
    "DIE 2" "DIE 3" "DIE 4" "DIE 5" "DIE 6" "DOG" "DOLLAR BILL" "DROP" "EGG"
    "ELECTRIC OUTLET" "EMBLEM" "EXCLAMATION" "EYEBALL" "FACTORY" "FIRE"
    "FIRE DEPARTMENT" "FISH 2" "FISH 3" "FLOWER BUDDING" "FOOD" "FOOTPRINT HUMAN"
    "FOOTPRINT OTHER" "FROG TOP" "GARBAGE CAN" "GHOST" "HAWK" "HEX"
    "HEXAGONAL PRISM" "HOUSE BUNGALOW" "HOUSE COLONIAL" "HOUSE EFFICIENCY"
    "HOUSE RANCH" "HOUSE TWO STORY" "I BEAM" "KEY" "LANDER" "LANDER 2" "LEAF 2"
    "LETTER OPENED" "LETTER SEALED" "LIGHTNING" "LILY PAD" "LINK" "LOGS" "MAGNET"
    "MAMMOTH" "MOLECULE HYDROGEN" "MOLECULE OXYGEN" "MOLECULE WATER" "MONSTER"
    "MOON" "MOOSE" "MOOSE-FACE" "MORTAR PESTLE" "MOUSE SIDE" "MOUSE TOP"
    "MUSIC NOTES 1" "MUSIC NOTES 2" "MUSIC NOTES 3" "ORBIT 1" "ORBIT 2" "ORBIT 3"
    "ORBIT 4" "ORBIT 5" "ORBIT 6" "PAINTBRUSH" "PENCIL" "PERSON BUSINESS"
    "PERSON CONSTRUCTION" "PERSON DOCTOR" "PERSON FARMER" "PERSON GRADUATE"
    "PERSON LUMBERJACK" "PERSON POLICE" "PERSON SERVICE" "PERSON SOLDIER"
    "PERSON STUDENT" "PETALS" "PLANT MEDIUM" "PLANT SMALL" "POLICE" "PUMPKIN"
    "PUSHPIN" "RABBIT" "ROCKET" "SAILBOAT SIDE" "SHARK" "SHEEP 2" "SPIDER"
    "SPINNER" "SQUIRREL" "STRAWBERRY" "SUIT CLUB" "SUIT DIAMOND" "SUIT HEART"
    "SUIT SPADE" "SUN" "TANK" "TELEPHONE" "TILE BRICK" "TILE LOG" "TILE STONES"
    "TILE WATER" "TOOTH" "TRAIN" "TRAIN FREIGHT BOXCAR" "TRAIN FREIGHT ENGINE"
    "TRAIN FREIGHT HOPPER EMPTY" "TRAIN FREIGHT HOPPER FULL" "TRAIN PASSENGER CAR"
    "TRAIN PASSENGER ENGINE" "TRAIN SWITCHER ENGINE" "TREE PINE" "TRUCK CAB ONLY"
    "TRUCK CAB TOP" "TURTLE 2" "UFO SIDE" "UFO TOP" "VAN SIDE" "VAN TOP" "WARNING"
    "WOLF 2" "WOLF 3" "WOLF 4" "WOLF 5" "WOLF 6" "WOLF 7"
  )
END

TO _SETUP
  CA
  SETUP-WORLD
  SETUP-GLOBALS
  SET-TEXT TITLE-PATCH "NETLOGO SHAPE LIBRARY VIEWER"
  SET-PAGE 0
  ;; SETUP-SAMPLES
  SHOW-PREVIEW 0
END

TO STARTUP _SETUP END

TO SETUP STARTUP END

TO GO END
