Atmospheric Dispersion model
Model was written in NetLogo 6.4.0
•
Viewed 76 times
•
Downloaded 1 time
•
Run 0 times
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Info tab cannot be displayed because of an encoding error
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
rays-own [initial-heading] breed [simulated-rays simulated-ray] breed [rays ray] globals [red_em blue_em green_em red_rec blue_rec green_rec test-list] ;;; HELPER PROCEDURES to-report is-scattered [t_color] ;; gives scattering probability as a function of the light ray color let probability (ifelse-value t_color = blue [base_probability] t_color = green [base_probability / 1.8] t_color = red [base_probability / 4.6] [0]) report (random-float 100 <= probability) end to-report scatter-angle ;; Rayleigh scattering has a scattering probability proportional to cos(theta)^2 let which_sign random 2 let sign (ifelse-value which_sign = 0 [ -1 ] which_sign = 1 [ 1 ] ) report ((acos (sign * sqrt(random-float 1))) * 2) - 90 end to-report is-oob [y] ;; check if the y coordinate is out of bounds ;; returns 1 if reached the top of the simulation (escaped the atmosphere) ;; returns 2 if collided with the ground ;; returns 0 if no collisions if y > max-pycor - 0.5 [report 1] if y < min-pycor + 0.5 [report 2] report 0 end to-report check-sun-collision [exit-angle] ;; Checks if the exit-angle is within the sun's diameter if exit-angle > 180 [set exit-angle (exit-angle - 360)] report ( (exit-angle > sun_angle - sun_diameter / 2 ) and (exit-angle < sun_angle + sun_diameter / 2 ) ) end to-report get-index [angle] ;; For a given angle, gets the index of the cone bin if angle > 180 [set angle (angle - 360)] set angle (angle + 90) report floor(angle / 180 * division-factor) end to-report get-color [red_emitted red_received green_emitted green_received blue_emitted blue_received] ;; yields an rgb vector of the color corresponding to the fraction of emitted and received rays ifelse relative-gain? [ let multiplier max rgb (red_received / red_emitted) (green_received / green_emitted) (blue_received / blue_emitted) ifelse multiplier = 0 [report rgb 0 0 0] [ let new-gain (relative-gain / 100) * (255 / multiplier) report rgb (new-gain * red_received / red_emitted) (new-gain * green_received / green_emitted) (new-gain * blue_received / blue_emitted) ] ] [report rgb (gain * red_received / red_emitted) (gain * green_received / green_emitted) (gain * blue_received / blue_emitted)] end ;;; SETUP PROCEDURES to setup clear-all setup-rays setup-atmosphere setup-simulated-rays setup-counters reset-ticks end to setup-rays ;; setup the rays with random colour and direction set-default-shape rays "line" create-rays n_rays [setxy 0 min-pycor + 1] ask rays [ let choice random 3 set color (ifelse-value who mod 3 = 0 [ red ] who mod 3 = 1 [ blue ] who mod 3 = 2 [ green ]) set heading (random-float 180) - 90 set initial-heading heading ] end to setup-counters ;; setup counters for emitted and received rays of each colours, one counter for each bin of sky set red_em (n-values division-factor [1]) set green_em (n-values division-factor [1]) set blue_em (n-values division-factor [1]) set red_rec (n-values division-factor [1]) set green_rec (n-values division-factor [1]) set blue_rec (n-values division-factor [1]) end to setup-simulated-rays ;; setup simulated rays with the calculated colours set-default-shape simulated-rays "line" let tot 180 * 3 create-simulated-rays tot [setxy 0 min-pycor + 1] ask simulated-rays [ set hidden? true set heading (((who - n_rays) * 180 / tot) - 90) set size 2 set pen-mode "down" set pen-size 2 ] end ;;; LOOP PROCEDURES to increment-color-counter [escaped init-heading escape-heading tcolor] ;; increment colour of the correct bin for a ray of color tcolor and initial and escape heading let index get-index init-heading ( ifelse tcolor = red [set red_em replace-item index red_em (item index red_em + 1)] tcolor = blue [set blue_em replace-item index blue_em (item index green_em + 1)] tcolor = green [set green_em replace-item index green_em (item index green_em + 1)] ) if escaped and (check-sun-collision escape-heading) [ ( ifelse tcolor = red [set red_rec replace-item index red_rec (item index red_rec + 1)] tcolor = blue [set blue_rec replace-item index blue_rec (item index green_rec + 1)] tcolor = green [set green_rec replace-item index green_rec (item index green_rec + 1)] ) ] end to setup-atmosphere ask patches [ ifelse pycor + max-pycor < 2 * max-pycor * atmosphere_height / 100 [ set pcolor blue + 3.5 ] [ set pcolor black] ] end to go ;; flow control of what to display and what to compute move-rays if-else draw-path [ask rays [pen-down]] [ask rays [pen-up]] setup-atmosphere ifelse show-result? [ set draw-path false ask rays [set hidden? true] ask simulated-rays [ set hidden? false set pen-mode "down" get-simulated-color ] move-simulated-rays ] [ ask rays [set hidden? false] ask simulated-rays [ set hidden? true set pen-mode "up" ] clear-drawing ] tick end to reset-ray set pen-mode "up" set xcor 0 set ycor min-pycor + 1 set heading (random-float 180) - 90 set initial-heading heading if draw-path [set pen-mode "down"] end to move-rays ;; move and scatter r ask rays [ if pcolor != black [ if is-scattered color [ right (heading + scatter-angle) ] ] forward light_path let oob is-oob ycor ;; escaped the atmosphere if oob = 1 [ increment-color-counter true initial-heading heading color reset-ray ] ;; collided with ground if oob = 2 [ increment-color-counter true initial-heading heading color reset-ray ] ] end to get-simulated-color ask simulated-rays [ let index get-index heading set color get-color (item index red_em) (item index red_rec) (item index green_em) (item index green_rec) (item index blue_em) (item index blue_rec) ] end to move-simulated-rays ask simulated-rays [ foreach (n-values 50 [1]) [ forward 0.1 if ((xcor < min-pxcor + 0.05) or (xcor > max-pxcor - 0.05) or (ycor > max-pycor - 0.05) ) [setxy 0 min-pycor + 1] ] ] end
There is only one version of this model, created 7 months ago by A Bedouch.
Attached files
File | Type | Description | Last updated | |
---|---|---|---|---|
Atmospheric Dispersion model.png | preview | Preview for 'Atmospheric Dispersion model' | 7 months ago, by A Bedouch | Download |

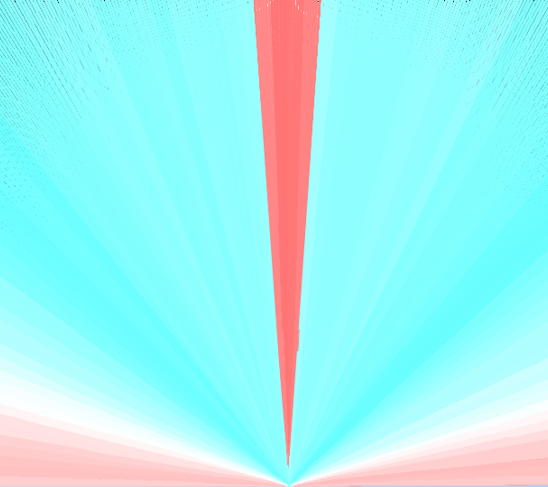

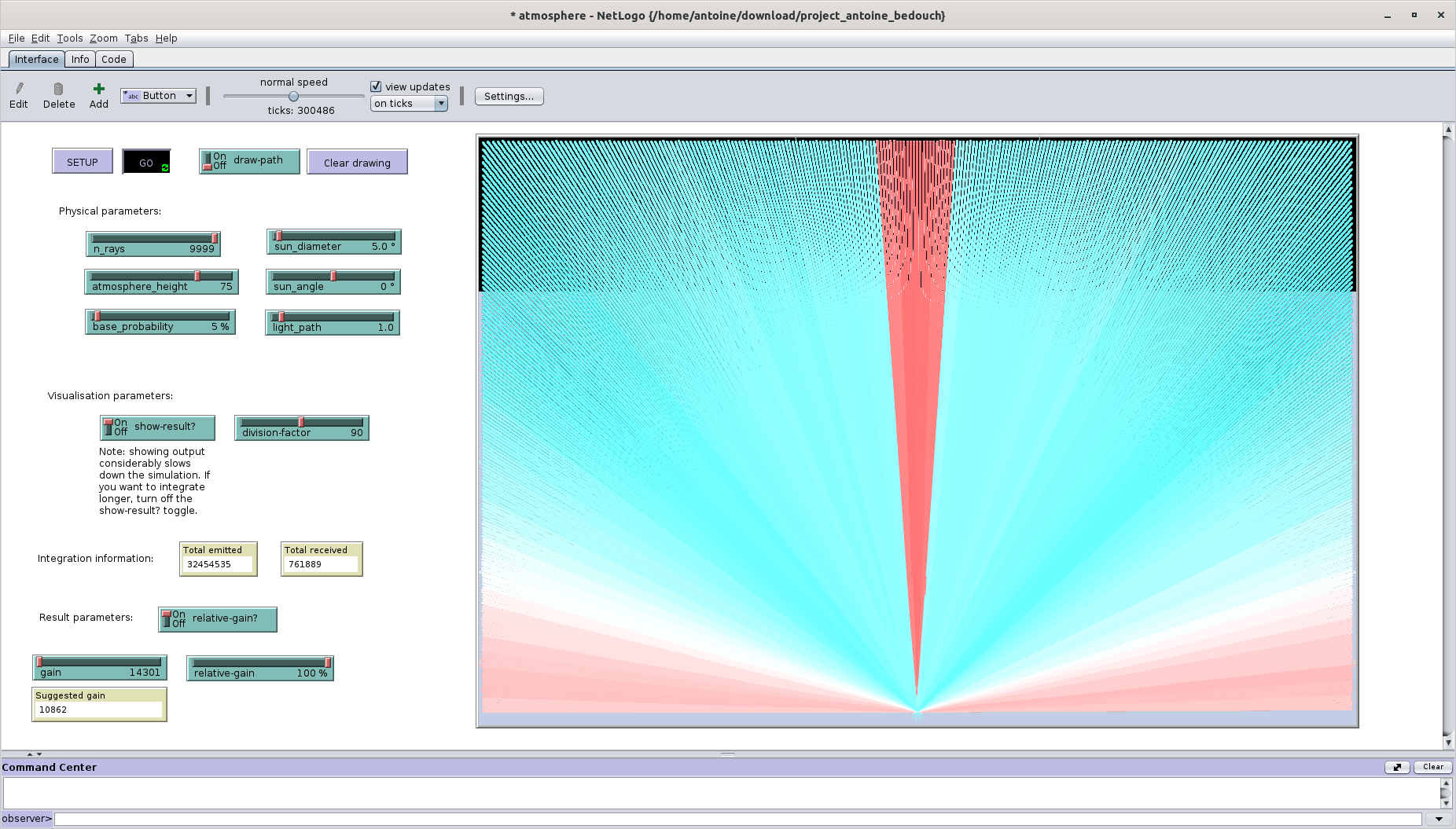

example.png | png | example output | 7 months ago, by A Bedouch | Download |

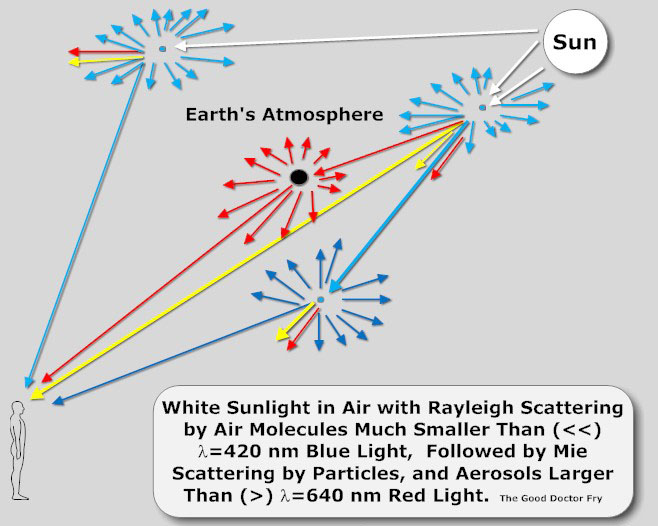

rayleigh.jpg | png | physics principle illustration | 7 months ago, by A Bedouch | Download |
