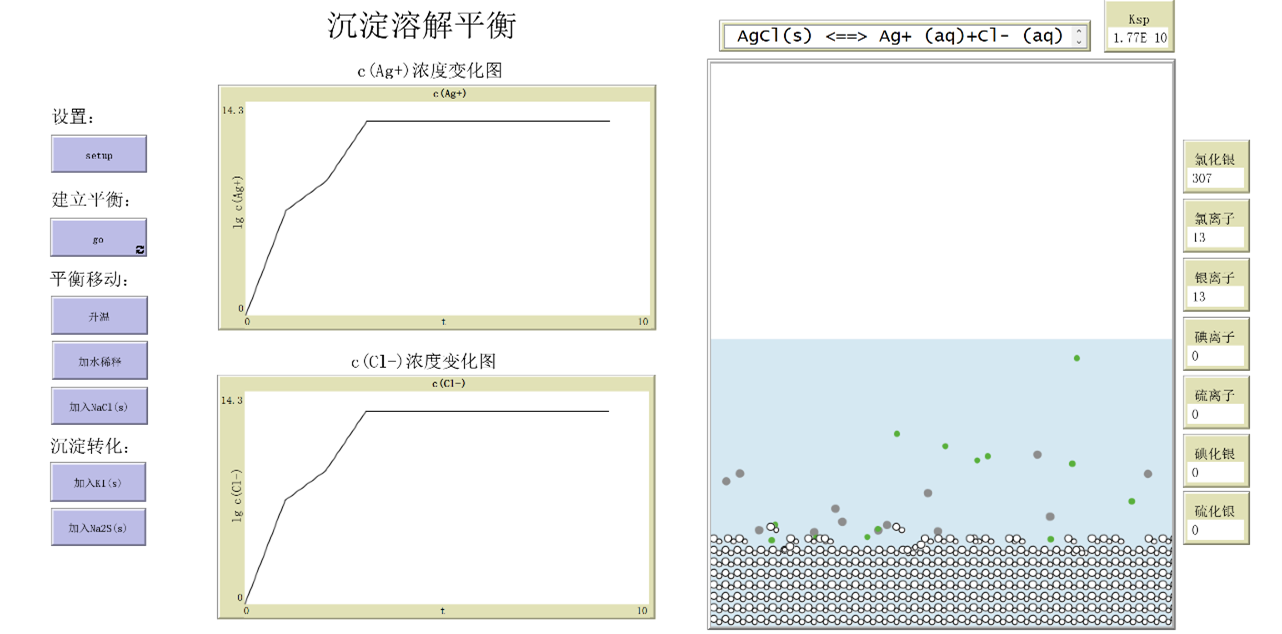

沉淀溶解平衡

; Li Ying created this module at Shaanxi Normal University in 2024. If you mention this model in a publication, we ask that you include the citations below.
;Ying, L. (2024). Precipitation Dissolution Equilibrium. School of Chemistry and Chemical Engineering, Shaanxi Normal University.
breed [mode8_ag_t  mode8_ag]
breed [mode8_cl_t mode8_cl]
breed [mode8_i_t mode8_i]
breed [mode8_s_t mode8_s]
breed [mode8_ag2s_t mode8_ag2s]
breed [mode8_agi_t mode8_agi]
breed [mode8_agcl_t mode8_agcl]


globals[
  Ksp_agcl
  dissolution_flag_agcl
  Precipitation_flag_agcl
  dissolution_flag_agi
  Precipitation_flag_agi
  dissolution_flag_ag2s
  Precipitation_flag_ag2s
  y
  y_agcl
  total_cl
  total_i
  total_s
]

to setup
  clear-all
  output-print " AgCl(s) <==> Ag+ (aq)+Cl- (aq)"
  ;设置画布颜色
  ask patches with [pycor < 1] [
    set pcolor sky + 4
  ]
  ask patches with [pycor > 0] [
    set pcolor white
  ]

  ;;初始化海龟
  set-default-shape mode8_ag_t  "ag"
  set-default-shape mode8_cl_t  "cl"
  set-default-shape mode8_i_t  "i"
  set-default-shape mode8_s_t "s"
  set-default-shape mode8_ag2s_t  "ag2s"
  set-default-shape mode8_agi_t   "agi"
  set-default-shape mode8_agcl_t  "agcl"

  ;;初始化turtle
  let total-mode8_agcl_t 320  ; 总共海龟的数量
  let rows 8  ; 行数
  let columns 40  ; 列数
  let distance-between-turtles 1  ; 海龟之间的间隔
  let current-turtle 0
  let row 0
  while [row < rows] [
    let column 0
    while [column < columns] [
      create-mode8_agcl_t 1 [
        setxy column * distance-between-turtles row * distance-between-turtles - 24
        set size 1.8
        set heading 30  ; 设置海龟的朝向为右侧（0°）
      ]
      set column column + 1
      set current-turtle current-turtle + 1
    ]
    set row row + 1
  ]
  set dissolution_flag_agcl 0
  set Precipitation_flag_agcl 0
  set y 0
  set total_cl 13
  set y_agcl -17
  reset-ticks
end

to go

  set Ksp_agcl (1.77 * 10 ^ (-10))
  Precipitation_dissolution_agcl
  Precipitation_dissolution_agi
  Precipitation_dissolution_ag2s
  ask mode8_ag_t [
    ; 随机选择运动距离和角度
    let distance_ag 2

    ifelse (ycor > -17) and (ycor < (y - 1)) and (xcor > -19) and (xcor < 19) [
      set heading random 360
    ][
      ; 左边墙
      ifelse (xcor < -19) [
        set heading 90
      ][]
      ; 右边墙
      ifelse (xcor > 19) [
        set heading 270
      ][]
      ; 下面墙
      ifelse (ycor < -17) [
        set heading 0
      ][]
      ; 上面墙
      ifelse (ycor > (y - 1)) [
        set heading 180
      ][]
      ; 左上角
      ifelse (xcor <= -19) and (ycor >= (y - 1)) [
        set heading 135
      ][]
      ; 右上角
      ifelse (xcor >= 19) and (ycor >= (y - 1)) [
        set heading  315
      ][]
      ; 左下角
      ifelse (xcor <= -19) and (ycor <= -17) [
        set heading 45
      ][]
      ; 右下角
      ifelse (xcor >= 19) and (ycor <= -17) [
        set heading 225
      ][]
    ]
    fd 1
  ]
  ask mode8_cl_t [
    ; 随机选择运动距离和角度
    let distance_cl 2

    ifelse (ycor > -17) and (ycor < (y - 1)) and (xcor > -19) and (xcor < 19) [
      set heading random 360
    ][
      ; 左边墙
      ifelse (xcor < -19) [
        set heading 90
      ][]
      ; 右边墙
      ifelse (xcor > 19) [
        set heading 270
      ][]
      ; 下面墙
      ifelse (ycor < -17) [
        set heading 0
      ][]
      ; 上面墙
      ifelse (ycor > (y - 1)) [
        set heading 180
      ][]
      ; 左上角
      ifelse (xcor <= -19) and (ycor >= (y - 1)) [
        set heading 135
      ][]
      ; 右上角
      ifelse (xcor >= 19) and (ycor >= (y - 1)) [
        set heading  315
      ][]
      ; 左下角
      ifelse (xcor <= -19) and (ycor <= -17) [
        set heading 45
      ][]
      ; 右下角
      ifelse (xcor >= 19) and (ycor <= -17) [
        set heading 225
      ][]
    ]
    fd 1
  ]
  ask mode8_i_t [
    ; 随机选择运动距离和角度
    let distance_ag 2

    ifelse (ycor > -17) and (ycor < (y - 1)) and (xcor > -19) and (xcor < 19) [
      set heading random 360
    ][
      ; 左边墙
      ifelse (xcor < -19) [
        set heading 90
      ][]
      ; 右边墙
      ifelse (xcor > 19) [
        set heading 270
      ][]
      ; 下面墙
      ifelse (ycor < -17) [
        set heading 0
      ][]
      ; 上面墙
      ifelse (ycor > (y - 1)) [
        set heading 180
      ][]
      ; 左上角
      ifelse (xcor <= -19) and (ycor >= (y - 1)) [
        set heading 135
      ][]
      ; 右上角
      ifelse (xcor >= 19) and (ycor >= (y - 1)) [
        set heading  315
      ][]
      ; 左下角
      ifelse (xcor <= -19) and (ycor <= -17) [
        set heading 45
      ][]
      ; 右下角
      ifelse (xcor >= 19) and (ycor <= -17) [
        set heading 225
      ][]
    ]
    fd 1
  ]
  ask mode8_s_t [
    ; 随机选择运动距离和角度
    let distance_ag 2

    ifelse (ycor > -17) and (ycor < (y - 1)) and (xcor > -19) and (xcor < 19) [
      set heading random 360
    ][
      ; 左边墙
      ifelse (xcor < -19) [
        set heading 90
      ][]
      ; 右边墙
      ifelse (xcor > 19) [
        set heading 270
      ][]
      ; 下面墙
      ifelse (ycor < -17) [
        set heading 0
      ][]
      ; 上面墙
      ifelse (ycor > (y - 1)) [
        set heading 180
      ][]
      ; 左上角
      ifelse (xcor <= -19) and (ycor >= (y - 1)) [
        set heading 135
      ][]
      ; 右上角
      ifelse (xcor >= 19) and (ycor >= (y - 1)) [
        set heading  315
      ][]
      ; 左下角
      ifelse (xcor <= -19) and (ycor <= -17) [
        set heading 45
      ][]
      ; 右下角
      ifelse (xcor >= 19) and (ycor <= -17) [
        set heading 225
      ][]
    ]
    fd 1
  ]
  tick
end

to Precipitation_dissolution_agcl
  ;溶解-ancl
  if dissolution_flag_agcl = 0[
    let temp_number_agcl count mode8_ag_t
    let turtle_xys []
    if temp_number_agcl < total_cl[
      if count turtles with [breed = mode8_agcl_t and ycor = y_agcl] = 0[
        set y_agcl ( y_agcl - 1)
      ]
      let mode8_agcl_t_molecule one-of turtles with [breed = mode8_agcl_t and ycor = y_agcl]
      ;;将一个agcl分子变成ag + cl
      ask mode8_agcl_t_molecule [
        let xys list xcor ycor  ; 创建一个包含当前乌龟坐标对的列表
        set turtle_xys lput xys turtle_xys  ; 将当前乌龟的坐标对添加到列表中
        set breed mode8_ag_t
        set size 1.8
      ];;创建一个cl
      foreach turtle_xys [
        xy ->
        create-mode8_cl_t 1 [
          setxy (item 0 xy) (item 1 xy)  ; 根据坐标对生成乌龟
          set size 1.8  ; 可根据需要设置乌龟颜色
        ]
      ]
    ]
  ]
  ;      if temp_number_agcl = total[
  ;        set dissolution_flag 1
  ;      ]

  ;沉淀-agcl
  if Precipitation_flag_agcl = 0[
    if ticks mod 50 = 0 [
      ask mode8_ag_t [
        let meeting-mode8_cl_t mode8_cl_t in-radius 1
        if count meeting-mode8_cl_t > 0 [
          ; 在半径2的范围内相遇时，创建新的turtle
          let turtles-here-mode8_ag_t turtles with [breed = mode8_ag_t]
          let turtles-here-mode8_cl_t turtles with [breed = mode8_cl_t]
          let turtle_mode8_ag_t one-of turtles-here-mode8_ag_t in-radius 1
          let turtle_mode8_cl_t one-of turtles-here-mode8_cl_t in-radius 1
          if turtle_mode8_ag_t != nobody and turtle_mode8_cl_t != nobody [
            if count mode8_ag_t > 2[
              ask turtle_mode8_ag_t [
                set breed mode8_agcl_t
                set size 1.8
              ]
              ask mode8_agcl_t [
                if ycor > y_agcl [
                  let rounded_ycor round ycor
                  set rounded_ycor rounded_ycor - 1
                  set heading 30  ;; 向下移动一个单位
                  set ycor rounded_ycor
                ]
              ]
              ; 删除原来的mode8_cl_t turtle
              ask turtle_mode8_cl_t [
                die
              ]
            ]
          ]
        ]
      ]
    ]
  ]
end

to up_T
  set Ksp_agcl (2150 * 10 ^ (-12))
  set total_cl 46
end

to add_water
  ;设置画布颜色
  ask patches with [pycor < 14] [
    set pcolor sky + 4
  ]
  ask patches with [pycor > 13] [
    set pcolor white
  ]
  set total_cl 20
end

to add_NaCl
  create-mode8_cl_t 18 [
    let random-xcor-xcor random 36 - 18
    let random-ycor-ycor random -16 - 1
    setxy random-xcor-xcor random-ycor-ycor
    set size 1.8  ; 设置海龟大小
  ]
  set total_cl 7
end

to add_KI
  create-mode8_i_t 20 [
    let random-xcor-xcor random 36 - 18
    let random-ycor-ycor random -16 - 1
    setxy random-xcor-xcor random-ycor-ycor
    set size 1.8  ; 设置海龟大小
  ]
  set total_i 5
  set Precipitation_flag_agi 1
  set dissolution_flag_agi  1
  set Precipitation_flag_agcl 1
end

to Precipitation_dissolution_agi
  if ticks mod 2 = 0 [
    ;沉淀-agi
    if Precipitation_flag_agi = 1[
      ask mode8_ag_t [
        let meeting-mode8_i_t mode8_i_t in-radius 1
        if count meeting-mode8_i_t > 0 [
          ; 在半径2的范围内相遇时，创建新的turtle
          let turtles-here-mode8_ag_t turtles with [breed = mode8_ag_t]
          let turtles-here-mode8_i_t turtles with [breed = mode8_i_t]
          let turtle_mode8_ag_t one-of turtles-here-mode8_ag_t in-radius 1
          let turtle_mode8_i_t one-of turtles-here-mode8_i_t in-radius 1
          if turtle_mode8_ag_t != nobody and turtle_mode8_i_t != nobody [
            if count mode8_ag_t > 2[
              ask turtle_mode8_ag_t [
                set breed mode8_agi_t
                set size 1.8
              ]
              ask mode8_agi_t [
                if ycor > -17 [
                  let rounded_ycor round ycor
                  set rounded_ycor rounded_ycor - 1
                  set ycor rounded_ycor
                  set heading 30  ;; 向下移动一个单位
                ]
              ]
              ; 删除原来的mode8_i_t turtle
              ask turtle_mode8_i_t [
                die
              ]
            ]
          ]
        ]
      ]
    ]
    let temp_number_agi count mode8_i_t
    let turtle_xys []
    if temp_number_agi < total_i[
      ;溶解-agi
      if dissolution_flag_agi = 1[
        let mode8_agi_t_molecule one-of turtles with [breed = mode8_agi_t]
        ;;将一个agi分子变成ag + i
        ask mode8_agi_t_molecule [
          let xys list xcor ycor  ; 创建一个包含当前乌龟坐标对的列表
          set turtle_xys lput xys turtle_xys  ; 将当前乌龟的坐标对添加到列表中
          set breed mode8_ag_t
          set size 1.8
        ];;创建一个i
        foreach turtle_xys [
          xy ->
          create-mode8_i_t 1 [
            setxy (item 0 xy) (item 1 xy)  ; 根据坐标对生成乌龟
            set size 1.8  ; 可根据需要设置乌龟颜色
          ]
        ]
      ]
    ]
  ]
end

to add_Na2S
  create-mode8_s_t 15 [
    let random-xcor-xcor random 36 - 18
    let random-ycor-ycor random -16 - 1
    setxy random-xcor-xcor random-ycor-ycor
    set size 1.8  ; 设置海龟大小
  ]
  set total_s 2
  set total_i 2
  set Precipitation_flag_ag2s 1
  set dissolution_flag_ag2s 1
  set Precipitation_flag_agi 0
  set dissolution_flag_agi  1
end

to Precipitation_dissolution_ag2s
  if ticks mod 2 = 0 [
    let temp_number_ag2s count mode8_s_t
    let turtle_xys []
    let x_temp 0
    let y_temp 0
    if temp_number_ag2s < total_s[
      ;溶解-ag2s
      if dissolution_flag_ag2s = 1[
        let mode8_ag2s_t_molecule one-of turtles with [breed = mode8_ag2s_t]
        ;;将一个ag2s分子变成2ag + s
        ask mode8_ag2s_t_molecule [
          set x_temp xcor
          set y_temp ycor
          set breed mode8_s_t
          set size 1.8
          print count mode8_s_t
          print count mode8_ag2s_t
        ];;
        create-mode8_ag_t 2 [
          setxy x_temp y_temp  ; 根据坐标对生成乌龟
          set size 1.8  ; 可根据需要设置乌龟颜色
        ]
      ]
      print temp_number_ag2s
    ]

        ;沉淀-ag2s
    if Precipitation_flag_ag2s = 1[
      ask mode8_ag_t [
        let meeting-mode8_ag_t mode8_ag_t in-radius 1
        let meeting-mode8_s_t mode8_s_t in-radius 1
        if count meeting-mode8_ag_t >= 2 and count meeting-mode8_s_t >= 1 [
        ; 在半径2的范围内相遇时，创建新的turtle
          print count mode8_s_t
        let turtles-here-mode8_ag_t turtles with [breed = mode8_ag_t]
        let turtles-here-mode8_s_t turtles with [breed = mode8_s_t]
        let turtle_mode8_ag1_t one-of turtles-here-mode8_ag_t in-radius 1
          ask turtle_mode8_ag1_t [
            die
          ]
          let turtle_mode8_ag2_t one-of turtles-here-mode8_ag_t in-radius 1
          ask turtle_mode8_ag2_t [
            die
          ]
          let temp_mode8_s_t one-of turtles with[breed = mode8_s_t]
          ask temp_mode8_s_t[
            set breed mode8_ag2s_t
            set size 1.8
          ]
;        ask mode8_ag2s_t [
;          if ycor > -17 [
;            let rounded_ycor round ycor
;            set rounded_ycor rounded_ycor - 1
;            set ycor rounded_ycor
;            set heading 30  ;; 向下移动一个单位
;          ]
;        ]
      ]
      ]
    ]
  ]
end
